Java Edition pre-flattening data values

These data values refer to the different types of blocks and items on Java Edition before the flattening in Java Edition 1.13. They are used in many places in Minecraft. Block IDs are used to define blocks placed in the world and inventory items (including items in chests and items dropped in the world). Item IDs are only valid for items. There are also Entity IDs for entities such as mobs and projectiles. Block data further defines blocks placed, describing for example the height of water or the direction a torch points.

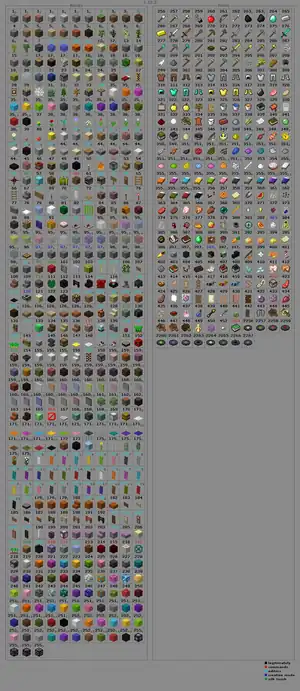

IDs

Key

I	Has a different ID as an inventory item.
D	Use the item's Damage field to define its durability.
S	Requires additional data from the saved game's Data array to fully define the block.
B	Requires additional data in the item's Damage field to fully define the inventory item.
N	Requires additional data in the item's NBT data to fully define the inventory item.
E	Requires a block entity to store additional data.
Red	Cannot be legitimately obtained. Only available using the /give command or via inventory editors.
Light Blue	Cannot be obtained as an item. (Can only be placed using block-placement commands such as /setblock or /fill.)
Blue	Available in the Creative mode inventory by item list.
Purple	Available in Creative mode by block picking.
Teal	Can be obtained by trading with villagers or in the Creative mode inventory.
Green	Only available by having Enchanted tools or in the Creative mode inventory.
Lime Green	Only available by having Enchanted tools or via use of /give or inventory editors, but unobtainable in the Creative mode inventory.
Gray	Unused data.

Horse Variants

Horse entities have variant fields that determine the markings on the horse. Below is a list of Variant values that determine the variant of horses.

	White	Creamy	Chestnut	Brown	Black	Gray	Dark Brown
None	0	1	2	3	4	5	6
White	256	257	258	259	260	261	262
White Field	512	513	514	515	516	517	518
White Dots	768	769	770	771	772	773	774
Black Dots	1024	1025	1026	1027	1028	1029	1030

Variant names taken from the names of the texture file they correspond to.

Summoning a horse entity without specifying the Variant value, or using a Variant value that is not a true ID (all true IDs are displayed on the chart above), will result in a white horse.

Biome IDs

Each type of biome has its own biome id, shown in the following table. Main biomes have a numeric ID from 0 to 127, while biome variations normally have a numeric ID of 128 + <original biome number>. Extreme Hills Edge and Frozen Ocean biomes did not generate anymore.

Icon	Dec	Hex	Resource location	Biome	Color
	0	0	minecraft:ocean	Ocean	000070
	1	1	minecraft:plains	Plains	8DB360
	2	2	minecraft:desert	Desert	FA9418
	3	3	minecraft:extreme_hills	Extreme Hills	606060
	4	4	minecraft:forest	Forest	056621
	5	5	minecraft:taiga	Taiga	0B6659
	6	6	minecraft:swampland	Swampland	07F9B2
	7	7	minecraft:river	River	0000FF
	8	8	minecraft:hell	Hell	FF0000
	9	9	minecraft:sky	The End	8080FF
	10	A	minecraft:frozen_ocean	FrozenOcean	9090A0
	11	B	minecraft:frozen_river	FrozenRiver	A0A0FF
	12	C	minecraft:ice_flats	Ice Plains	FFFFFF
	13	D	minecraft:ice_mountains	Ice Mountains	A0A0A0
	14	E	minecraft:mushroom_island	MushroomIsland	FF00FF
	15	F	minecraft:mushroom_island_shore	MushroomIslandShore	A000FF
	16	10	minecraft:beaches	Beach	FADE55
	17	11	minecraft:desert_hills	DesertHills	D25F12
	18	12	minecraft:forest_hills	ForestHills	22551C
	19	13	minecraft:taiga_hills	TaigaHills	163933
	20	14	minecraft:smaller_extreme_hills	Extreme Hills Edge	72789A
	21	15	minecraft:jungle	Jungle	537B09
	22	16	minecraft:jungle_hills	JungleHills	2C4205
	23	17	minecraft:jungle_edge	JungleEdge	628B17
	24	18	minecraft:deep_ocean	Deep Ocean	000030
	25	19	minecraft:stone_beach	Stone Beach	A2A284
	26	1A	minecraft:cold_beach	Cold Beach	FAF0C0
	27	1B	minecraft:birch_forest	Birch Forest	307444
	28	1C	minecraft:birch_forest_hills	Birch Forest Hills	1F5F32
	29	1D	minecraft:roofed_forest	Roofed Forest	40511A
	30	1E	minecraft:taiga_cold	Cold Taiga	31554A
	31	1F	minecraft:taiga_cold_hills	Cold Taiga Hills	243F36
	32	20	minecraft:redwood_taiga	Mega Taiga	596651
	33	21	minecraft:redwood_taiga_hills	Mega Taiga Hills	545F3E
	34	22	minecraft:extreme_hills_with_trees	Extreme Hills+	507050
	35	23	minecraft:savanna	Savanna	BDB25F
	36	24	minecraft:savanna_rock	Savanna Plateau	A79D64
	37	25	minecraft:mesa	Mesa	D94515
	38	26	minecraft:mesa_rock	Mesa Plateau F	B09765
	39	27	minecraft:mesa_clear_rock	Mesa Plateau	CA8C65
	127	7F	minecraft:void	The Void
	129	81	minecraft:mutated_plains	Sunflower Plains	B5DB88
	130	82	minecraft:mutated_desert	Desert M	FFBC40
	131	83	minecraft:mutated_extreme_hills	Extreme Hills M	888888
	132	84	minecraft:mutated_forest	Flower Forest	2d8e48
	133	85	minecraft:mutated_taiga	Taiga M	596651
	134	86	minecraft:mutated_swampland	Swampland M	2FFFDA
	140	8C	minecraft:mutated_ice_flats	Ice Plains Spikes	B4DCDC
	149	95	minecraft:mutated_jungle	Jungle M	7BA331
	151	97	minecraft:mutated_jungle_edge	JungleEdge M	8AB33F
	155	9B	minecraft:mutated_birch_forest	Birch Forest M	589C6C
	156	9C	minecraft:mutated_birch_forest_hills	Birch Forest Hills M	47875A
	157	9D	minecraft:mutated_roofed_forest	Roofed Forest M	687942
	158	9E	minecraft:mutated_taiga_cold	Cold Taiga M	597D72
	160	A0	minecraft:mutated_redwood_taiga	Mega Spruce Taiga	818e79
	161	A1	minecraft:mutated_redwood_taiga_hills	Redwood Taiga Hills M	6d7766
	162	A2	minecraft:mutated_extreme_hills_with_trees	Extreme Hills+ M	789878
	163	A3	minecraft:mutated_savanna	Savanna M	E5DA87
	164	A4	minecraft:mutated_savanna_rock	Savanna Plateau M	CFC58C
	165	A5	minecraft:mutated_mesa	Mesa (Bryce)	FF6D3D
	166	A6	minecraft:mutated_mesa_rock	Mesa Plateau F M	D8BF8D
	167	A7	minecraft:mutated_mesa_clear_rock	Mesa Plateau M	F2B48D

Enchantment IDs

Used in commands such as /enchant, /give and /replaceitem.

Enchantment	Resource location	ID
Protection	protection	0
Fire Protection	fire_protection	1
Feather Falling	feather_falling	2
Blast Protection	blast_protection	3
Projectile Protection	projectile_protection	4
Respiration	respiration	5
Aqua Affinity	aqua_affinity	6
Thorns	thorns	7
Depth Strider	depth_strider	8
Frost Walker	frost_walker	9
Curse of Binding	binding_curse	10
Sharpness	sharpness	16
Smite	smite	17
Bane of Arthropods	bane_of_arthropods	18
Knockback	knockback	19
Fire Aspect	fire_aspect	20
Looting	looting	21
Sweeping Edge	sweeping	22
Efficiency	efficiency	32
Silk Touch	silk_touch	33
Unbreaking	unbreaking	34
Fortune	fortune	35
Power	power	48
Punch	punch	49
Flame	flame	50
Infinity	infinity	51
Luck of the Sea	luck_of_the_sea	61
Lure	lure	62
Mending	mending	70
Curse of Vanishing	vanishing_curse	71

Status effects

Used in /effect command.

Icon	Value	Resource location	Effect type	Translation key	Particle color
	1	speed	Speed	effect.moveSpeed	#7CAFC6
	2	slowness	Slowness	effect.moveSlowdown	#5A6C81
	3	haste	Haste	effect.digSpeed	#D9C043
	4	mining_fatigue	Mining Fatigue	effect.digSlowDown	#4A4217
	5	strength	Strength	effect.damageBoost	#932423
—	6	instant_health	Instant Health	effect.heal	#F82423
—	7	instant_damage	Instant Damage	effect.harm	#430A09
	8	jump_boost	Jump Boost	effect.jump	#786297
	9	nausea	Nausea	effect.confusion	#551D4A
	10	regeneration	Regeneration	effect.regeneration	#CD5CAB
	11	resistance	Resistance	effect.resistance	#99453A
	12	fire_resistance	Fire Resistance	effect.fireResistance	#E49A3A
	13	water_breathing	Water Breathing	effect.waterBreathing	#2E5299
	14	invisibility	Invisibility	effect.invisibility	#7F8392
	15	blindness	Blindness	effect.blindness	#1F1F23
	16	night_vision	Night Vision	effect.nightVision	#1F1FA1
	17	hunger	Hunger	effect.hunger	#587653
	18	weakness	Weakness	effect.weakness	#484D48
	19	poison	Poison	effect.poison	#4E9331
	20	wither	Wither	effect.wither	#352A27
	21	health_boost	Health Boost	effect.healthBoost	#F87D23
	22	absorption	Absorption	effect.absorption	#2552A5
—	23	saturation	Saturation	effect.saturation	#F82423
	24	glowing	Glowing	effect.glowing	#94A061
	25	levitation	Levitation	effect.levitation	#CEFFFF
	26	luck	Luck	effect.luck	#339900
	27	unluck	Bad Luck	effect.unluck	#C0A44D

Data

Up to 4 bits of special data are used for certain block and item types. Blocks that need more than 4 bits of data beyond the block ID use a block entity or are split into two blocks. Storage differs according to level format.

Block	dec	hex	Use
Wood	0-15	0-F	Wood Texture/Rotation
Fire	0-15	0-F	Age in ticks (1/20th of a second)
Leaves	0-15	0-F	Leaves texture, decay counter
Jukebox	0-1	0-1	Disc in jukebox or not
Saplings	0-15	0-F	Age / Tree Type
Cactus	0-15	0-F	Age
Sugar Cane	0-15	0-F	Age
Water and Lava	0-15	0-F	Fluid level
Sand	0-1	0-1	Color of sand
Soil/Farmland	0-8	0-8	Wetness
Crops	0-7	0-7	Crop size
Nether Wart	0-3	0-3	Nether Wart Size
Pumpkin and melon stem	0-7	0-7	Growth stage
Wool, Stained Clay, Stained Glass and Carpet	0-15	0-F	Color
Dyes	0-15	0-F	Dye Color
Fish	0-3	0-3	Type of fish
Command block	0-1	0-1	Commands
Torches and Redstone Torches	0-5	0-5	Torch orientation
Rails (reg, powered, detect)	0-9	0-9	Rail slope, orientation, power
Stairs	0-7	0-7	Stair orientation
Levers	0-15	0-F	Lever orientation and thrown state

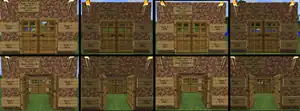

Door	0-15	0-F	Hinge corner position and swing state

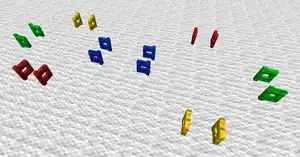

Buttons	0-15	0-F	Button orientation, whether it's pressed
Sign Posts	0-15	0-F	Sign orientation
Ladders, Wall Signs, Furnaces, Chests	2-5	2-5	Orientation
Dispensers, Droppers, and Hoppers	0-15	0-F	Orientation
Pumpkins and Jack-O-Lanterns	0-3	0-3	Pumpkin orientation
Pressure Plates	0-1	0-1	Whether it's pressed
Coal	0-1	0-1	Type of coal (mined coal or charcoal)
Tools and Armor	varies		Damage level
Slabs	0-15	0-F	Type of slab
Snow	0-7	0-7	Block height
Cake	0-5	0-5	Pieces eaten
Bed	0-15	0-F	Orientation, whether it's occupied
Redstone Comparator	0-15	0-F	Orientation, mode and power
Redstone Repeater	0-15	0-F	Orientation and delay
Redstone Wire	0-15	0-F	Power level
Daylight sensor	0-15	0-F	Power level
Grass	0-2	0-2	Appearance (grass, fern, shrub)
Flowers	0-8	0-8	Type of flower
Large Flowers	0-5, 8-13	0-5, 8-D	Type of flower
Trapdoors	0-7	0-7	Orientation and "swung" state
Piston	0-5, 8-13	0-5, 8-D	Orientation and "extended" state
Piston Extension	0-5, 8-13	0-5, 8-D	Orientation and "sticky" state
Stone Brick	0-3	0-3	Stronghold texture
Huge brown and red mushroom	0-10	0-A	Texture
Vines	0-15	0-F	Attached Surface
Fence Gates	0-7	0-7	Open/Closed, and direction
Potions	0-65535	0-FFFF	Potion Type
Brewing Stand	0-7	0-7	Slots used
Cauldron	0-3	0-3	Amount of water
Nether Portal	1-2	1-2	Orientation
End Portal Frame	0-7	0-7	Orientation, broken/fixed state
Cobblestone Wall	0-1	0-1	Cobblestone or Moss Stone
Flower Pot	0-11	0-B	Plant inside flower pot
Heads	0-4	0-4	Type of head
Anvil	0-2	0-2	Damage value
Golden Apple	0-1	0-1	Type of Golden Apple (regular or enchanted)
Wood Planks	0-5	0-5	Wood Planks texture
Block of Quartz	0-4	0-4	Block of Quartz texture/rotation

Wood Planks

	DV	Description
	0	Oak Wood Planks
	1	Spruce Wood Planks
	2	Birch Wood Planks
	3	Jungle Wood Planks
	4	Acacia Wood Planks
	5	Dark Oak Wood Planks

Stone

	DV	Description
	0	Stone
	1	Granite
	2	Polished Granite
	3	Diorite
	4	Polished Diorite
	5	Andesite
	6	Polished Andesite

Dirt

	DV	Description
	0	Dirt
	1	Coarse Dirt
	2	Podzol

Saplings

The data value is split in half. The bottom three bits determine the type of sapling (and thus the eventual tree type), according to the following table:

Bits	Values
0x1 0x2 0x4	A three-bit field storing a value of 0 to 5 specifying the type of sapling: 0: Oak Sapling 1: Spruce Sapling 2: Birch Sapling 3: Jungle Sapling 4: Acacia Sapling 5: Dark Oak Sapling
0x8	Set if sapling is ready to grow into a tree.

The 0x8 bit functions as the counter. The counter is cleared when a sapling is dropped as an item.

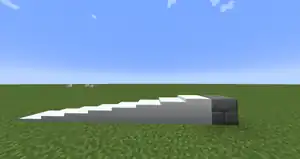

Water and Lava

If bit 0x8 is set, this liquid is "falling" and only spreads downward. At this level, the lower bits are essentially ignored, since this block is then at its highest fluid level.

The lower three bits are the fluid block's level. 0x0 is the highest fluid level (not necessarily filling the block - this depends on the neighboring fluid blocks above each upper corner of the block). Data values increase as the fluid level of the block drops: 0x1 is next highest, 0x2 lower, on through 0x7, the lowest fluid level. Along a line on a flat plane, water drops one level per meter from the source, lava drops one in the nether and two everywhere else.

The stationary versions of each fluid are "stable" and currently not being checked by the engine for further level changes. Oddly the in-code names for stationary water and lava are "water" and "lava" and the regular versions are "flowing_water" and "flowing_lava".

Sand

	DV	Description
	0	Sand
	1	Red sand

Wood

Block 17

Bits	Values
0x1 0x2	A two-bit field storing a value of 0 to 3 specifying the type of wood: 0: Oak Wood 1: Spruce Wood 2: Birch Wood 3: Jungle Wood
0x4 0x8	A two-bit field storing a value of 0 to 3 specifying the orientation of the wood: 0: Facing Up/Down 1: Facing East/West 2: Facing North/South 3: Only bark

Block 162

Bits	Values
0x1 0x2	A two-bit field storing a value of 0 to 1 specifying the type of wood: 0: Acacia Wood 1: Dark Oak Wood
0x4 0x8	A two-bit field storing a value of 0 to 3 specifying the orientation of the wood: 0: Facing Up/Down 1: Facing East/West 2: Facing North/South 3: Only bark

Leaves

If bit 0x4 is set, the leaves are permanent and will never decay. This bit is set on player-placed leaf blocks and overrides the meaning of bit 0x8.

If bit 0x8 is set, the leaves will be checked for decay. The bit will be cleared after the check if the leaves do not decay. The bit will be set again whenever a block adjacent to the leaves is changed.

Block 18

	DV	Description
	0	Oak Leaves
	1	Spruce Leaves
	2	Birch Leaves
	3	Jungle Leaves
	4	Oak Leaves (no decay)
	5	Spruce Leaves (no decay)
	6	Birch Leaves (no decay)
	7	Jungle Leaves (no decay)
	8	Oak Leaves (check decay)
	9	Spruce Leaves (check decay)
	10	Birch Leaves (check decay)
	11	Jungle Leaves (check decay)
	12	Oak Leaves (no decay and check decay)
	13	Spruce Leaves (no decay and check decay)
	14	Birch Leaves (no decay and check decay)
	15	Jungle Leaves (no decay and check decay)

Block 161

	DV	Description
	0	Acacia Leaves
	1	Dark Oak Leaves
	4	Acacia Leaves (no decay)
	5	Dark Oak Leaves (no decay)
	8	Acacia Leaves (check decay)
	9	Dark Oak Leaves (check decay)
	12	Acacia Leaves (no decay and check decay)
	13	Dark Oak Leaves (no decay and check decay)

Wool, terracotta, stained Glass and carpet

These values specify the color of the wool, stained terracotta, stained glass and carpet. This data is stored in block metadata for placed wool, stained clay, stained glass or carpet, and as the "damage" for the item in the inventory.

Carpet

	DV	Description
	0	White Carpet
	1	Orange Carpet
	2	Magenta Carpet
	3	Light Blue Carpet
	4	Yellow Carpet
	5	Lime Carpet
	6	Pink Carpet
	7	Gray Carpet
	8	Light Gray Carpet
	9	Cyan Carpet
	10	Purple Carpet
	11	Blue Carpet
	12	Brown Carpet
	13	Green Carpet
	14	Red Carpet
	15	Black Carpet

Wool

	Data value		Description	Color Code[note 1]
	Dec	Hex		old	new
	0	0x0	White wool	#DDDDDD	#E9ECEC
	1	0x1	Orange wool	#DB7D3E	#F07613
	2	0x2	Magenta wool	#B350BC	#BD44B3
	3	0x3	Light blue wool	#6B8AC9	#3AAFD9
	4	0x4	Yellow wool	#B1A627	#F8C627
	5	0x5	Lime wool	#41AE38	#70B919
	6	0x6	Pink wool	#D08499	#ED8DAC
	7	0x7	Gray wool	#404040	#3E4447
	8	0x8	Light gray wool	#9AA1A1	#8E8E86
	9	0x9	Cyan wool	#2E6E89	#158991
	10	0xA	Purple wool	#7E3DB5	#792AAC
	11	0xB	Blue wool	#2E388D	#35399D
	12	0xC	Brown wool	#4F321F	#724728
	13	0xD	Green wool	#35461B	#546D1B
	14	0xE	Red wool	#963430	#A12722
	15	0xF	Black wool	#191616	#141519

Terracotta

	DV	Description
	0	White terracotta
	1	Orange terracotta
	2	Magenta terracotta
	3	Light blue terracotta
	4	Yellow terracotta
	5	Lime terracotta
	6	Pink terracotta
	7	Gray terracotta
	8	Light gray terracotta
	9	Cyan terracotta
	10	Purple terracotta
	11	Blue terracotta
	12	Brown terracotta
	13	Green terracotta
	14	Red terracotta
	15	Black terracotta

Stained glass

	DV	Description
	0	White Stained Glass
	1	Orange Stained Glass
	2	Magenta Stained Glass
	3	Light Blue Stained Glass
	4	Yellow Stained Glass
	5	Lime Stained Glass
	6	Pink Stained Glass
	7	Gray Stained Glass
	8	Light Gray Stained Glass
	9	Cyan Stained Glass
	10	Purple Stained Glass
	11	Blue Stained Glass
	12	Brown Stained Glass
	13	Green Stained Glass
	14	Red Stained Glass
	15	Black Stained Glass

Torches and Redstone Torches

	DV	Description
	0	(unused)
	1	Facing east (attached to a block to its west)
	2	Facing west (attached to a block to its east)
	3	Facing south (attached to a block to its north)
	4	Facing north (attached to a block to its south)
	5	Facing up (attached to a block beneath it)

Slabs

Single slabs can be either "right-side-up" or "upside-down"; this information is stored in the most significant metadata bit 0x8 as follows:

• 0: Slab is right-side-up, occupying the bottom half of its voxel.
• 1: Slab is upside-down, occupying the top half of its voxel.

Thus a right-side-up birch wood slab has metadata value 0x2 (binary 0010), while an upside-down birch slab is represented by metadata 0xA (binary 1010).

Double slabs with the high-order bit set render the top texture on all six sides.

The wooden slab in the stone slabs has the properties of stone, and the texture of oak wood planks. They are unavailable in game and can only be obtained through commands.

Double Stone Slabs

Block 43

	DV	Description
	0	Double Stone Slab
	1	Double Sandstone Slab
	2	Double (Stone) Wooden Slab
	3	Double Cobblestone Slab
	4	Double Bricks Slab
	5	Double Stone Brick Slab
	6	Double Nether Brick Slab
	7	Double Quartz Slab

The full stone, quartz, sandstone, and red sandstone Slabs have a top texture on all sides.

Stone Slabs

Block 44

	DV	Description
	0	Stone Slab
	1	Sandstone Slab
	2	(Stone) Wooden Slab
	3	Cobblestone Slab
	4	Bricks Slab
	5	Stone Brick Slab
	6	Nether Brick Slab
	7	Quartz Slab
	8	Upper Stone Slab
	9	Upper Sandstone Slab
	10	Upper (Stone) Wooden Slab
	11	Upper Cobblestone Slab
	12	Upper Bricks Slab
	13	Upper Stone Brick Slab
	14	Upper Nether Brick Slab
	15	Upper Quartz Slab

Block 182

	DV	Description
	0	Red Sandstone Slab
	8	Upper Red Sandstone Slab

Double Wooden Slabs

Block 125

	DV	Description
	0	Double Oak Slab
	1	Double Spruce Slab
	2	Double Birch Slab
	3	Double Jungle Slab
	4	Double Acacia Slab
	5	Double Dark Oak Slab

Wooden Slabs

Block 126

	DV	Description
	0	Oak Wood Slab
	1	Spruce Wood Slab
	2	Birch Wood Slab
	3	Jungle Wood Slab
	4	Acacia Wood Slab
	5	Dark Oak Wood Slab
	8	Upper Oak Wood Slab
	9	Upper Spruce Wood Slab
	10	Upper Birch Wood Slab
	11	Upper Jungle Wood Slab
	12	Upper Acacia Wood Slab
	13	Upper Dark Oak Wood Slab

Fire

0x0 is a placed or spread fire. Once it reaches 0xF the eternal fire-trick will work since there will be no further updates of the block.

Sandstone

For normal sandstone the bottom has a cracked pattern. The other types of sandstone have bottom faces same as the tops.

	DV	Description
	0	Sandstone
	1	Chiseled sandstone
	2	Smooth sandstone

Red Sandstone

	DV	Description
	0	Red Sandstone
	1	Chiseled Red Sandstone
	2	Smooth Red Sandstone

Beds

Lowest two bits value	Facing
0	Head facing South
1	Head facing West
2	Head facing North
3	Head facing East
Bit flag	Meaning
0x4	When 0, the bed is empty When 1, the bed is occupied
0x8	When 0, the foot of the bed When 1, the head of the bed

Grass

	DV	Description
	0	Shrub
	1	Tall Grass
	2	Fern

Flowers

	DV	Description
	0	Poppy
	1	Blue Orchid
	2	Allium
	3	Azure Bluet
	4	Red Tulip
	5	Orange Tulip
	6	White Tulip
	7	Pink Tulip
	8	Oxeye Daisy

Large Flowers

Large flowers take up two vertical blocks. The bottom block defines the type, while the top defines the direction it faces (unused). When the most significant bit (0x8) is set, the flower is the top.

	DV	Description
	0	Sunflower
	1	Lilac
	2	Double Tallgrass
	3	Large Fern
	4	Rose Bush
	5	Peony
	8	Top (South)
	9	Top (West)
	10	Top (North)
	11	Top (East)

Piston

The top bit (0x8) is a status bit that determines whether the piston is pushed out or not. 1 for pushed out, 0 for retracted.

The bottom three bits are a value from 0 to 5, indicating the direction of the piston (the direction the piston head is pointing)

• 0: Down
• 1: Up
• 2: north
• 3: south
• 4: west
• 5: east

Piston Extension

The top bit (0x8) is a status bit that determines whether the head is sticky or not (note that the Piston Body actually has completely different block types for Sticky and Regular). 1 is sticky, 0 is regular.

The bottom three bits are a value from 0 to 5, indicating the direction of the piston (the direction the piston head is pointing).

• 0: Down
• 1: Up
• 2: north
• 3: south
• 4: west
• 5: east

Stairs

Bits	Description
0x1 0x2	A two-bit field containing a value from 0 to 3 specifying the direction of the stairs' full-block side: 0: East 1: West 2: South 3: North
0x4	Set if stairs are upside-down
0x8	(unused)

Redstone Wire

Bits	Values
0x1 0x2 0x4 0x8	A four-bit field storing a value from 0 to 15 specifying the redstone dust's current redstone power level.

Daylight Sensor

Bits	Values
0x1 0x2 0x4 0x8	Four bits storing a value from 0 to 15 representing the daylight sensor's current redstone power level.

Crops

Crops grow from values 0 to 7. Carrots, beetroot and potatoes appear to have 4 stages, but actually grow identically to wheat, merely using the same texture for multiple stages.

Wheat

Icon	Value
	0
	1
	2
	3
	4
	5
	6
	7

Carrot

Icon	Value
	0, 1
	2, 3
	4, 5, 6
	7

Potato

Icon	Value
	0, 1
	2, 3
	4, 5, 6
	7

Beetroot

Icon	Value
	0
	1
	2
	3

Farmland

Value	Meaning
0	Dry land
1 to 7	Increasing levels of wetness. The wetness value counts down to 0 while the farmland does not have access to water. The wet texture is only used on level 7.

Banner

Standing

Bits	Description
0x1 0x2 0x4 0x8	A four-bit field storing a value from 0 to 15 specifying the block's orientation: 0: south 1: south-southwest 2: southwest 3: west-southwest 4: west 5: west-northwest 6: northwest 7: north-northwest 8: north 9: north-northeast 10: northeast 11: east-northeast 12: east 13: east-southeast 14: southeast 15: south-southeast

Wall

Bits	Description
0x1 0x2 0x4	A three-bit field storing a value from 2 to 5 specifying the block's orientation: 2: north 3: south 4: west 5: east
0x8	(unused)

Door

Minecraft 1.1 and Earlier

The two least significant bits are the orientation of the door, that is, the corner in which its hinge is positioned:

• 0x0: north-west corner
• 0x1: north-east corner
• 0x2: south-west corner
• 0x3: south-east corner

The two bits above are flags:

• 0x8: If this bit is set, this is the top half of a door (else the lower half).
• 0x4: If this bit is set, the door has swung counterclockwise around its hinge.

For example, the bottom half of a door with its hinge on the south-west corner, which is swung so that it is closed when viewed from the west, will have a data value of (3 | 4) = (3 + 4) = 7.

Starting at Minecraft 1.2 (from weekly snapshot 12w06a)

The total data needed to accurately describe a single door tile is now contained in both door tiles, so both data values have to be inspected.

Common to both door tiles, the top bit (0x8) is as follows:

• 0: The bottom half of the door
• 1: The top half of the door

Top Sections

The least-significant bit (0x1) is as follows, assuming you're facing the same direction the door faces while closed:

• 0: Hinge is on the right (this is the default for single doors)
• 1: Hinge is on the left (this will be used for the other half of a double-door combo)

The other two bits (0x2 and 0x4) are always zero.

The only valid values for a top section, therefore, are 8 (binary 1000) and 9 (binary 1001).

Bottom Sections

The second bit (0x4) determines the door's state:

• 0: Closed
• 1: Open

The bottom two bits determine which direction the door faces (these directions given for which direction the door faces while closed)

• 0: Facing east
• 1: Facing south
• 2: Facing west
• 3: Facing north

Starting at Minecraft 14w04a

The second bit for the top half of the door (0x2) determines whether the door is Powered or Unpowered.

• 0: Door is Unpowered
• 1: Door is Powered

Which means the top section, now uses values 8, 9, 10, and 11.

Rails

Value	Description
0	Straight rail connecting to the north and south.
1	Straight rail connecting to the east and west.
2	Sloped rail ascending to the east.
3	Sloped rail ascending to the west.
4	Sloped rail ascending to the north.
5	Sloped rail ascending to the south.
6	Curved rail connecting to the south and east.
7	Curved rail connecting to the south and west.
8	Curved rail connecting to the north and west.
9	Curved rail connecting to the north and east.

Activator Rails, Detector Rails, and Powered Rails

Bits	Values
0x1 0x2 0x4	A three-bit field storing a value from 0 to 5: 0: flat track going north-south 1: flat track going west-east 2: sloped track ascending to the east 3: sloped track ascending to the west 4: sloped track ascending to the north 5: sloped track ascending to the south
0x8	Set if rail is active.

Ladders, Furnaces, Chests, Trapped Chests

Ladder

Bits	Values
0x1 0x2 0x4	A three-bit field storing a value from 2 to 5: 2: Ladder facing north 3: Ladder facing south 4: Ladder facing west 5: Ladder facing east Invalid values default to 2.
0x8	Unused.

Furnace

Bits	Values
0x1 0x2 0x4	A three-bit field storing a value from 2 to 5: 2: Furnace facing north 3: Furnace facing south 4: Furnace facing west 5: Furnace facing east Invalid values default to 2.
0x8	Unused.

Chest

Bits	Values
0x1 0x2 0x4	A three-bit field storing a value from 2 to 5: 2: Chest facing north 3: Chest facing south 4: Chest facing west 5: Chest facing east Invalid values default to 2.
0x8	Unused.

Trapped Chest

Bits	Values
0x1 0x2 0x4	A three-bit field storing a value from 2 to 5: 2: Trapped chest facing north 3: Trapped chest facing south 4: Trapped chest facing west 5: Trapped chest facing east Invalid values default to 2.
0x8	Unused.

Sign

Standing

Bits	Description
0x1 0x2 0x4 0x8	A four-bit field storing a value from 0 to 15 specifying the block's orientation: 0: south 1: south-southwest 2: southwest 3: west-southwest 4: west 5: west-northwest 6: northwest 7: north-northwest 8: north 9: north-northeast 10: northeast 11: east-northeast 12: east 13: east-southeast 14: southeast 15: south-southeast

Wall

Bits	Description
0x1 0x2 0x4	A three-bit field storing a value from 2 to 5 specifying the block's orientation: 2: north 3: south 4: west 5: east
0x8	(unused)

Dispenser and Dropper

Dropper

Bits	Values
0x1 0x2 0x4	A three-bit field storing a value from 0 to 5 specifying which direction the dropper is facing: 0: Dropper facing down 1: Dropper facing up 2: Dropper facing north 3: Dropper facing south 4: Dropper facing west 5: Dropper facing east
0x8	Set if dropper is activated.

Dispenser

Bits	Values
0x1 0x2 0x4	Three bits storing a value from 0 to 5: 0: Dispenser facing down 1: Dispenser facing up 2: Dispenser facing north 3: Dispenser facing south 4: Dispenser facing west 5: Dispenser facing east
0x8	If set, the dispenser is activated.

Hopper

Bits	Values
0x1 0x2 0x4	A three-bit field storing a value from 0 to 5: 0: Output facing down 1: (unused) 2: Output facing north 3: Output facing south 4: Output facing west 5: Output facing east
0x8	Set if activated/disabled.

Levers

Bits	Values
0x1 0x2 0x4	A three-bit field storing a value from 0 to 7: 0: Lever on block bottom points east when off. 1: Lever on block side facing east 2: Lever on block side facing west 3: Lever on block side facing south 4: Lever on block side facing north 5: Lever on block top points south when off. 6: Lever on block top points east when off. 7: Lever on block bottom points south when off.
0x8	If this bit is set, the lever is active.

Pressure Plates

Stone or wooden pressure plate

Bits	Values
0x1	If this bit is set, the pressure plate is active.
0x2 0x4 0x8	Unused.

Weighted pressure plate

Bits	Values
0x1 0x2 0x4 0x8	A four-bit field storing a value from 0 to 15 representing the weighted pressure plate's current redstone power level.

Buttons

Bits	Values
0x1 0x2 0x4	Three bits storing a value from 0 to 5: 0: Button on block bottom facing down 1: Button on block side facing east 2: Button on block side facing west 3: Button on block side facing south 4: Button on block side facing north 5: Button on block top facing up
0x8	If this bit is set, the button is currently active.

Snow

	DV	Description
	0	One layer, 2 pixels thick
	1	Two layers, 4 pixels thick
	2	Three layers, 6 pixels thick
	3	Four layers, 8 pixels thick
	4	Five layers, 10 pixels thick
	5	Six layers, 12 pixels thick
	6	Seven layers, 14 pixels thick
	7	Eight layers, 16 pixels thick

Cacti and Sugar Canes

Cactus

Value	Meaning
0	Freshly planted cactus.
1 to 15	The data value is incremented at random intervals. When it becomes 15, a new cactus block is created on top as long as the total height does not exceed 3.

Sugar Canes

Value	Meaning
0	Freshly planted sugar cane.
1 to 15	The data value is incremented at random intervals. When it becomes 15, a new sugar cane block is created on top as long as the total height does not exceed 3.

Jukebox

	DV	Description
	0	No disc inserted
	1	Contains a disc

The associated block entity is used to identify which record has been inserted.

Pumpkins and Jack o'Lanterns

Pumpkin

Lowest two bits value	Facing
0	Pumpkin facing south
1	Pumpkin facing west
2	Pumpkin facing north
3	Pumpkin facing east

Jack o'Lantern

Lowest two bits value	Facing
0	Jack o'lantern facing south
1	Jack o'lantern facing west
2	Jack o'lantern facing north
3	Jack o'lantern facing east

Cake

Value	Stage
0	Whole intact cake
1	1 piece eaten
2	2 pieces eaten
3	3 pieces eaten
4	4 pieces eaten
5	5 pieces eaten
6	6 pieces eaten

Redstone Repeater

Bits	Values
0x1 0x2	A two-bit field storing a value from 0 to 3 specifying the direction the redstone repeater is facing: 0: Facing north. 1: Facing east. 2: Facing south. 3: Facing west.
0x4 0x8	A two-bit field storing a value from 0 to 3 specifying the redstone repeater's delay: 0: Delay of 1 redstone tick. 1: Delay of 2 redstone tick. 2: Delay of 3 redstone tick. 3: Delay of 4 redstone tick.

Effectively, add the repeater's facing value (0 to 3) to 4×(delay-1). For example, a repeater facing west with a delay of 3 redstone ticks would have a block data value of 3 + 4×(3-1) = 11.

Redstone Comparator

A redstone comparator's block data specifies its orientation, mode, and powered status.

Bits	Values
0x1 0x2	A two-bit field storing a value from 0 to 3 specifying the redstone comparator's orientation: 0: Facing north. 1: Facing east. 2: Facing south. 3: Facing west.
0x4	Set if in subtraction mode (front torch up and powered).
0x8	Set if powered (at any power level).

Trapdoors

Bits	Values
0x1 0x2	A two-bit field storing a value from 0 to 3: 0: Trapdoor on the south side of a block 1: Trapdoor on the north side of a block 2: Trapdoor on the east side of a block 3: Trapdoor on the west side of a block
0x4	If this bit is set, the trapdoor is open.
0x8	If this bit is set, the trapdoor is on the top half of a block. Otherwise, it is on the bottom half.

Monster Egg

	DV	Description
	0	Stone Monster Egg
	1	Cobblestone Monster Egg
	2	Stone Brick Monster Egg
	3	Mossy Stone Brick Monster Egg
	4	Cracked Stone Brick Monster Egg
	5	Chiseled Stone Brick Monster Egg

Stone Bricks

	DV	Description
	0	Stone brick
	1	Mossy stone brick
	2	Cracked stone brick
	3	Chiseled stone brick

Prismarine

	DV	Description
	0	Prismarine
	1	Prismarine Bricks
	2	Dark Prismarine

Sponge

	DV	Description
	0	Sponge
	1	Wet Sponge

Brown and red mushroom blocks

Mushroom blocks consist of the same blocks throughout their structure, the data value of each block decides the texture. The default texture on all sides is porous flesh. The cap texture can be either the brown mushroom or red mushroom texture, the textures for porous and stem sides are identical. Although data values 11-13 are unused they have the same texture as data value 0 as placeholders (to keep people from destroying their maps).

	DV	Description
	0	Pores on all sides
	1	Cap texture on top, west and north
	2	Cap texture on top and north
	3	Cap texture on top, north and east
	4	Cap texture on top and west
	5	Cap texture on top
	6	Cap texture on top and east
	7	Cap texture on top, south and west
	8	Cap texture on top and south
	9	Cap texture on top, east and south
	10	Stem texture on all four sides, pores on top and bottom
	14	Cap texture on all six sides
	15	Stem texture on all six sides

Pumpkin stem and Melon stem

Value	Stage
0	Freshly planted stem
1	First stage of growth
2	Second stage of growth
3	Third stage of growth
4	Fourth stage of growth
5	Fifth stage of growth
6	Sixth stage of growth
7	Seventh stage of growth In this stage a stem can generate a melon or pumpkin next to it on an empty dirt, grass or farmland block

Vines

Determines the face against which the vine is anchored. Note that (except for Top) these are testable as bit flags, unlike most of the other directional data for other block types. Multiple sides can contain vines. The "top" attachment is assumed to be present if data is 0 or there is solid block above.

• 1: south
• 2: west
• 4: north
• 8: east

Fence Gates

Bits	Description
0x1 0x2	Two bits storing a value from 0 to 3 specifying the direction the gate is facing: 0: Facing south 1: Facing west 2: Facing north 3: Facing east
0x4	0 if the gate is closed, 1 if open.

Nether Wart

Like Crops, the data value is related to the size of the Nether Wart. There are three distinct visual stages to Nether Wart's growth (the associated data values are given):

Icon	Value
	0
	1-2
	3

Brewing Stand

The bottom three bits are bit flags for which bottle slots actually contain bottles.

Bits	Values
0x1	The slot pointing east
0x2	The slot pointing northwest
0x4	The slot pointing southwest

Cauldron

The data value stores the amount of water kept in the cauldron, in units of glass bottles that can be filled.

DV	Description
0	Empty
1	⅓ filled
2	⅔ filled
3	Fully filled

Nether Portal

Nether portals created in version 1.6.4 and earlier automatically determined their orientation based on neighboring blocks. When version 13w37a added the ability to create larger portals, they started using data values to keep track of their orientation, and old portals with a data value of 0 would randomly close when upgrading to 1.7.

DV	Orientation
0	Automatic, 1.6.4 and earlier
1	Facing North/South (obsidian to east and west)
2	Facing East/West (obsidian to north and south)

End Portal Frame

The bottom two bits determine which "side" of the whole portal frame this block is a part of. To make the frame activate, each of the portal frame blocks in the pattern must "face" toward the middle. Since the image is near-symmetrical, it is difficult to tell which direction an individual block is actually facing, but if the block isn't facing in that direction and that is the last frame block where the Eye of Ender is placed, the frame won't activate.

Direction vectors for the blocks are the following:

• 0: To the south
• 1: To the west
• 2: To the north
• 3: To the east

0x4 is a bit flag: 0 is an "empty" frame block, 1 is a block with an Eye of Ender inserted.

Cocoa

Bits	Values
0x1 0x2	A two-bit field storing a value from 0 to 4 specifying the direction the pod is attached to: 0: Attached to the north 1: Attached to the east 2: Attached to the south 3: Attached to the west
0x4 0x8	A two-bit field storing a value from 0 to 3 specifying the stage of growth of the plant: 0: First stage 1: Second stage 2: Final stage

Tripwire Hook

Bits	Values
0x1 0x2	A two-bit field storing a value from 0 to 3: 0: Tripwire hook on block side facing south 1: Tripwire hook on block side facing west 2: Tripwire hook on block side facing north 3: Tripwire hook on block side facing east
0x4	If set, the tripwire hook is connected and ready to trip ("middle" position).
0x8	If set, the tripwire hook is currently activated ("down" position)

Tripwire

Bits	Description
0x1	Set if tripwire is activated (an entity is intersecting its collision mask).
0x2	Unused
0x4	Set if tripwire is attached to a valid tripwire circuit.
0x8	Set if tripwire is disarmed.

Cobblestone Walls

	DV	Description
	0	Cobblestone Wall
	1	Mossy Cobblestone Wall

Flower Pots

For Flower Pot blocks placed from Minecraft version 1.7 on, the plant contained in the pot is stored in the associated Tile Entity. See Block entity format for details. The absence of a tile entity indicates either an empty Flower Pot, or one whose block was placed prior to version 1.7.

For Flower Pot blocks placed before version 1.7 the plant contained in the pot is indicated by the data value, according to the following table:

	DV	Description
	0	Empty Flower Pot
	1	Poppy Flower Pot
	2	Dandelion Flower Pot
	3	Oak sapling Flower Pot
	4	Spruce sapling Flower Pot
	5	Birch sapling Flower Pot
	6	Jungle sapling Flower Pot
	7	Red mushroom Flower Pot
	8	Brown mushroom Flower Pot
	9	Cactus Flower Pot
	10	Dead bush Flower Pot
	11	Fern Flower Pot
	12	Acacia sapling Flower Pot
	13	Dark oak sapling Flower Pot

Heads

For the block, data values determine the block placement:

	DV	Description
	0	(unused)
	1	On the floor (rotation is stored in the tile entity)
	2	On a wall, facing north
	3	On a wall, facing south
	4	On a wall, facing west
	5	On a wall, facing east

For the item and for the tile entity, data values determine the skull type:

	DV	Description
	0	Skeleton Skull
	1	Wither Skeleton Skull
	2	Zombie Head
	3	Head
	4	Creeper Head
	5	Dragon Head

Block of Quartz

	DV	Description
	0	Block of Quartz
	1	Chiseled Quartz Block
	2	Pillar Quartz Block (vertical)
	3	Pillar Quartz Block (east-west)
	4	Pillar Quartz Block (north-south)

Coal

	DV	Description
	0	Coal
	1	Charcoal

Dyes

	DV	Description
	0	Ink Sac
	1	Rose Red
	2	Cactus Green
	3	Cocoa Beans
	4	Lapis Lazuli
	5	Purple Dye
	6	Cyan Dye
	7	Light Gray Dye
	8	Gray Dye
	9	Pink Dye
	10	Lime Dye
	11	Dandelion Yellow
	12	Light Blue Dye
	13	Magenta Dye
	14	Orange Dye
	15	Bone Meal

Fish

Both raw and cooked fish use the same data values. Note that clownfish and pufferfish cannot be cooked, though if cooked versions are spawned in with commands, they will use the appropriate item name.

	DV	Description
	0	Raw Fish
	1	Raw Salmon
	2	Clownfish
	3	Pufferfish

	DV	Description
	0	Cooked Fish
	1	Cooked Salmon
	2	Clownfish
	3	Pufferfish

Anvil

Anvil data values differ between the item and block.

Item

	DV	Description
	0	Anvil
	1	Slightly Damaged Anvil
	2	Very Damaged Anvil

Block

	DV	Description
	0	Anvil (North/South)
	1	Anvil (East/West)
	2	Anvil (South/North)
	3	Anvil (West/East)
	4	Slightly Damaged Anvil (North/South)
	5	Slightly Damaged Anvil (East/West)
	6	Slightly Damaged Anvil (South/North)
	7	Slightly Damaged Anvil (West/East)
	8	Very Damaged Anvil (North/South)
	9	Very Damaged Anvil (East/West)
	10	Very Damaged Anvil (South/North)
	11	Very Damaged Anvil (West/East)

For an anvil in the world, 0x1 is the bit that determines whether the anvil is orientated in a north-south (0) or a west-east (1) direction. 0x4 and 0x8 are bits which determine whether the anvil is a regular (0x4 & 0x8 = 0), a slightly damaged (0x4 = 1) or a very damaged (0x8 = 1) one. For an anvil in the inventory, the data value is a counter of how damaged it is.

Observer

Bits	Values
0x1 0x2 0x4	Three bits storing a value from 0 to 5: 0: Observer facing down 1: Observer facing up 2: Observer facing north 3: Observer facing south 4: Observer facing west 5: Observer facing east
0x8	If set, the observer is powered.

Potions

A glass bottle filled with a potion. Potion type is stored in item's damage value as a 16-bit number. Potion effect, name, and other flags are encoded on bits. Effect duration itself isn't there, but can be calculated from other values.

Current meaning of bits is described below. Note that potion name overlaps with potion effect and tier.

Bit	Dec	Hex	Meaning
0	1	0001	Potion effect	Potion name
1	2	0002
2	4	0004
3	8	0008
4	16	0010
5	32	0020	Tier
6	64	0040	Extended duration
7	128	0080	(ignored)
8	256	0100
9	512	0200
10	1024	0400
11	2048	0800
12	4096	1000
13	8192	2000	Can become splash potion
14	16384	4000	Splash potion
15	32768	8000	(ignored)

To calculate damage value of potion with desired effect use the following formula:

DV = potion_effect + tier_bit + extended_bit + splash_bit

for example:

• potion with "Instant Health" effect has damage value 5 (= 5 + 0 + 0 + 0);
• potion with extended "Slowness" effect has value 74 (= 10 + 0 + 64 + 0);
• splash potion with tier II "Strength" effect has value 16425 (= 9 + 32 + 0 + 16384).

To get potion with certain name, use the following formula:

DV = potion_name + extended_bit + splash_bit

for example:

• Splash version of "Charming Potion" has damage value 16423 (= 39 + 0 + 16384)

"Potion name" bits

Dec	Hex	Potion
0	00	Water Bottle / Mundane Potion
1	01	Potion of Regeneration
2	02	Potion of Swiftness
3	03	Potion of Fire Resistance
4	04	Potion of Poison
5	05	Potion of Healing
6	06	Potion of Night Vision
7	07	Clear Potion
8	08	Potion of Weakness
9	09	Potion of Strength
10	0a	Potion of Slowness
11	0b	Potion of Leaping
12	0c	Potion of Harming
13	0d	Potion of Water Breathing
14	0e	Potion of Invisibility
15	0f	Thin Potion

Dec	Hex	Potion
16	10	Awkward Potion
17	11	Potion of Regeneration
18	12	Potion of Swiftness
19	13	Potion of Fire Resistance
20	14	Potion of Poison
21	15	Potion of Healing
22	16	Potion of Night Vision
23	17	Bungling Potion
24	18	Potion of Weakness
25	19	Potion of Strength
26	1a	Potion of Slowness
27	1b	Potion of Leaping
28	1c	Potion of Harming
29	1d	Potion of Water Breathing
30	1e	Potion of Invisibility
31	1f	Debonair Potion

Dec	Hex	Potion
32	20	Thick Potion
33	21	Potion of Regeneration
34	22	Potion of Swiftness
35	23	Potion of Fire Resistance
36	24	Potion of Poison
37	25	Potion of Healing
38	26	Potion of Night Vision
39	27	Charming Potion
40	28	Potion of Weakness
41	29	Potion of Strength
42	2a	Potion of Slowness
43	2b	Potion of Leaping
44	2c	Potion of Harming
45	2d	Potion of Water Breathing
46	2e	Potion of Invisibility
47	2f	Sparkling Potion

Dec	Hex	Potion
48	30	Potent Potion
49	31	Potion of Regeneration
50	32	Potion of Swiftness
51	33	Potion of Fire Resistance
52	34	Potion of Poison
53	35	Potion of Healing
54	36	Potion of Night Vision
55	37	Rank Potion
56	38	Potion of Weakness
57	39	Potion of Strength
58	3a	Potion of Slowness
59	3b	Potion of Leaping
60	3c	Potion of Harming
61	3d	Potion of Water Breathing
62	3e	Potion of Invisibility
63	3f	Stinky Potion

Note: potion with name set to 0 is called "Water Bottle" only if no other bit is set. Otherwise, it is called "Mundane Potion".

Note: potions with an effect and splash potion bit set have additional "Splash " prefix.

"Potion effect" bits

Dec	Hex	Effect	Potion suffix	Duration	Bottles	Icon	Effect color	Tier II?
0	0	-	-	-		-	-	-
1	1	Regeneration	Regeneration	0:45			Pink	Yes
2	2	Speed	Swiftness	3:00			Sky blue	Yes
3	3	Fire Resistance	Fire Resistance	3:00			Orange	No
4	4	Poison	Poison	0:45			Green	Yes
5	5	Instant Health	Healing	instant		-	-	Yes
6	6	Night Vision	Night Vision	3:00			Navy blue	No
7	7	-	-	-		-	-	-
8	8	Weakness	Weakness	1:30			Gray	No
9	9	Strength	Strength	3:00			Dark red	Yes
10	a	Slowness	Slowness	1:30			Blue-gray	No
11	b	Jump Boost	Leaping	3:00			Bright green	Yes
12	c	Instant Damage	Harming	instant		-	-	Yes
13	d	Water Breathing	Water Breathing	3:00			Blue	No
14	e	Invisibility	Invisibility	3:00			Light gray	No
15	f	-	-	-		-	-	-

"Tier" bit

Dec	Hex	Meaning
0	0000	Tier I effect.
32	0020	Tier II effect. Multiply duration by 1/2.

Note: Fire Resistance, Weakness and Slowness effects have no second tier. Their strength and duration are unaffected by this bit.

"Extended duration" bit

Dec	Hex	Meaning
0	0000	Base duration.
64	0040	Multiply duration by 8/3.

"Splash potion" bit

Dec	Hex	Meaning
0	0000	Drinkable potion.
16384	4000	Splash potion. Multiply duration by 3/4.

Maps

Each map item's damage value corresponds to the map ID saved in each world's NBT data. The map's parameters, such as the scale of the map, its location in the world and what areas are explored are saved in separate .dat files, unlike written books or fireworks which store their additional data directly into the item itself. If a map is cloned they will both share the same damage value and newly explored areas will appear on both instances.

Golden Apple

	DV	Description
	0	Golden Apple
	1	Enchanted Golden Apple

Structure Block

	DV	Description
	0	Data
	1	Save
	2	Load
	3	Corner

Chorus Flower

The data value denotes its age, it will not grow anymore when data value is 0x5.

End Rod

	DV	Description
	0	Facing down
	1	Facing up
	2	Facing north
	3	Facing south
	4	Facing west
	5	Facing east

Glazed Terracotta

Bits	Values
0x1 0x2	A 2-bit field storing a value from 0 to 3: 0: south (the player was facing north when this block was placed) 1: west 2: north 3: east
0x4 0x8	Unused.

Navigation

v t e Java Edition technical
General Concepts Block entity Coordinates Crashes [String] Loot context Mob AI Point of Interest Resource location Screenshot Statistics Telemetry Tick UUID JSON General format Data values Classic Indev Data component format Predicate Entity format Map item format [NBT Compound / JSON Object] NBT format Particle format Text component format § Formatting codes Key codes Random sequence Structure file format Schematic file format World Heightmap Seed Spawn chunk Data version Level format Anvil file format Chunk format Player format Point of Interest format raids.dat format Command storage format Scoreboard format Legacy Classic level format Classic server protocol Indev level format Alpha level format Infdev 20100624 level format Region file format server_level.dat villages.dat format Generated structures format .minecraft client.jar version.json client.json command_history.txt launcher_profiles.json options.txt version_manifest.json hotbar.nbt format Server list format Tools F3 Debug screen hotkey Developer Tools GameTest Obfuscation map Sound Block sound type sounds.json Subtitles Commands Brigadier Functions All commands Launching Mojang API Microsoft authentication Quick Play Legacy Legacy Minecraft authentication Yggdrasil Protocol Protocol version Packets Data types Encryption Server server.jar server.properties Server requirements Whitelist Operator list Query RCON Legacy al_version Item format
Data pack Components pack.mcmeta Pack format Advancements Functions Item modifier Loot tables Predicate Recipe Damage type Chat type Enchantment Enchantment provider Painting variant Banner pattern Goat horn instrument Jukebox song Trial spawner configuration Mob variants Dialog Tag Block Item Function Fluid Entity type Game event Biome Flat level generator preset World preset Structure Point of interest type Painting variant Banner pattern Instrument Damage type Enchantment Dialog GameTest Test environment Test instance World generation Dimension Dimension type World preset Biomes Carver Configured feature Tree Placed feature Noise settings Noise router Density function Noises Surface rule Structures Structure set Template pool Processor list Structure templates Data packs Caves & Cliffs Prototype Data Pack Tutorials Installing Creating Optimizing Command blocks and functions Repairing a world corrupted by a data pack Content Custom enchantments Custom paintings Custom trims World generation New dimension Custom structures
Resource pack Components pack.mcmeta Pack format Language Models Blockstates Items Sounds (sounds.json) Shaders Textures Atlases Aa Fonts Colormaps Texts Waypoint styles regional_compliancies.json Equipment Debug Missing font character Missing model Missing texture Tutorials Creating Loading Models Sound directory
