Data pack

This feature is exclusive to Java Edition.



There are related tutorial pages for this topic!



See Tutorial:Creating a data pack and Tutorial:Installing a data pack.

A data pack is a collection of data used to configure a number of features of Minecraft. A data pack is either a folder or a .zip file containing a pack.mcmeta file. Data packs are used to define among others advancements, dimensions, enchantments, loot tables, recipes, structures, and biomes (see § Contents for a full list). The definitions of the vanilla features is done using a built-in data pack. Experiments are enabled by adding separate bundled data packs to a world. Similarly, custom data packs can be added to a world to add or modify features and define functions.

Usage

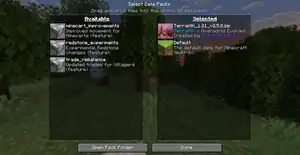

Data packs can be added to a world during world creation in the Create New World screen in the More tab by clicking the Data Packs button. This menu allows drag-and-drop of data packs from a file explorer. Alternatively, data packs can be added to an existing world by manually placing them in the .minecraft/saves/<world>/datapacks folder of a world.

When adding or modifying a data pack while the world is loaded, changes done to registry tags, loot tables, recipes, advancements, item modifiers, predicates, functions, and structure templates can be loaded using the /reload command. Other features require the world or server to be rebooted for changes to take effect (see § Experimental Settings).

Data packs load their data based on the load order. This order can be seen and altered in the Data Packs screen during world creation, and by using the /datapack command. The loading order of data packs is stored in the level.dat file. If a file exists in multiple data packs only the file in the last data pack is used. This is often referred to this file overriding the files in the earlier packs. However, tag files without "replace": true merge their content with the files loaded from earlier packs.

Experimental Settings

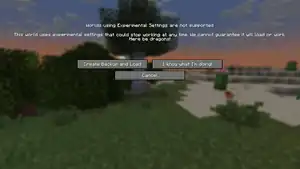

Some data pack features are considered experimental settings by the game. If a world has enabled a data pack that uses these features, opening the world in singleplayer will display a warning screen to the player. Additionally, worlds using experimental settings cannot be played on Realms: Attempting to upload such a world to Realms results in a server error.

Internally, most experimental settings use dynamic registries (as opposed to static registries). This means any changes regarding these features cannot be loaded using the /reload command: the world must be exited and reopened (singleplayer), or the server rebooted (multiplayer) for the changes to take effect.

For a data pack to be marked as "using experimental settings", it must contain at least one valid file inside one of several specific folders. For instance, defining a custom instrument inside the data/instrument/ folder counts as using experimental settings, whereas defining an instrument through item components does not count as such.

See § Folder structure for which folders are considered experimental settings.

Contents

Data packs use a folder structure to contain the data. On the top level, a data pack has to contain a pack.mcmeta file containing meta-data about the data pack. The data is organized into namespaces to avoid files from different packs unintentionally interfering with each other. Files are loaded as follows:

• The file data/<namespace>/<registry name>/<path>.json is loaded into the <registry name> registry with ID <namespace>:<path>. Both <registry name> and <path> can contain slashes (/), which results in extra sub-folders.
  • Functions use the .mcfunction extension
  • Structure files use the .nbt extension
• Tags are loaded from files data/<namespace>/tags/<registry name>/<path>.json which results in a <registry name> tag named #<namespace>:<path>.

Folder structure

pack.mcmeta

A data pack is identified by Minecraft based on the presence of the pack.mcmeta file in the root directory of the data pack, which contains data in JSON format.

A pack.mcmeta file to produce a data pack that looks like the "vanilla" data pack in 1.21.7 would look this this:

pack.mcmeta

{
    "pack": {
        "description": {
            "translate": "dataPack.vanilla.description"
        },
        "pack_format": 81
    }
}

Pack format

History

Issues

Issues relating to "Data pack" are maintained on the bug tracker. Issues should be reported and viewed there.

Gallery

•
  Example of a custom world created with a data pack.

See also

• Add-on
• Tutorial: Installing a data pack
• Tutorial: Creating a data pack
• Resource Pack
• Tutorial: Creating a resource pack

External links

• misode.github.io provides data pack generators
