Noise

This feature is exclusive to Java Edition.

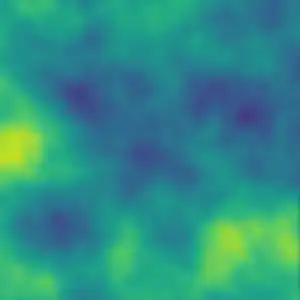

An example sample of the minecraft:continentalness noise

A noise is a technical JSON file that can be referenced by a density function and surface rule. They are stored within a data pack in the folder data/<namespace>/worldgen/noise.

In addition to being called by density functions and surface rules, there are also some noises with hard-coded usage:

  • minecraft:surface: Affects the surface layer thickness in surface rules.
  • minecraft:surface_secondary: Used as the thickness of additional surface layer in surface rules.
  • minecraft:clay_bands_offset: Used to generate badland terracotta bands in bandlands surface rules.
  • minecraft:badlands_pillar, minecraft:badlands_pillar_roof, minecraft:badlands_surface: Used when generating badland hoodoos in minecraft:eroded_badlands biome.
  • minecraft:iceberg_pillar, minecraft:iceberg_pillar_roof, minecraft:iceberg_surface: Used when generating iceberg terrain feature in minecraft:frozen_ocean and minecraft:deep_frozen_ocean biomes.

JSON format

  • [NBT Compound / JSON Object]: Root object.
    • [Int] firstOctave: First octave. If [Boolean] legacy_random_source in the noise settings is true, it must be an integer less than or equal to 1, otherwise the value range is not unlimited.
    • [NBT List / JSON Array] amplitudes: Amplitudes of sub-noise. The frequency of a sub-noise at index (from 0) in the list is 2^(- firstOctave + index), and the amplitude (the value of the sub-noise ranges from -amplitude to +amplitude) of this sub-noise is about 1.04 * doubleValueAtIndex * 2^(sizeOfThisList - index - 1) / (2^sizeOfThisList - 1) (assuming the range of 3D Improved Perlin Noise is ±1.04). For each sub-noise, two 3D improved perlin noises are created and their average is taken. The final range of this noise value is ± 10 * sumOfSubNoises / ( 3 * ( 1 + 1 / m ) ), where m is the number of elements in the list after removing the leading and trailing zero elements. If [Boolean] legacy_random_source in the noise settings is true, the length must be less than or equal to 1-firstOctave. If false, the length is unlimited.
      • [Double]: A double value for a sub-noise.

History

This section of the article is empty.

You can help by expanding it.
