Questions tagged [potentiometer]

Mechanically adjustable variable resistor with three legs. It is used as a voltage divider. (It is not a meter at all, but got the name from its historical ancestor, which was a meter.)

A potentiometer, (also known as pot, control, volume control, volume knob, etc). It is a variable voltage divider (potential divider).

poti

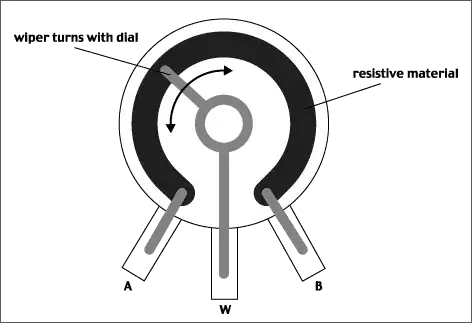

A potentiometer contains a wound resistance wire or a carbon film, and both terminals are connected with separate leads (end terminals or terminal legs). On this resistance wire, there is a slider (also called wiping contact, or variable contact, or jockey, etc). This slider is conductive, and connected to the (third) variable contact terminal (usually the central terminal or central leg).

Conceptually, potentiometers are different from rheostats, because rheostats (the basic-type of variable resistor) contains only two terminals (see: What's the difference between a potentiometer and a rheostat?).

Usually, when a rheostat is needed, a potentiometer is used as a rheostat by using only one of the terminal legs and the variable contact terminal.

Potentiometers can be of different types, such as sliding (linear, also called fader), rotary (commonly called volume control or volume knob; sometimes also contains an on/off switch), and preset potentiometers (also called trimmer potentiometers, or trimming potentiometers, or trimpots).

"Potentiometer" got its name from its historic ancestor, a measuring device working on the principle of wheatstone-bridge voltage divider (see: The potentiometer used in electronics is not a measuring instrument. Why it is contains phrase 'meter'?).

885 questions
37
votes
5 answers

What's the difference between a potentiometer and a rheostat?

I've seen that a number of schematics will connect the center (common) pin of a potentiometer to one or the other leg, and it then functions more like a rheostat. Is that how a rheostat is wired internally? What's the difference between a…
JYelton
  • 34,119
  • 33
  • 145
  • 265
16
votes
3 answers

3 leg potentiometer - what's the 3rd leg for?

In a potentiometer, I often see the 3rd leg connected to ground. I understand exactly what a potentiometer is physically (a wiper along a log or linear resistance), but I don't understand the benefit of connecting that 3rd leg to ground.
SwimBikeRun
  • 293
  • 1
  • 2
  • 8
12
votes
6 answers

What type of glue would you use on set potentiometer screws on a PCB?

I want to set my potentiometer screws and then glue them in place so they will not be readjusted by the end user and I have seen green adhesive on them before? Any suggestions as to what is best to use on this type of application? Thank you.
Ronda Bruecker
  • 121
  • 1
  • 1
  • 3
11
votes
3 answers

Potentiometer Specs

I have a schematic for an audio amplifier that states that the volume potentiometer is 20KA. What does 20KA mean in the context of a potentiometer? I don't see anything else that states its total resistance.
jmatthias
  • 211
  • 1
  • 5
11
votes
4 answers

Why is my linear taper potentiometer nonlinear at the end points?

I purchased a rotary potentiometer with a linear taper. I assumed that this meant that from its lowest position to its highest it is linear in its resistance change. However, I've found that this only holds for approximately 180 degrees, after…
11
votes
2 answers

Potentiometers, little piece sticks off?

I'm not electronics savvy and am a complete newbie. So I'm in the middle of a project and am trying to stick a potentiometer through an aluminum casing and I placed a 1/16" piece of rubber between the fairly thick aluminum (A Hammond 1560BB…
HLatfullin
  • 181
  • 2
  • 12
9
votes
3 answers

Smooth rotary incremental encoders?

Do rotary incremental encoders exist that have the smooth feeling, as if turning a potentiometer? If so, does this have a name, how to identify these? I love the flexibility of encoders in my designs, but I don't like the clunky feeling.…
svenema
  • 467
  • 8
  • 17
9
votes
3 answers

How can I make my own potentiometer?

I want to create my own potentiometer for a project. Part of the reason is because I believe it'll be more adapted to my needs but I must admit that it seems like something really fun to do. I've read online that the resistive part of the…
Hilydrow
  • 217
  • 1
  • 2
  • 7
8
votes
6 answers

Limiting potentiometer to 10% and 90%

I am new to using potentiometers and I just wanted to see if this is possible, I know you can use resisters to alter the value of the potentiometer and starting values and so forth. I have a 5 V supply and from the wiper I would like a range of 0.5…
Dangermike
  • 83
  • 1
  • 3
8
votes
5 answers

Glitches from wirewound potentiometer

I'm having issues with deployed knob pots after they've been in use for a while. It's been an ongoing problem that we don't see at our local facility. I'm wondering if any of you may have experienced this problem, and more importantly, are aware…
Chris Knudsen
  • 3,368
  • 13
  • 20
6
votes
1 answer

How do I create a knob like on my amplifier

On my amp, I have a big round knob, that I can turn forever in both directions, to control volume. It simply turns up whenever I turn clockwise and down when I turn counter clockwise. There is no limit as to how far I can keep turning it. How do I…
Nicolai
  • 218
  • 2
  • 7
6
votes
4 answers

How to smooth potentiometer values

I have a linear actuator that has a pot in it. I am reading the value of the pot on my uC and I am noticing that the values are fluctuating wildly when the pot is changing (both up and down). The values don't ever seem to stabilize. I use the moving…
user3045
5
votes
5 answers

Potentiometer that goes to zero

Is there a special name for a potentiometer whose A-W or B-W resistance can drop to zero? I have a 1k +/-10% pot and I can only vary A-W or B-W resistance from 118 ohms to 1.2k. Note A, B refer to the outer pins and W the wiper pin.
Thomas O
  • 31,786
  • 58
  • 184
  • 322
5
votes
2 answers

What do you call four 'connected' potentiometers?

I know we have mono potentiometers and stereo potentiometers, when there are two potentiometers connected mechanically. What do you call a potentiometer consisting of four mechanically connected potentiometers? Do we have a name for it?
user17592
5
votes
1 answer

How does contact cleaner work?

I have been trying to fix up my turntable but I can't get the potentiometers at fault replaced because the knobs are glued on. I found online that the conventional solution for cleaning potentiometers is using contact cleaner. I stopped by home…
Sponge Bob
  • 5,243
  • 17
  • 46
  • 65
