I'm so much confused with so look-alike formulas ;

So to begin with:

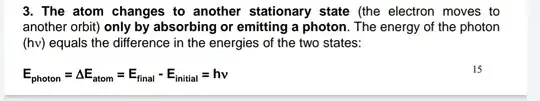

How is this

enter image description here

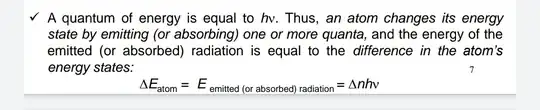

Different to this They are basically the same ΔEatom

enter image description here

And last question:

In this picture, we can use ΔEatom for any two energy states n

enter image description here

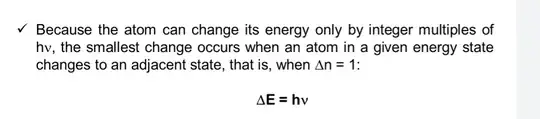

But here, they say we should use it inly for adjacent states (like n=1&2,etc...)

enter image description here

So can you please tell me the differences between all of these

Qmechanic
  • 220,844
Elie Makdissi
  • 101

1 Answers1

1

The first of your cited articles is wrong. it is not stated what $\Delta n$ is. maybe it should mean you could have to photons going from n3 to n2 and then from n2 to n1, but usually the have not the same $\nu$ the last article tells you of the smallest occurring $\nu$, but it says the same as the other two above.
