From physics courses, I'm told that (for Hydrojen atom only), for a given $\vec L$ of the electron,

$$|\vec L| * cos(\theta) = m_l,$$ where $\theta$ is the angle between the magnetic field and the orbital angular momentum $\vec L$.

Therefore, for example, if $\vec L$ lies on the $x-y$ plane, $L_z$ should be zero. However, when we see the value of $m_l$ for, say for $p$, subshell, they are $1, 0, -1$, and generally the orbitals are named as $p_x, py_, p_z$, and this confuses me. I mean if $\vec L$ is in the $z$ direction (i.e in the direction of $\vec B$), then $m_l = \pm 1$, and if it is on the $x-y$ plane, then $m_l = 0$, but naming implies as the values of $m_l$ are matched one-to-one to the names $p_x, p_y, p_z$, so am I confusing anything here, or the problem is just a silly naming of the orbitals ?

Our
  • 2,351
  • 19
  • 37

2 Answers2

1

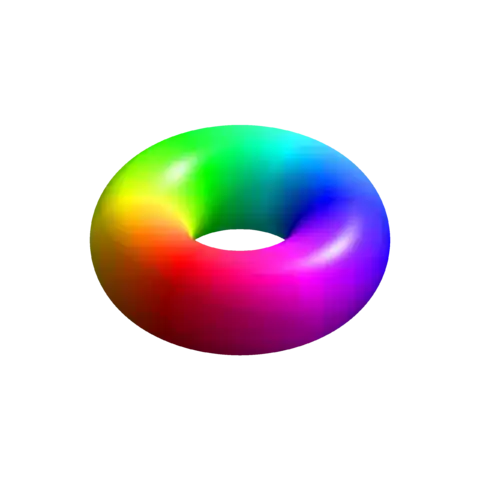

The $Y_{\ell m}$ are the spherical harmonics, with $Y_{1, -1}$ and $Y_{1, 1}$ rotating in opposite directions, eigenfunctions in spherical symmetry. Below is a figure of one of these hydrogen $2p$ orbitals, with complex phase coded as color. In an animation (when multiplied with the time dependent complex phase), the colors would circulate in one direction. For the other $Y_{\ell m}$ it would go in the other direction.

Spherical harmonic, phase as color

Now if these two spherical harmonics are added, this results in a standing wave, with static nodes and with static lobes of electron density, for example in the $x$ direction. Or when one subtracts them (adding with the opposite phase) an orbital with static lobes in the $y$ direction. The two linear combinations are appropriate to use in molecules where the spherical symmetry is broken.

0

Your $p_x,p_y,p_z$ do not map to $m_l=-1,0,1$, but in stead linear combinations. See the link in Pieter's second comment.

dannycbus
  • 1,153
