Impedance of the infinitely long circuit

Question

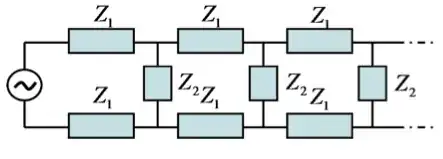

Is there a way to find impedance of the infinite circuit like this?

enter image description here

It will be much simpler if one has either parallel or series combination but here is both.

score 1 · Accepted Answer · answered Jun 17 '15 at 08:10

The standard trick is to split off the circuit after the first link,

enter image description here

and treat the 'tail' as another copy of the circuit itself. This means that the impedance $Z$ of the whole circuit must satisfy

$$ Z=2Z_1+\frac{1}{\frac{1}{Z_2}+\frac{1}{Z}}. $$

This gives a quadratic equation in $Z$ which is easy enough to solve.
