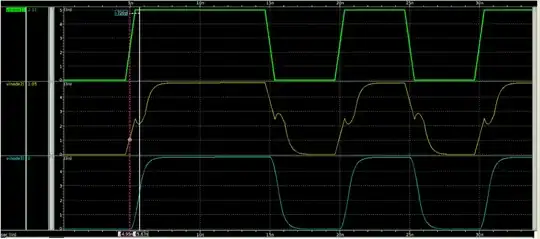

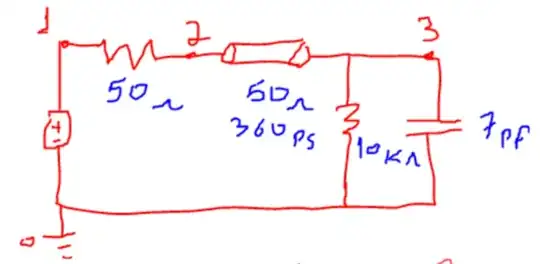

I have constructed the following circuit in HSPICE,and it gives me the following waveform

I know that we have the first wave hit node 3 then it goes back and again to node 3.

But how we construct the impedance to time domain plot from this voltage to time plot?

Thanks. enter image description here

enter image description here

Neil_UK
  • 166,079
  • 3
  • 185
  • 408
ron398
  • 157
  • 1
  • 8
  • I know that we have the first wave hit node 3 then it goes back and again to node 3 - that isn't true if the t-line is 50 ohm; there won't be a reflection at the source. But how we construct the impedance to time domain plot from this voltage to time plot? - I'm unsure what you are wanting to do here. – Andy aka Mar 11 '21 at 08:38
  • Hello Andy, i Want to know how using TDR (voltage to time plot)we find the source of the INSERTION loss problem if it arives.(exact location of problemtaic spot) – ron398 Mar 11 '21 at 08:48
  • 1
    Maybe this will help. Maybe this will help. I'm offering these QAs because I'm struggling to understand what it is you really want to know @ron – Andy aka Mar 11 '21 at 08:51
  • Hello Andy ,Th ecapacitor causes this small dip, i cant see why? could you plaese help me with the reflection logic here? Thanks. – rocko445 Mar 13 '21 at 18:59
