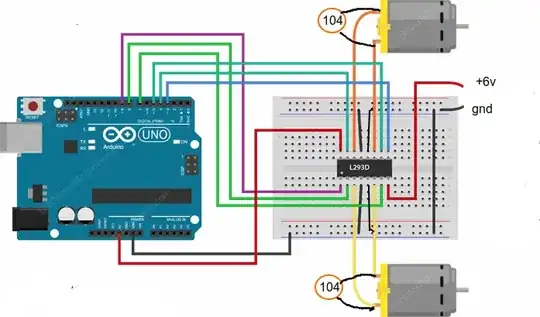

I set up this circuit which uses L293D motor driver IC to control two DC motors.

LM298D motor driver

+6V input is connected to unregulated power supply. It's current rating is 500 mA.

There is a connection between Arduino's ground line and power supplies ground line. There is a parallel 0.1 uF capacitor connected between motor terminal pins.

There is a wheel at the end of the motors but they don't have a gearbox. The wheels are suspended so that they can rotate freely.

The source code of the software is as follows.

#include <Arduino.h>

unsigned int firstMotorPositive = 8; unsigned int firstMotorNegative = 7; unsigned int enableFirstMotor = 9; unsigned int secondMotorPositive = 5; unsigned int secondMotorNegative = 4; unsigned int enableSecondMotor = 3;

void setup() { pinMode(firstMotorPositive, OUTPUT); pinMode(secondMotorPositive, OUTPUT); pinMode(enableFirstMotor, OUTPUT); pinMode(secondMotorPositive, OUTPUT); pinMode(secondMotorNegative, OUTPUT); pinMode(enableSecondMotor, OUTPUT);

// All motors are off
digitalWrite(firstMotorPositive, LOW);
digitalWrite(firstMotorNegative, LOW);
digitalWrite(secondMotorPositive, LOW);
digitalWrite(secondMotorNegative, LOW);

}

void speedControl() { digitalWrite(firstMotorPositive, HIGH); digitalWrite(firstMotorNegative, LOW); digitalWrite(secondMotorPositive, HIGH); digitalWrite(secondMotorNegative, LOW);

for (int i = 0; i &lt; 10; ++i)
{
    for (int i = 200; i &lt; 255; ++i)
    {
        analogWrite(enableFirstMotor, i);
        analogWrite(enableSecondMotor, i);
        delay(20);
    }
}

// All motors are off
digitalWrite(firstMotorPositive, LOW);
digitalWrite(firstMotorNegative, LOW);
digitalWrite(secondMotorPositive, LOW);
digitalWrite(secondMotorNegative, LOW);

}

void loop() { speedControl(); delay(1000); }

The problem is they need help to start rotating. They will only start rotating if I physically twist the shaft with my fingers first.

As far as I know the motors used in this circuit are two 6 volt DC motors.

When I measure the maximum voltage between motor terminals I read about 0.5 volts. If I twist the shaft I read about 4.5 volts.

It is interesting that, if I connect a small 1.5 volt battery between motor terminals they spin.

  • 2
    already asked at https://arduino.stackexchange.com/questions/79548/l293d-driver-dc-motors-need-help-to-start-rotating – jsotola Nov 23 '20 at 21:23
  • 1
    Do not repost questions you've already posted in the SE network. Also see the several existing questions here explaining why Darlington drivers such as the L293/L298 are horrible choices for low voltage, recognize that putting a wheel directly on such a motor is unworkable, and also pay attention to the fact that your code seems to be repeatedly and nonsensically turning the motor on and off each time through the loop outside of whatever PWM you were hoping for with the analogWrite() – Chris Stratton Nov 23 '20 at 21:26
  • Ok thanks. I asked it here because I thought that this question might be less Arduino and more electronics. –  Nov 23 '20 at 21:34
