Toxo
Role Two-seat light homebuilt cabin monoplane
National origin Spain
Manufacturer Construcciones Aeronauticas de Galicia
First flight 1999

The CAG Toxo is a Spanish two-seat ultralight cabin monoplane designed and built by Construcciones Aeronauticas de Galicia for amateur construction.[1]

Design and development

The prototype Toxo ultralight first flew in 1999 and was a low-wing cantilever monoplane with fixed tricycle landing gear. The Toxo can be powered typically by a 120 hp (89 kW) Jabiru 3300 or a Rotax 914S engine. The cabin has two seats side-by-side with dual controls, each with a centerline-hinged upward-opening door.[1]

Variants

Toxo
Variant approved as an ultralight

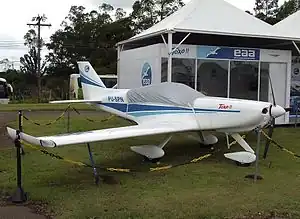

Toxo II
Variant approved in the VLA category.

Specifications (Toxo ultralight)

Data from Jane's All the World's Aircraft 1989-90[1]

General characteristics

  • Crew: two
  • Length: 5.40 m (17 ft 8.5 in)
  • Wingspan: 7.96 m (26 ft 1.5 in)
  • Height: 2.00 m (6 ft 6.75 in)
  • Wing area: 8.70 m2 (93.65 sq ft)
  • Empty weight: 280 kg (617 lb)
  • Gross weight: 472 kg (1,041 lb)
  • Powerplant: 1 × Jabiru 2200 , 64 kW (85 hp)

Performance

  • Maximum speed: 400 km/h (249 mph, 216 kn)
  • Cruise speed: 240 km/h (149 mph, 129 kn)
  • Stall speed: 64 km/h (40 mph, 35 kn)
  • g limits: +6/-4
  • Rate of climb: 5.1 m/s (1,000 ft/min)

References

Notes

  1. 1 2 3 Jackson 2004, p. 474

Bibliography

  • Jackson, Paul, ed. (2004). Jane's All the World's Aircraft 2004-2005. Coulsdon, Surrey, United Kingdom: Jane's Information Group. ISBN 978-0-7106-2614-1.
