I am trying to understand the math behind the following applications of gates on three qubits:

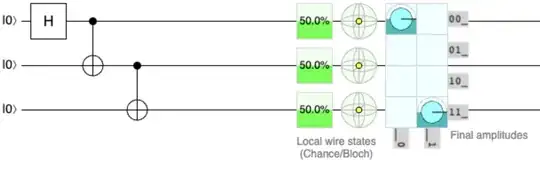

enter image description here

You can view this via the Quirk simulator here:

https://algassert.com/quirk#circuit={%22cols%22:[[%22H%22],[%22%E2%80%A2%22,%22X%22],[1,%22%E2%80%A2%22,%22X%22]]}

What I have so far is the following:

(1) The first qubit begins in state

$ \begin{bmatrix} 1 \\ 0 \end{bmatrix} $

Any applying Hadamard gives:

$ \begin{bmatrix} \frac{1}{\sqrt{2}} & \frac{1}{\sqrt{2}} \\ \frac{1}{\sqrt{2}} & -\frac{1}{\sqrt{2}} \end{bmatrix} \times \begin{bmatrix} 1 \\ 0 \end{bmatrix} = \begin{bmatrix} \frac{1}{\sqrt{2}} \\ \frac{1}{\sqrt{2}} \end{bmatrix} $

(2) The next step is to apply the CNOT gate to the first two qubits. I compute the tensor produce of the states of the first two qubits in the following way:

$ \begin{bmatrix} \frac{1}{\sqrt{2}} \\ \frac{1}{\sqrt{2}} \end{bmatrix} \otimes \begin{bmatrix} 1 \\ 0 \end{bmatrix} = \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ \frac{1}{\sqrt{2}} \\ 0 \end{bmatrix} $

Then, apply CNOT:

$ \begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 1 \\ 0 & 0 & 1 & 0 \end{bmatrix} \times \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ \frac{1}{\sqrt{2}} \\ 0 \end{bmatrix} = \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ \frac{1}{\sqrt{2}} \end{bmatrix} $

Now I have the first two qubits in an entangled state.

(3) In step three, I need to apply the CNOT gate to the second and third qubits. This is where I am unsure the correct way to do the math. I cannot just multiple the second and third qubits by the regular CNOT matrix independently, because the first and second qubits are entangled. One guess is that I need to create the state vector representing all three qubits:

$ \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ \frac{1}{\sqrt{2}} \end{bmatrix} \otimes \begin{bmatrix} 1 \\ 0 \end{bmatrix} = \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \frac{1}{\sqrt{2}} \\ 0 \end{bmatrix} $

(NOTE: I edited the math above. When the question was initially posted it had the wrong result for the tensor product.)

What is the proper matrix to multiply this by? What is the technique to construct a version of the CNOT gate that will work for this length-8 state vector with two qubits already entangled?

Thanks.

bddicken
  • 143
  • 6

1 Answers1

1

The answer to this problem is a combination of (1) The original poster (ME!) had done a tensor product in the wrong order and (2) multiplying by $I \otimes CNOT$ as @jecado suggested. I am providing the answer here for completeness.

(1) It is important to keep in mind the order of tensor products when combining the states of multiple qubits into a state vector. For example, if you have two entangled qubits and then want to incorporate a third qubit into the state vector, you could do the math one of two ways:

$ \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ \frac{1}{\sqrt{2}} \end{bmatrix} \otimes \begin{bmatrix} 1 \\ 0 \end{bmatrix} = \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \frac{1}{\sqrt{2}} \\ 0 \end{bmatrix} $

or

$ \begin{bmatrix} 1 \\ 0 \end{bmatrix} \otimes \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ \frac{1}{\sqrt{2}} \end{bmatrix} = \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ 0 \\ 0 \end{bmatrix} $

Neither of these are wrong in a vacuum, but each is a different way of "concatenating" the state of the qubits. The former adds the $|0\rangle$ qubit as the right-most qubit (least significant qubit) and the latter as the left-most qubit (most significant). Ensure the order that you complete tensor product in matches your needs.

(2) As @jecado suggested $I \otimes CNOT$ is the correct matrix to multiply here. to create this:

$ \begin{bmatrix} 1 & 0 \\ 0 & 1 \end{bmatrix} \otimes \begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 1 \\ 0 & 0 & 1 & 0 \end{bmatrix} = \begin{bmatrix} 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 \end{bmatrix} $

With this matrix, the multiplication can be peformed to get the correct pre-measurement state vector from the circuit diagram shown in the question:

$ \begin{bmatrix} 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 \end{bmatrix} \times \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \frac{1}{\sqrt{2}} \\ 0 \end{bmatrix} = \begin{bmatrix} \frac{1}{\sqrt{2}} \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ \frac{1}{\sqrt{2}} \end{bmatrix} $
