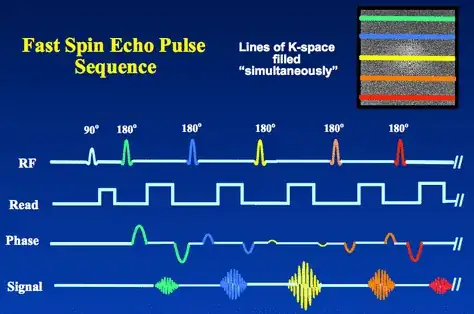

The slice selection gradients, as well as the phase and frequency, in MRI imaging are traditionally represented by on/off box or rectangular symbols:

enter image description here

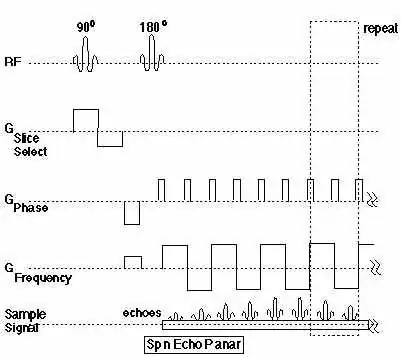

or

enter image description here

My question is what is the mathematical name for these functions - it would be the equivalent of multiple rectangle functions, periodic or not. For example:

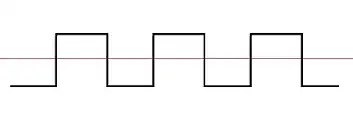

enter image description here

or

enter image description here

Antoni Parellada
  • 954

1 Answers1

0

They are usually simply called trapezoidal waveforms or trapezoidal gradients. The vertical edges are not possible, the maximum change in gradient strength with respect to time (dG/dt) is called the slew rate. In modern MRI systems it is on the order of 200 mT/m/ms
