Imagine 2 parallel antennas (wires) of equal length (a) with a distance r between them.

Both have AC currents with identical sine waveforms (equal frequencies and amplitudes). They are also in phase with each other.

Edit: The distance between them (r) is equal to half the wavelength due to the frequency of AC, (r=λ/2) so there's no phase delay between them.

Editing the edit above: It turned out that (thanks to Void for making me aware of this), another restriction concerning the "near field equation" for the antennas is necessary here. The distance r should be far enough to let the EM fields "settle down" and become more like plane waves before they hit the other antenna/wire. The minimum distance for this is calculated as,

enter image description here unless I misunderstood anything.

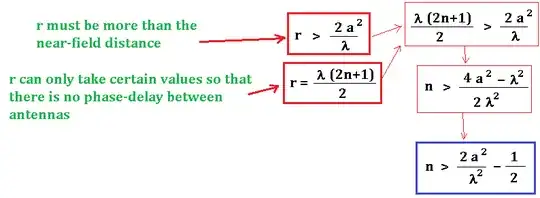

For the distance between the wires, therefore, I assume the two conditions below are satisfied:

enter image description here

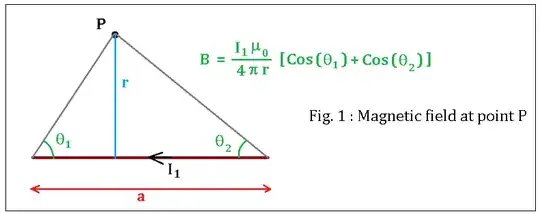

I’m trying to calculate the average force between these wires (which must be an attractive force) by using very simple math: I know the magnetic field at point p, caused by a current of finite length wire is given by,

enter image description here

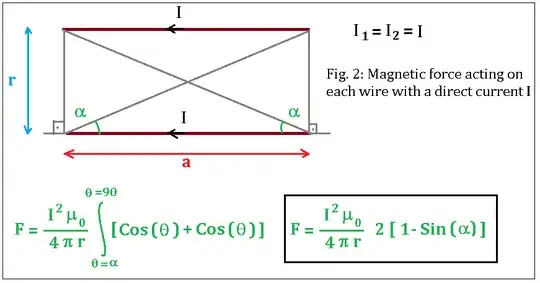

By integrating the magnetic field of I1 over a length of an opposite wire and multiplying with the current I2 at each point of that opposite finite wire, I think I found the magnetic force acting on each wire:

enter image description here

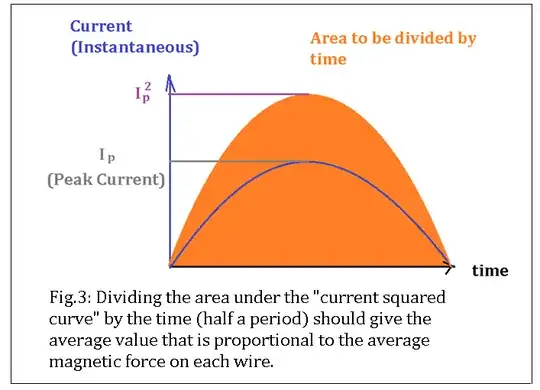

Now I have to use this equation in an AC situation. Currents are in phase, so I thought their average multiplication (averaged by time) could be calculated by dividing the area under the curve of current squared, by the time of half a period (which is simply pi).

enter image description here

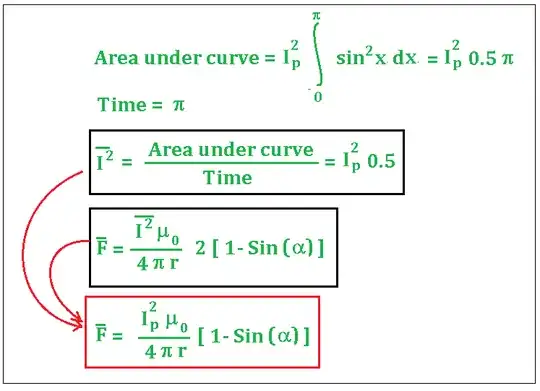

So the average force between wires should be:

enter image description here

No need to complicate this equation any further by defining the angle alpha in terms of lengths a and r.

I brought different pieces of knowledge together to form a new one and when I do this, it usually turns out to be wrong so I can’t be confident about this equation.

I have two concerns (edit: now a third one):

1- I'm not sure if I calculated the area under the curve correctly.

2- If two such antennas applied a force to each other, this force should somehow be related to the antenna power or antenna gain. But when calculating the antenna power, I see that not only the magnetic field but also the electric field is taken into account. It becomes more than a simple DC "Amperian situation”. It’s electromagnetic. But where is the electric field in this method? Am I missing something?

3- About the "near field" approach; as far as I understand, because the instantaneous current and voltage are not the same at various segments of the antenna during the oscillations, the EM field is also complicated at close range relative to the antenna length and also relative to the gradients of instantaneous voltage and current values over the antenna (which is related to the frequency and wavelength). But I can't be certain about the equation I used. According to the equation, the antennas could be as close as about 1/2 or 1 wavelength. However, in practice, the minimum distance is often told to be greater than 2 to 10 wavelengths to stay away from the near-field (aka. the reactive field). So what would be the correct equation for the "near field" boundary condition?

golden_hawk21
  • 1,086
Xynon
  • 331

1 Answers1

0

Even if you are interested in finite wires, you can try to estimate the bulk effect neglecting the tips. This is just the limit of infinite wires. Each wire has a temporally sinusoidal, spatially uniform current that are in phase. Choose the units so that $\mu_0=\epsilon_0 =1$ and temporal dependence: $$I = e^{-i\omega t}$$ In cylindrical coordinates, the magnetic field generated by a single wire is orthoradial (taking the casual solution): $$ B_\phi = \frac{i\omega}4H_1^{(1)}(\omega r)I $$ When separated by a distance $r$, the time average of force $F$ diverges as $a\to\infty$. However, it diverges linearly, so setting $F = af$ with $f$ the force per unit length, you get (extra factor two to take into the electric force due to the accumulated charges at infinity): $$ \begin{align} f &= \Re(I^*B_\phi) \\ &= -\frac\omega4Y_1(\omega r) \end{align} $$ and when separated by half a wavelength: $$ f = -\frac\omega4Y_1(\pi) $$ Notice that (as expected), you cannot apply the near field in this regime, you need the full radiative expression to get the correct force. However, taking $r\ll\lambda$ does give you Ampère's force law as expected.

For a wire of finite length $a$, $I$ now acquires a $z$ dependence: $$ I = \text{rect}(z/a)e^{-i\omega t} \\ \text{rect}(x) := \begin{cases} 1 & |x|<1/2 \\ 0 & |x|>1/2\end{cases} $$ By Fourier transform: $$ \hat I = a\text{ sinc}(k_za/2)e^{-i\omega t} \\ I = \int \hat Ie^{ik_zz}\frac{dk_z}{2\pi}\quad \hat I = \int Ie^{-ik_zz}dz $$ This changes the magnetic field to: $$ \hat B_\phi = \begin{cases} \frac{ik_r}4H_1^{(1)}(k_rr)\hat I & \omega^2 > k_z^2 \\ \frac{k_r}{2\pi}K_1(k_rr)\hat I & \omega^2 < k_z^2 \end{cases} $$ where: $$ k_r = \begin{cases} \text{sgn}(\omega)\sqrt{\omega^2-k_z^2} & \omega^2 > k_z^2 \\ \sqrt{k_z^2-\omega^2}& \omega^2 < k_z^2 \end{cases} $$ Using the same formula, you get the complicated expression of the total force: $$ \begin{align} F &= \int \Re(I^*B_\phi)dz \\ &= -\int_{|k_z|^2<\omega^2}\frac{k_r}4Y_1(k_rr)a^2\text{sinc}^2(k_za/2)\frac{dk_z}{2\pi}+\int_{|k_z|^2>\omega^2}\frac{k_r}{2\pi}K_1(k_rr)a^2\text{sinc}^2(k_za/2)\frac{dk_z}{2\pi} \end{align} $$ which does not simplify much at a distance of half a wavelength $r = \pi/\omega$.

At best, you have another simple limiting case: $a\to0$. The force $F$ now vanishes. This time the extensive variable is $F = a^2f$: $$ \begin{align} f &= -\int_{|k_z|^2<\omega^2}\frac{k_r}4Y_1(k_rr)\frac{dk_z}{2\pi}+\int_{|k_z|^2>\omega^2}\frac{k_r}{2\pi}K_1(k_rr)\frac{dk_z}{2\pi} \\ &= -\frac{\omega^2}{2\pi}y_1(\omega r) \end{align} $$ I did not calculate the integral by brute force. Instead, notice that in the vanishing length limit, the wires form Hertz dipoles. The magnetic field is therefore: $$ B_\phi = \frac{i\omega^2a}{2\pi}h_1^{(1)}(\omega r)I $$ Once again, at a distance of half a wavelength, there is no simplification: $$ f = -\frac{\omega^2}{2\pi}y_1(\pi) $$ In fact, imagining your wires as superpositions of many Hertz dipoles, you can get a new formula for $F$, which is easier to handle in the $a\ll\lambda$ limit.

In short, your approach is not salvageable. At half wavelength, you need to take into account the full radiative field. Even the force at the extreme values of $\alpha = 0,\pi$ is not straightforward, and interpolating between the two regimes is a complicated formula.
