'07 Cobalt. A/C clutch fuse was blown. The clutch circuit now reads open to ground, so it seems something catastrophic happened. I am considering what a repair would involve.

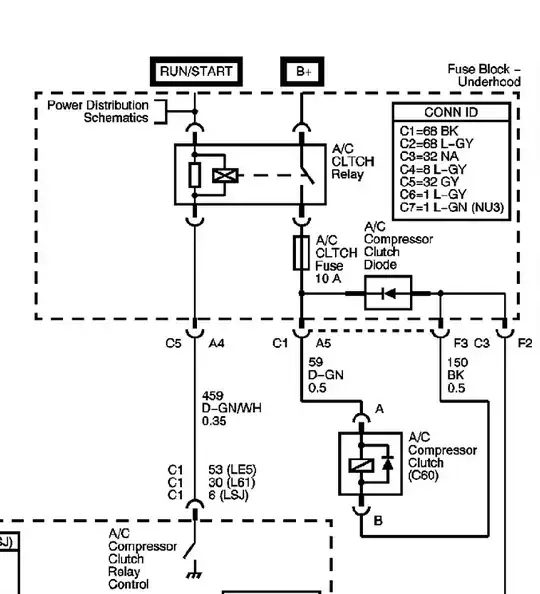

The schematic (below) shows two clamp diodes for the clutch coil - one internal to the clutch, the other in the fuse block. Meter-testing the circuit with polarity reversed also reads open, indicating that the diode(s) are non-conducting. So, it/they would need replacement.

The problem is, I find no diode on the fuse block. IDK why there should be two diodes anyway, so I wonder if this might be an error in the schematic - maybe a cut/paste from an older design, where the (single) diode was in the fuse block. In support of this, GM once had a plug-in diode that looks designed to fit fuse block type connectors.

So, my question: is there really supposed to be a diode in the fuse block?

OEM schematic, fr Alldata

DavidRecallsMonica
  • 3,685
  • 2
  • 19
  • 31
George
  • 1,133
  • 12
  • 18

1 Answers1

0

Just to keep this from popping up in the future ...

  • It looks like some GM makes/models/years did have a clamp diode in the fuse block. I'd guess that's why it shows in my schematic.
  • If there was a diode in the fuse block, it appears it would plug in like fuse. There isn't any such in this car, so I don't have one - the only clamp diode is the one (presumably) across the clutch coil.

End of story.
