I am trying to design an ELD device that could be connected to the deutsche 9 pin and 6 pin port on heavy-duty vehicles. Is there any place where I can get the pinout configuration of these ports for different brands? I am looking for the pinout configuration of these trucks (Freiglighner, Kenworth, Peterbilt, International, Volvo, Mack, WesternStar).

Thank you

Adnan
  • 51
  • 2

1 Answers1

7

Isn't it a standard, so all vehicles are wired the same (for a given connector)?

The following information comes from the Handbook of hardware schemes, cables layouts and connectors pinouts website.

Here is the SAE J1708 9-pin connector.

enter image description here

enter image description here enter image description here

H,J are not connected. A and B are twisted in cable. C and D are twisted in cable. F and G are twisted in cable.

SAE J1708, although still widely used, is replaced by SAE J1939 which is a CAN protocol. They both apparently use the same connector, but I don't know how you would establish which system is used.

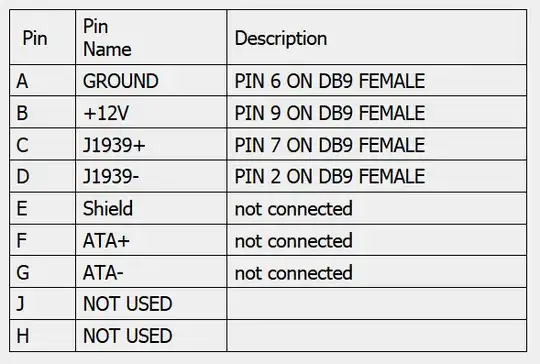

Here is the SAE J1939 9-pin connector

enter image description here

This is the connection currently in use, with the same physical 9-pin connectors.

Here is the SAE J1587 6-pin connector.

enter image description here

enter image description here enter image description here

The 6-pin Deutsch-connector was standard from 1996 to 2001.
