Bought a new upper o2 sensor but the clip on wiring harness is melted so I want to straightwire them to o2 sensor.

  • Harness wires... black, tan, gray, green with orange stripe
  • Oxygen sensor... black, gray, white, white
Pᴀᴜʟsᴛᴇʀ2
  • 165,084
  • 32
  • 259
  • 508
Erica Hiatt
  • 1

1 Answers1

2

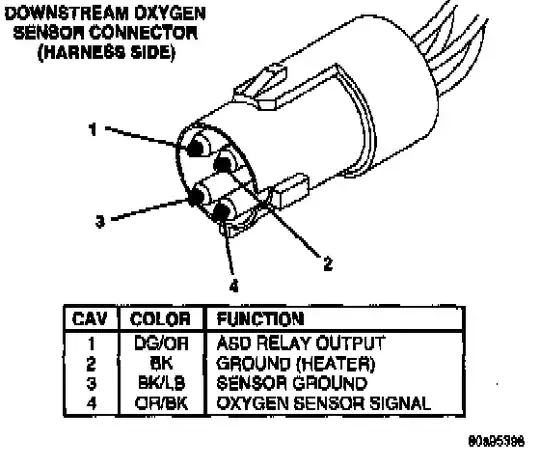

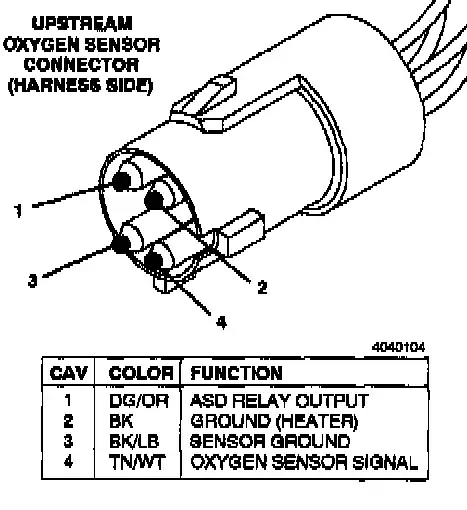

Here are the pinouts for the truck harness side of the O2 sensors, upstream and downstream. This should give you a sense of wire color and clock location in the plug.

You may need to go to the parts store and take a picture of an undamaged O2 sensor to get things connected properly.

enter image description here

enter image description here
