Got P0420 and P0430 codes, suggesting the catalytic converter needs to be replaced. Everything I have read suggests the wave form after the cat ( sensor 2) should be a delayed version of before the cat ( sensor 1 ). Is this correct?

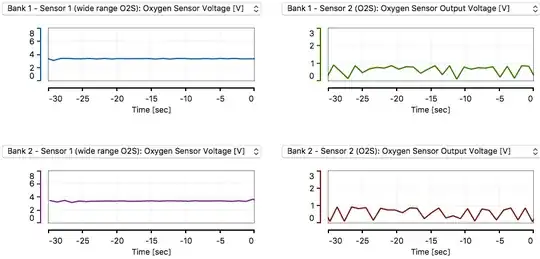

What I am seeing is below. This figure is from an OBD software tool. I didn't believe so I double checked by actually connecting to the pins in the ECM as described by the Toyota service manual. I didn't have a scope, but I saw a constant 3.3 volts on sensor 1 and variable voltage on sensor 2 between between 0 and 1 volt. So that seems to conform these graphs.

I'm a novice at auto repair but have some engineering in my past. Can anyone explain this? Is my cat bad? Should I replace it? Thanks from an old retired guy trying to save a buck.

enter image description here

enter image description here

Charlie Burns
  • 163
  • 1
  • 1
  • 6

1 Answers1

2

The readings for the front the sensor 1, sensors look normal. These are air-fuel ratio sensors not standard oxygen sensors. The 3.3 volts is a PCM generated representative voltage. It is not the actual output reading. That would be in milliamps. It will stay relatively steady as long as the mixture does not change rapidly.

The rear sensors are standard oxygen sensors. These readings, with the swings up and down from .2 to .8 volts, are indicative of failed catalysts. Good catalysts would be showing steady voltage readings.
