I have a veglia oil pressure gauge from a fiat coupe 16v. On the reverse of the clock is 4 pins, the top and left ones are labeled negative and positive respectivly, but can anyone tell me what the other 2 pins are for?

javawocky
  • 145
  • 3

1 Answers1

1

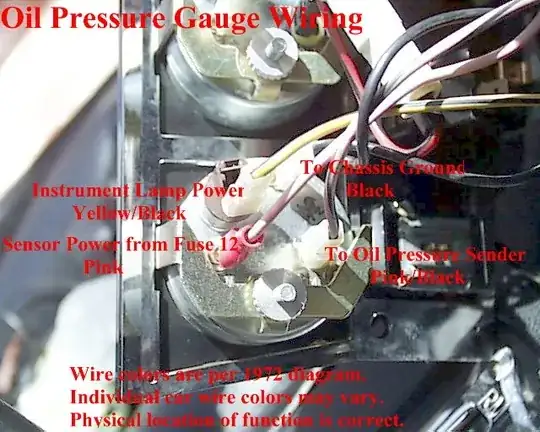

I think this diagram will help. This is for a Pantera, but it is a Veglia gauge. Don't pay any attention to the colors they mention, but everything else should be golden for you.

enter image description here
