Recently, my ATV (a 1997 Yamaha Big Bear 350 2x4) developed a carburetor issue where it would run rich. I took it to a mechanic who says that it needs a new carburetor. However, he was unable to find one.

Manufacturer: Mikuni Corp.
Model Number (partial):
First Line: 4WU 20
Second Line: ???42

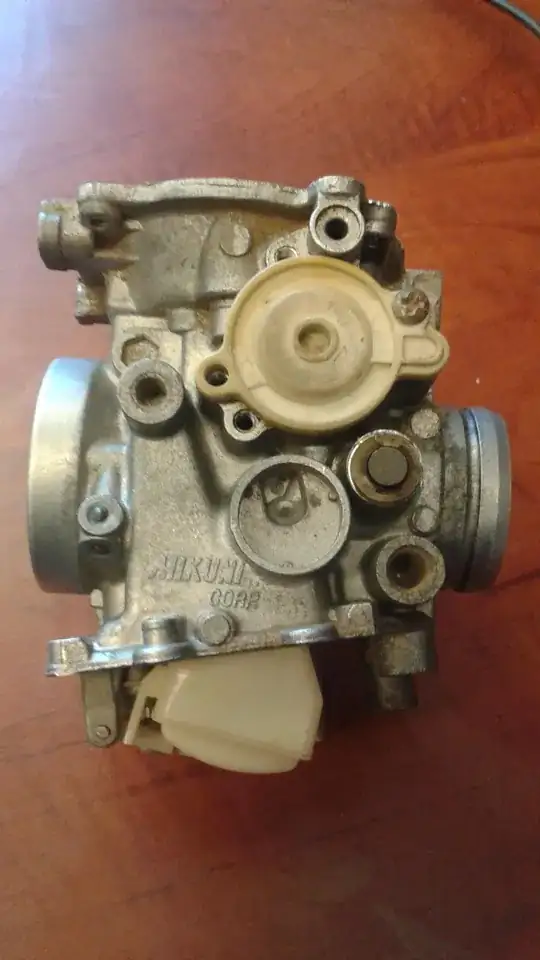

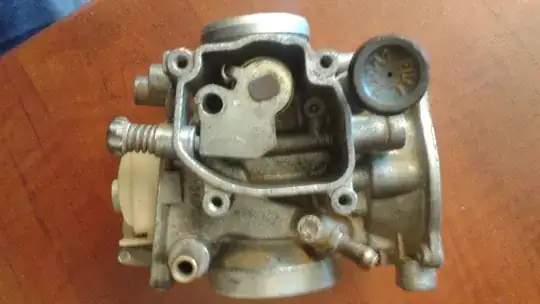

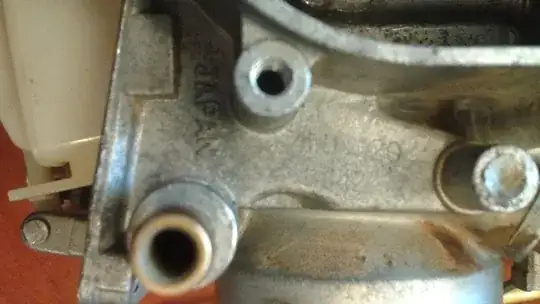

enter image description here enter image description here enter image description here

Is there any way I can get the full model number of this carburetor?

Kaz Wolfe
  • 163
  • 1
  • 1
  • 5

1 Answers1

3

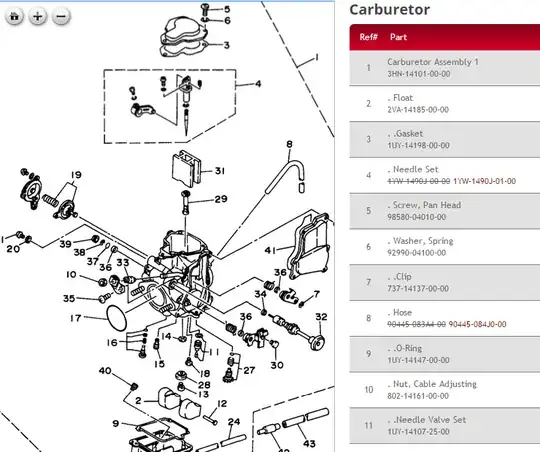

Here is the part number for your carb. This is for an OEM Yamaha carb.

3HN-14101-00-00

enter image description here
