I don't have a particular camera in mind right now, I'm just curious how this is done, programmatically/mathematically.

I have a 3D space, a rectangle, with a camera up in one corner looking inwards.
I have a moving object in that rectangle that's transmitting (x, y, z) coordinates of its current position.
I want to take those coordinates and translate them into instructions telling the camera to point at that position.
How is this translation typically done?

anonymous2
  • 4,902
  • 3
  • 22
  • 49
mal
  • 193
  • 1
  • 4

3 Answers3

10

Trigonometry !

My camera is a DLink 5020-L and has pan/tilt commands which can be given through an API. It also has predefined positions to set and can also be triggered through API

Pre-init

  • Define a position of your camera to a 0° Pan and a 0° Tilt in your referential => we will call this position Position 1

Init

  • Move your camera to Position 1
  • Store somewhere the pan/tilt of your camera, either in 0-initialized variables or through your API

Look at object

  • Locate your object in two planes, the X,Y and the Y,Z planes
  • You can get then the pan (left/right) angle (omg mathematics formulae in an IoT SE!)

$$\arctan\bigg(\frac{y}{x}\bigg)$$

  • You can get then the tilt (up/down) angle

$$\arctan\bigg(\frac{z}{y}\bigg)$$

  • Don't forget to save/update the new pan/tilt value since you might work with relative movement...

You might negate the previous results depending on how your camera is placed

(I'll add some schematics when I have time)

Community
  • 1
Goufalite
  • 3,776
  • 17
  • 33
6

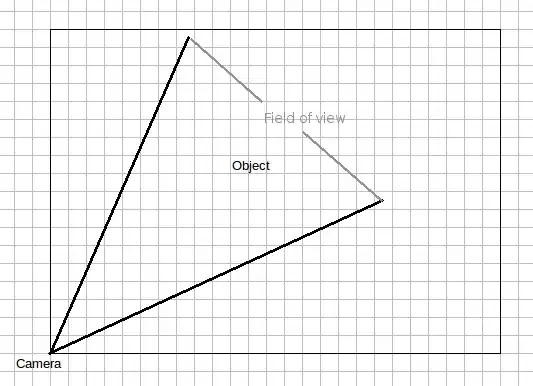

Great answers already, I'd just like to add a few other things that you should take into consideration. Like hardlib and Goufalite have already mentioned, the way to do this is trigonometrically. I've drawn out a 2-d depiction of the camera and the IoT object:
