Ryobi P411 Motor Replacement

Written By: Paula Meier
  • Comments: 0
Ryobi P411 Motor Replacement

Difficulty

Difficult

Steps

9

Time Required

35 - 45 minutes

Introduction

Use this guide to replace a defective motor in your Ryobi P411. The motor is the part that is inside the sander that activates the machine when the switch trigger and switch are depressed. If your device is not turning on, the cause might be a defective motor. Before replacing the motor, make sure to review the troubleshooting page to make sure nothing else is preventing your Ryobi P411 from turning on. Make sure to remove the battery before beginning.

Replacing the motor requires desoldering and resoldering a couple of connections. Review the How to Solder and Desolder Connections guide before beginning if you're unfamiliar with soldering.

  1. AqS5oXlJPL3shJcS
    AqS5oXlJPL3shJcS
    bKOJIQ5MRkjGiIph
    jEETMneQ6gTVVAqX

    • Remove the sanding pad to expose the screws at the bottom of the sander.

  2. i2622lUbyoV2cBeh
    i2622lUbyoV2cBeh
    C3HPYiwsXUCf4lcr
    jESSOUddUEVwJO1j

    • Remove the four M5 x 8.9mm screws with a T6 Torx screwdriver.

    • Remove the pad assembly.

  3. omJh1dDvKiHFLLep
    omJh1dDvKiHFLLep
    NPARTf5qpJNvOCiQ
    OWuWnxmOLIOMAuqW

    • Push the switch trigger gently from the back to pull it out from the open face of the sander.

  4. cVZ4EUyobKZMTCYT
    cVZ4EUyobKZMTCYT
    Ys1dPO1XKDZaR5sl
    Cu6H4tNH3ieTR3nu

    • Remove the switch from its housing.

    • Take care not to strain the connected cables.

  5. Xi6FBQH2RVZXHKWu
    Xi6FBQH2RVZXHKWu
    JFbA4JkseqxswMeE
    OeMGrZJBQHgZlkIA

    • Use a soldering iron to desolder the two switch connections.

    • If you're unfamiliar with soldering, review this guide.

  6. IpYO4BwoLeGB4y2K
    IpYO4BwoLeGB4y2K
    LIoPJIikIShxuTbD
    2p6KXiMLUYpiJURn

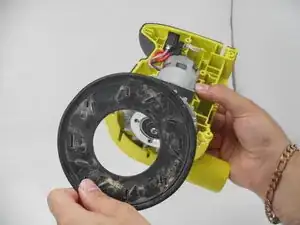

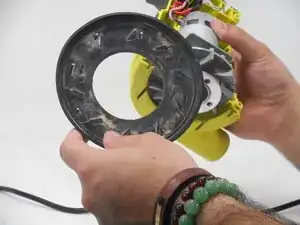

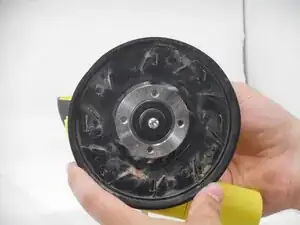

    • Remove the rubber brake from the bottom of the sander.

  7. 3glM3f46HndHYPP4
    3glM3f46HndHYPP4
    M3mmd3WMULLU3m1Y
    MQ2ZM4XSvJaAnTba

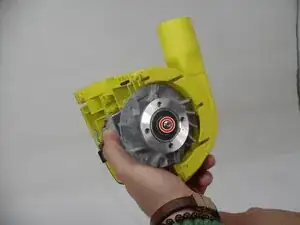

    • Use a T20 Torx screwdriver to loosen the 15.8 mm screw at the bottom of the sander.

    • Remove the screw and washer.

  8. KAYaiGmGATSRvfjL
    KAYaiGmGATSRvfjL
    dbLMaNUNMgyZtBwI
    nF6FQC3o1MxWrFSd

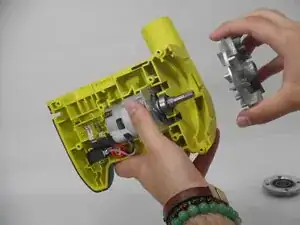

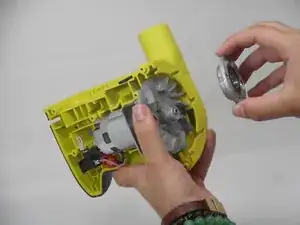

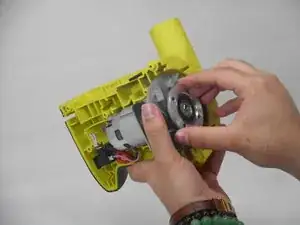

    • Remove the fan and bearing cap.

  9. BqwtPfCAHxe6FDUK
    BqwtPfCAHxe6FDUK
    MmGXZJkZUawBUoTW
    mbXBEmgQeEFHo2jZ

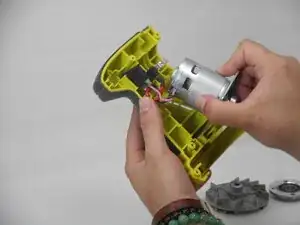

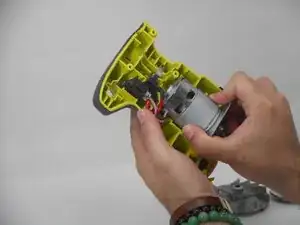

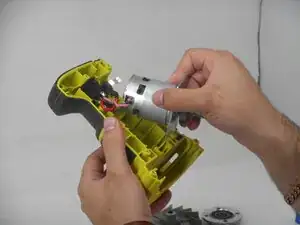

    • Desolder the motor connections from the switch and power supply.

    • Remove the motor from its housing.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
