JBL Flip 4 battery replacement - push out - usefull tipps for stucked battery

Written By: TheEngineer
  • Comments: 1
JBL Flip 4 battery replacement - push out - usefull tipps for stucked battery

Difficulty

Moderate

Steps

9

Time Required

45 minutes

Introduction

In some cases the battery block / stuck extreme hard inside. You can push it out, with a appropriate tool.

guide "JBL Flip 4 Battery Replacement" for blocked (swollen) battery.

A precise study the of the guide JBL Flip 4 Battery Replacement is required before starting (there are lot of useful comments). _

  1. FgSaLnSZjNGkPRqD

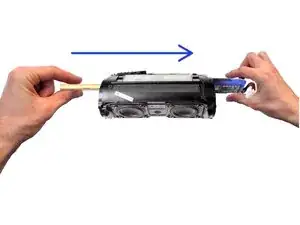

    • We want to press out the battery

  2. dJgSW2XZMNJgrL4M
    dJgSW2XZMNJgrL4M
    LShC2kLLimfqBOdY

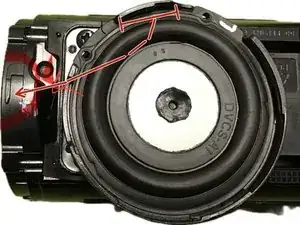

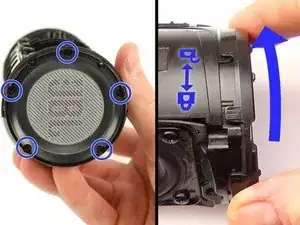

    • twist or remove screws (depends on your model-version) from the cap.

  3. AWMbUgU5WnZG4XUg
    AWMbUgU5WnZG4XUg
    fb2ZBUeZPfmMLwQY
    kTHNdCFaZpScX2i5

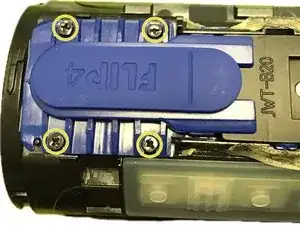

    • Unscrew the USB-Modul.

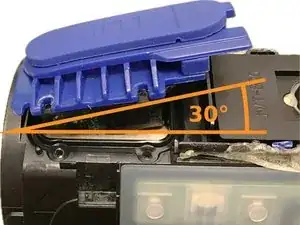

    • Tilting the USB-Modul a bit (example: around 30 degrees)

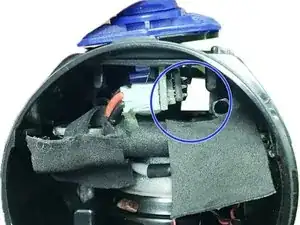

    • The battery should be more visible now (image without battery).

    • or alternative remove the whole USB-Modul.

  4. xwEQ5sZwOQCtHykt
    xwEQ5sZwOQCtHykt
    hAwKi5UjIOMdnDh2

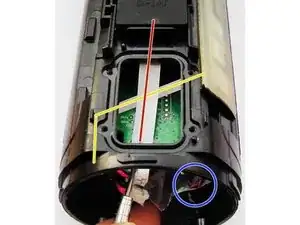

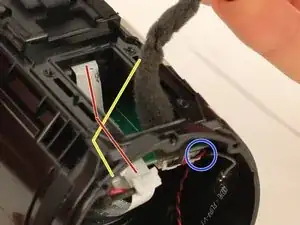

    • There are sensitive cables around, which are often hidden by black adhesive tape:

    • black flat flex / ribbon cable (here in image white) directly behind the USB-Modul,

    • black flat flex / ribbon cable (here in image white) across the flat,

    • thin microfon-cable, which rip off easily. Pull adhesive tape careful down.

  5. jFPDBkQPRmSgdcBL
    jFPDBkQPRmSgdcBL
    OhaHL2oLfXWaMTlh
    4x4qLsJMYCJppPn2

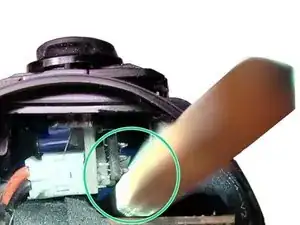

    • The tool can be pencil or wood cooking spoon. Use the flat side end, to prevent damaging to the battery.

    • Too tight or tool is too thick?: Bedder remove the entire USB-Modul, if it does not fit well. A damaged cables would results in more work, then just unplugging this modul.

    • Put the tool carefully on right side of the USB-Modul in. It's not allowed to be blocked by something. Nor on the side or down side.

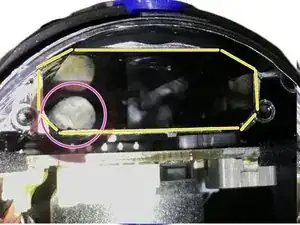

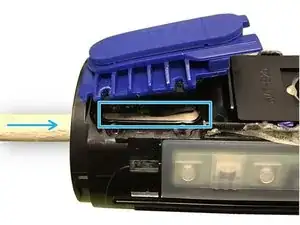

    • The image shows the tool, after the battery was pressed out.

  6. 2OJtDoQeBXaQUVWY

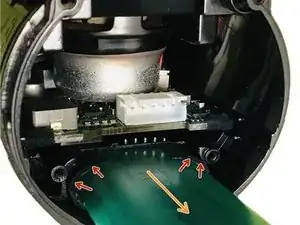

    • Maybe you can use a alcohol liquid to improve gliding properties. It will evaporation residue-free (in opposite of oil). If there are some glue remains from before, that can be also removed more easier.

  7. CMQw5KHUVeKVdJIF
    CMQw5KHUVeKVdJIF
    WeqXfQQGFkNgwPfr

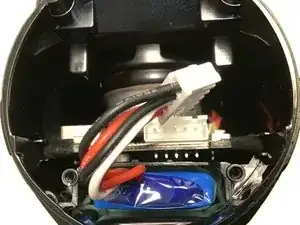

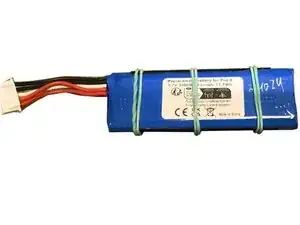

    • The old battery are mounted by sponge rubber. By the bloat / expansion of the battery it's to big to push / pull out the old battery.

    • To improve mount, you may can add some rubber band to the battery. That will results the same like sponge rubber. It may also prevent too much heat at the battery.

    • The new battery is perfect centered in position.

  8. sVsMnPQqZcdnWAcw
    sVsMnPQqZcdnWAcw
    ZxxUtB5hTXEr3jIf

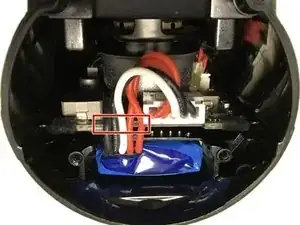

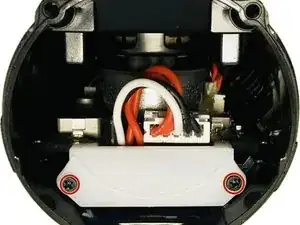

    • Sort the battery cables: None of the cables inside should be upon the other.

    • Put the cap back.

  9. qNGuemQXYbgDqaGf
Conclusion

To reassemble your device, follow these instructions in reverse order.
