Asus ROG G20CB CPU Replacement

Written By: Kimber-Starr
  • Comments: 0
Asus ROG G20CB CPU Replacement

Difficulty

Moderate

Steps

13

Time Required

20 minutes

Introduction

The Asus ROG G20CB is a powerful compact gaming desktop, but upgrading or replacing its CPU can breathe new life into the system. This guide covers safely removing the old CPU and installing a new one. It requires careful handling to avoid damaging delicate components.

  1. HIWZTdRdyrdEGQEm
    HIWZTdRdyrdEGQEm
    pSt6SnOcCbHpeH6P

    • Remove each of the two 4.6 mm Phillips screws on the top and bottom of the tower.

  2. O3MRNAQ5hn5NnvfB

    • Slide the front panel to the left and lift gently.

    • There is a cable connecting the panel to the computer. Handle it gently and avoid straining the connected panel.

  3. sGk1HM5WhVEMqObM

    • Disconnect the cable carefully by pulling gently on both sides of the connector.

  4. oOkwnwdBmCmxlgcU

    • Remove the five 4.6 mm Phillips screws holding down the fan tray and then pull the fan tray out of the system.

    • The fans are connected by a thin cable, be gentle when removing tray.

  5. TylPQQAhqE11bf4X

    • Carefully unplug the two fan cables from the motherboard by pulling straight up from the base of the connector.

  6. Wn2tQyPqIfWMqp1H

    • Remove the six 4.6 mm Phillips screws connecting the fans to the fan tray.

  7. w3RCfgEeSr2MDd2k

    • Remove the 4.6 mm Phillips screw that secures the optical drive.

  8. RXuHD4iRt6J5FWVv

    • Push the optical drive out of the chassis.

  9. yKF6QEYCDFTwRigF

    • Pull back the tape on the heat sink and use a long-neck Phillips screwdriver to remove the four screws securing the heat sink.

    • There is a number next to each screw, when taking the cooler off, loosen in descending order (4-3-2-1). When installing a cooler, tighten in ascending order.

  10. PgSETVABIw4MkDPS

    • Remove the 4.6 mm Phillips screw from the heatsink at the top of the case.

    • Lift the CPU cooler out of the system.

    • Be sure to apply fresh thermal paste before reinstalling a cooler.

  11. bb516PjlbJLy44Hm

    • Locate the CPU socket retention arm next to the processor.

    • Push the arm down and out, then lift it upward to release the CPU cover.

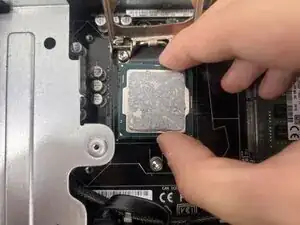

  12. AQ2l1KYJJMLj3XGP

    • Gently lift the CPU straight out of the socket.

    • Handle the CPU by its edges. Do not touch the bottom pins or contacts to avoid damage.

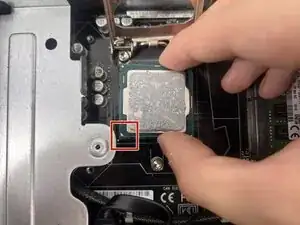

  13. sL1k3ncOVgURQSoR

    • Reassembly tip: When installing a new CPU make sure to align the gold triangle with the white circle on the motherboard.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
