Cheap way of temperature testing my boards

Question

I want to make sure my product will work over a large temperature range of -40C to +75C. I can verify on the low end down to about -18C using a household freezer (which is probably good enough) but I'm not sure how to test it on the high end. Any tips?

score 5 · Answer 1 · answered Jan 17 '11 at 13:26

5

I've resorted to cardboard boxes with air holes cut into them - allow the product to slowly warm the air inside to the desired temperature and control ventilation to keep it somewhat steady. If more heat is needed, put a power resistor inside the box and use a regulated DC supply to control how much heat it adds to the environment.

answered Jan 17 '11 at 13:26

Adam Lawrence

33,161
3
59
110

2

...And you've never generated any flames? – Kevin Vermeer Jan 17 '11 at 23:28
Not so far :) Mind you, I usually work on stuff in chassis, and push the temps up to 60C. – Adam Lawrence Jan 18 '11 at 21:55
1

@Kevin - Paper only catches fire above 230°C, remember the novel "451 Fahrenheit". Cardboard may be around that value. – stevenvh Aug 22 '11 at 08:29
@stevenvh Any self-respecting switcher usually turns itself off when something goes outside of its SOA (typically 110-130°C) so the risk of cardboard fire is low. – Adam Lawrence Aug 22 '11 at 15:29

score 4 · Accepted Answer · answered Jan 17 '11 at 10:49

4

For the high end, you could use a hacked sous vide cooker with a PID controller.

http://hackaday.com/2010/11/06/hacking-together-a-sous-vide-cooker/

answered Jan 17 '11 at 10:49

Toby Jaffey

28,836
19
98
150

Ugh. My college blocks "hackaday.com" as "Hacking/Cracking/Computer Crime"... :( – Thomas O Jan 17 '11 at 10:51

score 4 · Answer 3 · answered Jan 17 '11 at 11:43

4

Can you use an oven? Mine can be set to a low around 75 degrees C. I've done cheap temperature cycling tests before by quickly swapping a device between my oven and my refrigerator freezer. I'd just use a TC to measure the actual temperature as the oven readout may not be very accurate.

answered Jan 17 '11 at 11:43

bt2

3,804
2
26
28

I heard that people had success using convection ovens and PCBs for temperature testing. – AndrejaKo Jan 17 '11 at 16:11

score 2 · Answer 4 · answered Jan 17 '11 at 14:54

2

Heat gun / paint stripper with adjustable temperature control pointed into an enclosure around your PCB works for the high range, and Circuit Freeze will work on the low end (goes down to -62F).

answered Jan 17 '11 at 14:54

Dave

3,800
25
41

stevenvh · Answer 5 · 2011-08-24T13:00:29.020

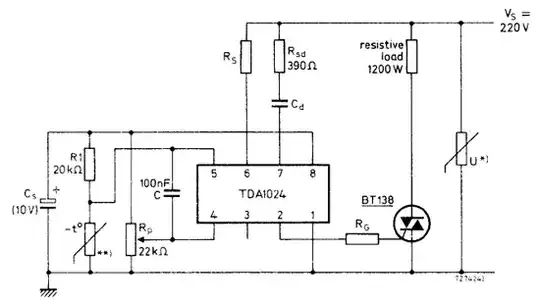

I once made a small oven to dry my photosensitive lacquer PCBs. It was basically a matrix of 1W resistors directly 230V AC powered. I mounted the resistors 1cm above a PCB so that the air could flow freely around them and the heat was distributed well without hot spots. This heater was temperature controlled by a (unfortunately long obsolete) TDA1024 + NTC temperature sensor.

TDA1024 application

The TDA1024 can be replaced by a transformerless power supply to feed a comparator. My thermostat was set at a fixed 50°C, but with a potmeter you can vary the temperature.

score 1 · Answer 6 · answered Jan 17 '11 at 22:47

When I was temperature testing an industrial design I used an old refrigerator; cut a hole in the door and used a heater to drive the temp up to 40C. It didn't smell particularly good but I imagine an insulated metal "box in a box" type design would work very well for your 75C test. Take a look around to see how people make casting furnaces and do something similar.
