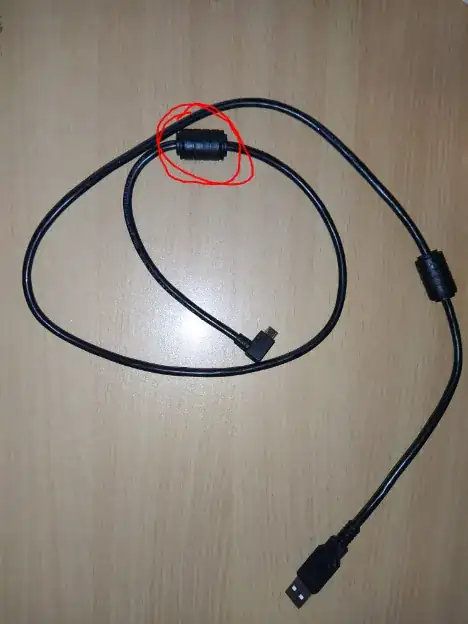

Maybe this community is not the right one for this question, but I was curious why some cable have these cylindrical parts (like the one in the photo.)
What are they and what is their purpose?
Asked
Active
Viewed 314 times
-1
-
They are ferrite beads. Also, Does the position of the Ferrite bead matter? – Andrew Morton Apr 16 '22 at 13:55
-
3As mentioned already, they might be ferrite beads to make cables radiate less and make them perform better, but they might also be just plastic lumps to make a garbage cable look more expensive and professional by faking the look it actually has ferrite beads. – Justme Apr 16 '22 at 14:15
2 Answers
0
That is a clamp-on ferrite high-frequency noise filter. Effectively, it is a thick-walled cylinder of iron ferrite that has been sliced down its axis to form two halves. The halves are in a plastic case that snaps around a cable, re-forming the cylinder. The ferrite acts as a wad of inductance, which works with the cable's natural capacitance to form a low-pass filter.
This is common on data cables and switching power supply cables to attenuate generated noise and the very-high frequency components of signals from radiating and causing interference with other devices.
AnalogKid
- 19,998
- 1
- 13
- 32
0
More specifically, it's a common mode choke. These chokes (filters) attenuate high frequencies that flow along all of the wires in the cable.
They are usually a band aid approach to meeting some EMC requirement. A well designed piece of electronics should not need them on external cables.
