I have 4 led strips of 12 V, I want to connect them to a 48 V PSU, is the schematic bellow correct? Can I connect them in series?

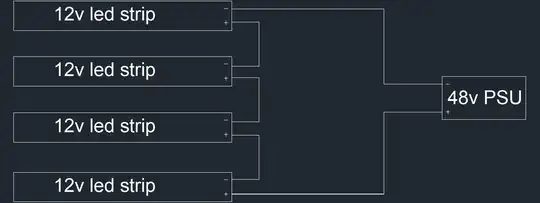

enter image description here

Or do I have to connect them using a step down buck to 12 V?

Thanks.
