I'm trying to get started with xschem and ngspice to simulate some circuits but have problems getting the programs installed.

I tried a very small circuit with 1 transistor, but get an error. After looking around on the web I still don't now how to fix it. In the manual I found that there should be external port names in the line of the .subckt but xschem doens't generated this, can that be a problem? I don't now if I need to add something extra in the schematic?

I will add picture of schematic, netlis and simulation error below.

Thanks in advance! I'm very new to this, so it is very possible it is a very stupid mistake. Kind Regards Faith

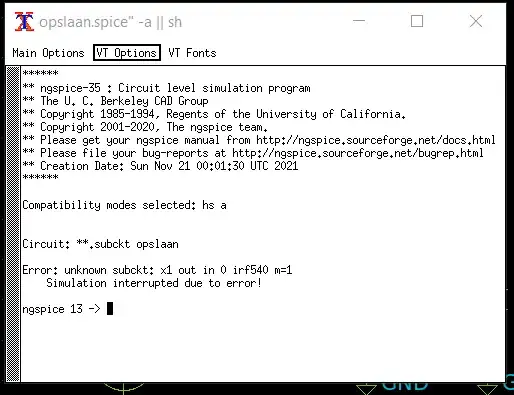

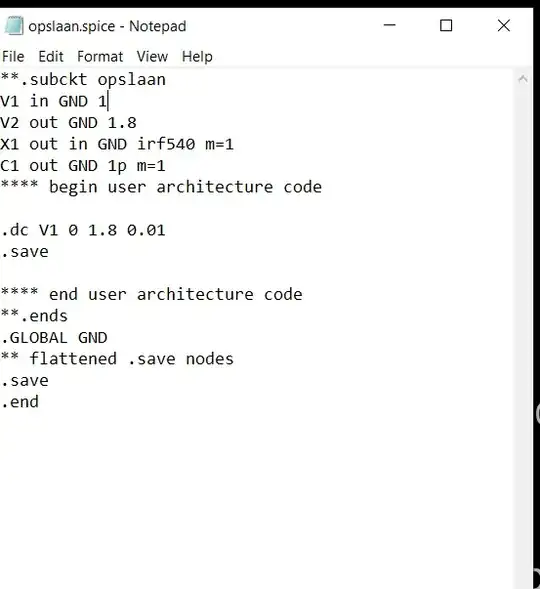

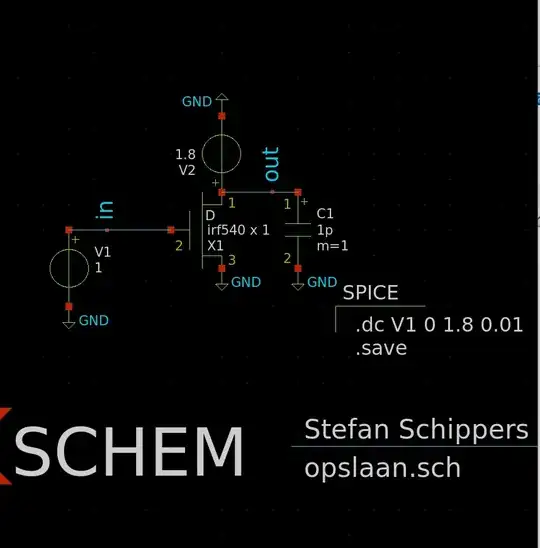

the error message the schematic The netlist generated by xschem

Faith
  • 11
  • 1
  • Looks like you need the .LIB file for the IRF540, and then add a .lib sihf540.lib as a SPICE command on the schematic . The file is available on Vishay's site here: https://www.vishay.com/mosfets/list/product-91021/tab/designtools-ppg/ – Ste Kulov Nov 23 '21 at 01:54
  • Super! Thank you! That fixed it! Thank you ! – Faith Nov 24 '21 at 14:55
