I got an ST LE33 and I am providing +5V between pin 2 and pin 3 as per specs. Checked with a multimeter.

I am reading +1V between pin 1 and pin 2, without any load, no capacitors. If I put a 1MOhm resistor, the voltage drops a bit.

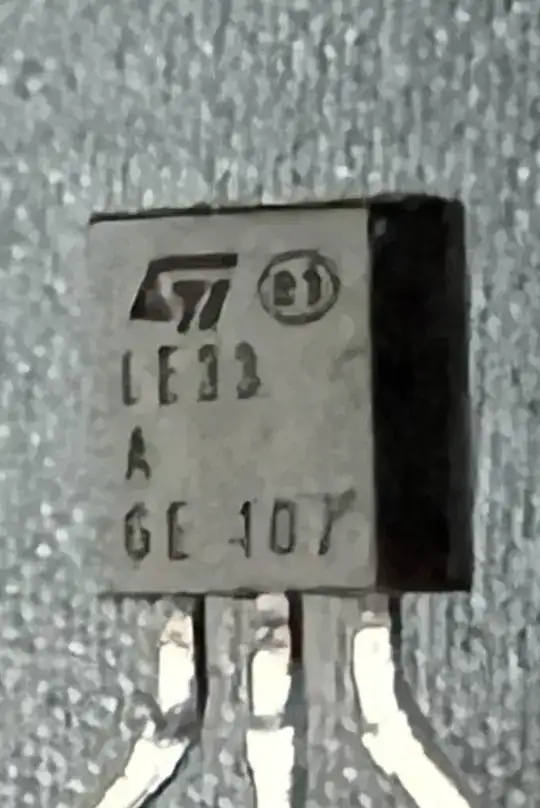

I took a picture of the guy in case the shop sent me the wrong item, but it reads LE33.

Am I doing something wrong?

ST LE33

Paperino
  • 215
  • 1
  • 7
  • 1
    Are you using the correct input and output capacitors? And what if you use a larger load like a 3k resistor for 1 mA draw. – Passerby Oct 21 '21 at 22:56

1 Answers1

3

no capacitors

Am I doing something wrong?

No capacitors.

Capacitors are required. See fig. 3 of the spec sheet: 100 nF across input, 2.2 uF across output.

I am providing +5V between pin 2 and pin 3

Just to make sure it's clear: pin 1 is the left-most pin in the picture you provided.
