Determining the order of succession for a 3-phase current

Question

On some exams the following question appeared that I am not capable of answering:

How to determine the order of succession of the 3 phases of a 3-phase power using as a load either: a) 2 lamps and 1 coil or b) 2 lamps and 1 capacitor.

I guess it has to do with the different kind of load a lamp and a coil or capacitor are but I am not sure how to use them to achieve the desired output.

Can someone think of a way to accomplish this task?

The current phase shift will tell which is the coil phase lag and cap phase lead by monitoring current and voltage — Tony Stewart EE75, Jun 05 '21 at 21:21

score 7 · Accepted Answer · answered Jun 05 '21 at 21:33

7

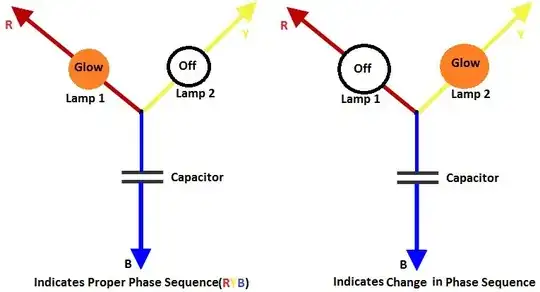

Two lamps and a capacitor (or inductor) can do the job: -

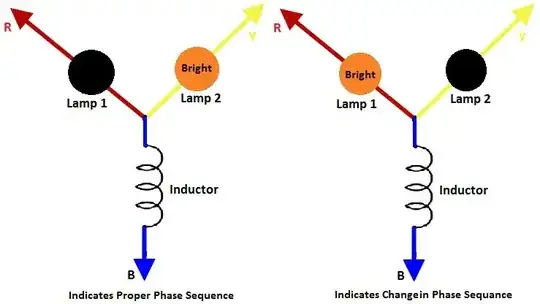

Inductor version: -

The maths is quite easy to follow; it's all about the phase shift produced by the capacitor (or inductor) and how it changes the voltage seen across each lamp.
