What is this symbol?

I couldn't decide whether it's a solder bridge or not.

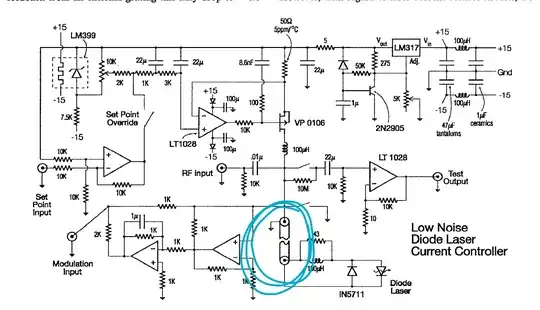

schematic of a Low noise diode laser current controller

Transistor
  • 175,532
  • 13
  • 190
  • 404
Exclose
  • 85
  • 6

2 Answers2

12

That's a coaxial cable. The "broken" section in the middle symbolizes "very long".

Marcus Müller
  • 94,373
  • 5
  • 139
  • 252
5

Given that it feeds the laser diode and must not be a short circuit the symbol seems to represent a coaxial cable connection. It looks a little childish because the perspective is wrong at one end or the other.

Transistor
  • 175,532
  • 13
  • 190
  • 404
  • it is not supposed to be a representation of a 3D object view ... because the RF connector symbols are used, it is unclear if the coax cable is soldered into the circuit, or if connectors are used – jsotola May 08 '21 at 00:03
