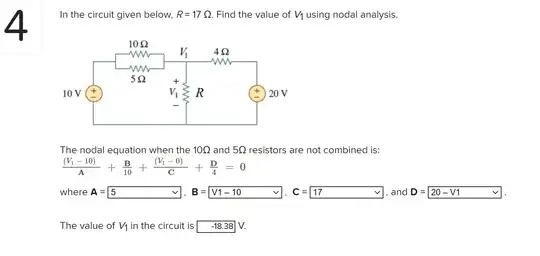

Am I correct? Or does D= V1-20, which allows the value of V1 to be positive?
Asked
Active
Viewed 83 times
1 Answers
0
Yep, V1 minus 20 in equation makes more sense.
If V1 was negative that would mean current is going into node from each branch which is impossible due to KCL.
Ernesto
