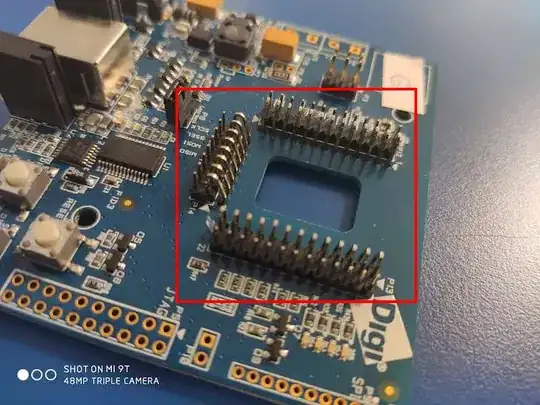

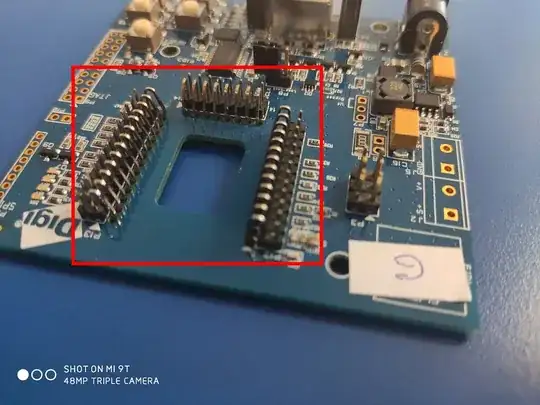

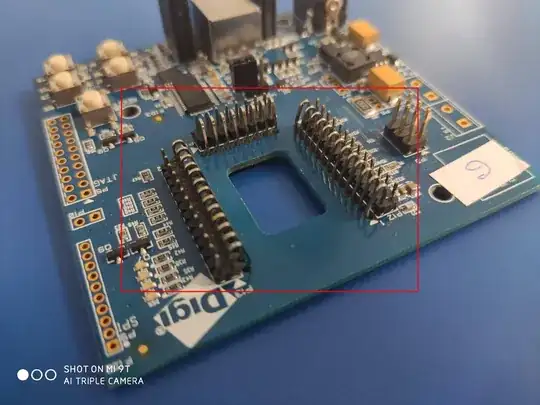

What type of headers are used by digi-international in the Development Kit of modules xbee 868lp. Are they commercial or are they developed by Digi?
Thanks and best regards, Fran Martin.
Asked
Active
Viewed 892 times
2
-
Can you also add a picture from the bottom side please? – Daniel K Jul 26 '19 at 12:35
-
1Looks like it might be for attaching a pcb with castellated holes on the edges – uglyoldbob Jul 26 '19 at 12:53
-
5They are SPRING SKT XBEE SMD 10 13P 5 8P. – Andrew Morton Jul 26 '19 at 12:53
-
1@AndrewMorton this should be an answer not a comment – Daniel K Jul 26 '19 at 13:33
-
@DanielK I do not know if they are commercial or developed by Digi. – Andrew Morton Jul 26 '19 at 13:35
-
your link lists digi as manufacturer, unfortunately none available and obsolete – Jasen Слава Україні Jul 27 '19 at 04:24
-
2Possible duplicate of Castellation metal loop connector – Jasen Слава Україні Jul 27 '19 at 04:32
-
@AndrewMorton I think they are developed by digi. – Daniel K Jul 27 '19 at 13:03
-
Thanks @Jasen - I was sure I'd seen them in a question here somewhere. – Andrew Morton Jul 27 '19 at 16:38
1 Answers
1
To preserve Andrew Morton's find if the comments get removed:
SPRING SKT XBEE SMD 10 13P 5 8P
And finally a link Jasen found to a possible duplicate question
The parts in question appear to be difficult to source.
