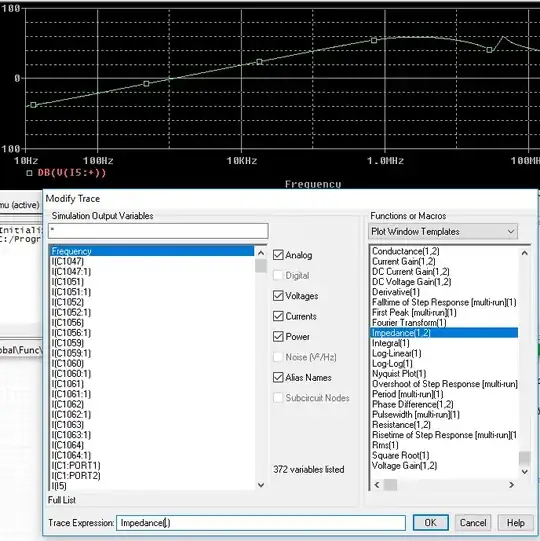

I want to get an impedance vs frequency graph for a capacitor in AC sweep analysis. I saw that there is an 'Impedance(1,2)' as shown in this picture in the Modify Trace window under Plot window templates:

Modify Trace window under Plot window templates

Can someone tell me how to use this and also if I can get Impedance vs. Frequency graph using this? If you know any other way to get the required graph please do share.

Greenonline
  • 2,109
  • 9
  • 26
  • 40
Rakshitha
  • 13
  • 3

1 Answers1

1

Impedance(Voltage,Current)

So for instance if you are trying to plot the impedance of a capacitor C1 vs. frequency, you would type in something like:

Impedance(V(C1:1), I(C1))

It is essentially just the same as typing in V/I manually, e.g. V(C1:1)/I(C1)
