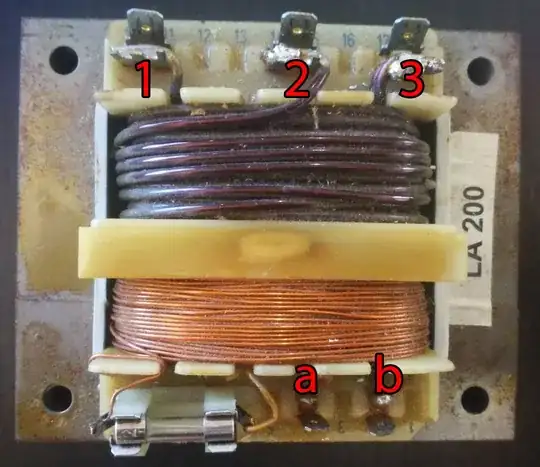

I'm searching for a transformer for my battery charger unit EBL 264-3. Because the manufacturer SCHAUDT doesnt want to provide the informations regarding the elements in their units I have contacted a guy that repairs the units. He said that the transformer has 26.4V 10A on the secondary coil (centertap). Does this mean 13.2V - 0 - 13.2V ?

enter image description here

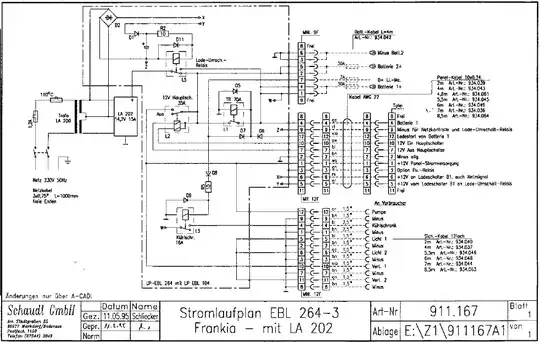

26.4V is a little bit off if I look at the schematics enter image description here

Thank you

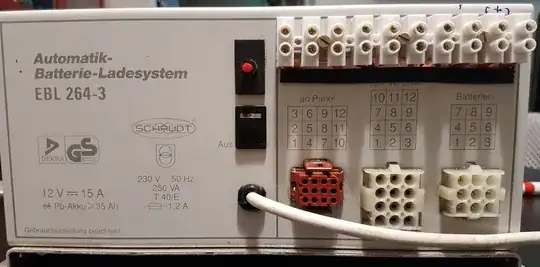

This is the charger EBL 264-3 enter image description here

Bob Bobovski
  • 11
  • 4
  • What’s the output voltage of the entire contraption? Is the transformer damaged? – winny Jul 11 '18 at 18:48
  • What's the problem? yes 13.2Vac (rms not pk) at rated VA with 1.4V drop on diode bridge. Convert rms to average?? – Tony Stewart EE75 Jul 11 '18 at 19:01
  • This is the motorhome charging unit. Sadly the lighting strike my house when the motorhome was connected to the grid (230V). The unit chrages the battery and provides 12V to the living area. As I made a couple of tests it looks like the transformer has had it. The fuse on the primary blows even when there is no load on the secondary. – Bob Bobovski Jul 11 '18 at 19:07
  • I just wanted to ask regarding the transformer, but here is a complete issue regarding the motorhome problem : https://electronics.stackexchange.com/questions/382878/mobile-home-battery-charger-transformer – Bob Bobovski Jul 11 '18 at 19:28
  • 3 is the center tap, it's pretty obvious. And yes, it's 26.4V center tapped. I think they may be using the same transformer for 24V battery chargers. – Janka Jul 11 '18 at 19:50
