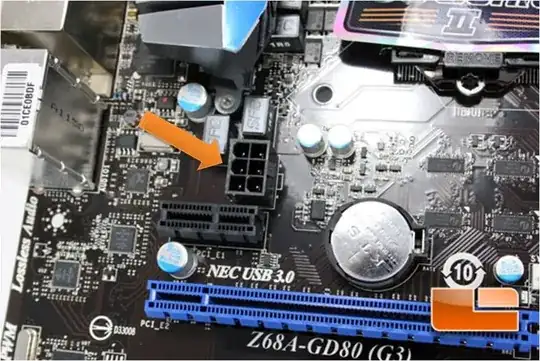

i am looking for a datasheet, or ideally an eagle library, that has a female 6 pin pcie power plug, like this:enter image description here

as easy as it seems, i cannot seem to find ANYTHING online.

parzival
  • 115
  • 1
  • 1
  • 13

1 Answers1

3

This is a Molex 45718-0002 connector -- refer to their mechanical drawings for the dimensions and recommended footprint.

There's also a right-angle version of this connector -- Molex 45558-0003.

  • The recommended footprint is the hole pattern required on the printed circuit board to accommodate the connector. – Barry Jan 02 '18 at 23:42
