I need a circuit to toggle an control line on a PSU. The existing control line turns the PSU OFF when pulled to GND, the PSU is ON when the control line is floating or between 2.5V to 5.5V. I want to toggle this from an external device that has a open collector output which pulls to GND, except I need it to be ON when pulled to GND instead of OFF. My current thought is to use the following circuit, will this work as I intend it too? is there a better way to do this? The circuit is used to disable the power supply on a schedule in order to save power for a solar/battery application so current draw need to be as low as possible. The Datasheet for the PSU states the input current for the control pin is -400uA, if this is sourced from an internal pullup, would that be enough to bias the PNP and pull up the base without needing the 10-30V connection and zener? Thanks, -jER

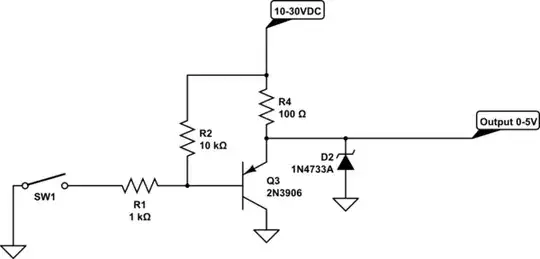

schematic

simulate this circuit – Schematic created using CircuitLab

JWilliams
  • 1
  • R4 is dissipating over 6 W when the transistor is off, you can make it much higher value. – Colin Feb 20 '19 at 09:23

2 Answers2

1

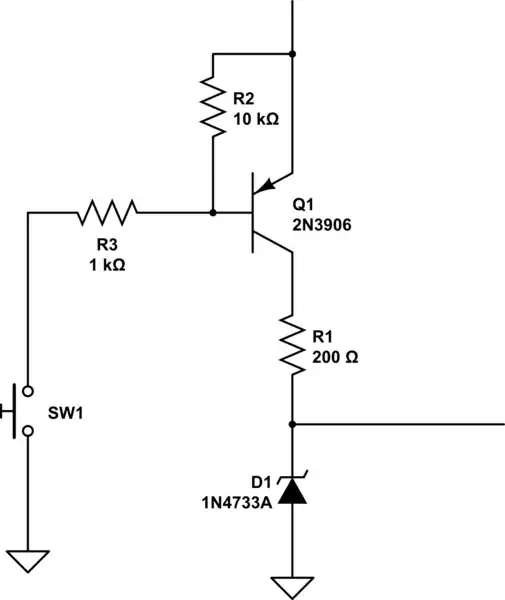

schematic

simulate this circuit – Schematic created using CircuitLab

Nikita Orlov
  • 11
  • 1
  • +1 For me the circuit is Ok: I'll just add a high value resistor ($\simeq\mathrm{M}\Omega$) just to be sure that the input of the downstream circuit does not appear floating. – Daniele Tampieri Feb 20 '19 at 08:02
0

The shown circuit is not the correct circuit topology to achieve what you want. You should replace the transistor with an NPN such as a 2N3904 with its emitter lead tied to GND.

Michael Karas
  • 57,328
  • 3
  • 71
  • 138
  • Your absolutely right, my mistake. I should have also changed the value of R4 from the default 100ohms to something that would allow just enough current to keep the zener regulating (1mA for that zener I think). Do you think this circuit is reasonable otherwise? or is there a more efficient way to do this? – JWilliams Nov 09 '17 at 16:54
