3

I think its some basic question but I'm really confused about MUX/DEMUX. Should I use 2-output demux's outs for in?

pikk
  • 133
  • 3

1 Answers1

5

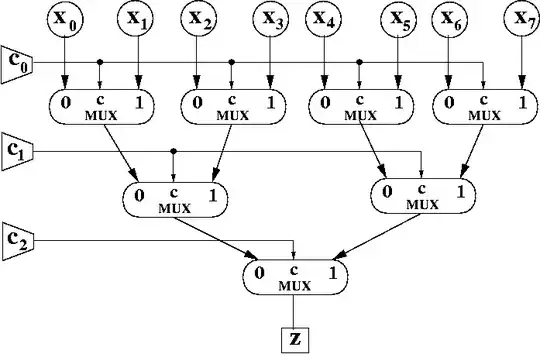

You can build the binary tree of muxes. First mux has outputs connected to 2 muxes, providing 4 outputs, next stage will have 4 muxes. Total you will have 7 muxes in 3 stages. Each of 3 address inputs is connected to inputs of corresponding stage. (Just revert the picture below upside down, so it were demuxes not muxes)

enter image description here
