Hijack/observe RS485 communication data by wire tapping?

Question

I have some Computer -> LED Matrix Screens system like this diagram:

         ---------------------------------------- RS485 (A / TxD- / RxD-)
COMP >      |       |      |      |        |
SERVER   ---------------------------------------  RS485 (B / TxD+ / RxD+)
          | |     | |    | |    | |      | |
          LED0    LED1   LED2   LEDn   Hijacker

Computer is sending data via the RS485 bus, LED matrix Screens (receivers) act to the RS485 command accordingly.

Now I would like to monitor/observe the raw data transmitting from computer server to my led screens through the wire. and record them into a file or something for debugging purposes.

How do I implement such a hijacker thing. Is it a computer? or oscilloscope? or other hardware? thanks in advance!

score 9 · Accepted Answer · edited Apr 23 '12 at 06:58

All the ways you suggested will work to some extent, but some sort of computer based device is liable to be best . RS485 uses 2 wire differential voltage signalling and will usually have enough drive to allow an extra receiver to be attached. "Monitor" is probably a better term than "hijacker" :-).

A computer will provide the most flexible result as you can analyse the data and also display in an oscilloscope type display on the computer screen if desired.

An oscilloscope will allow you to see that signals are being sent and the levels involved but will provide little other information. Some oscilloscopes may provide means to analyses data via an RS485 interface but that is not usually an oscilloscope based function.

Special purpose hardware can easily be built and you can buy analysers with RS485 interfaces - but in many cases it is simpler to use a general purpose computer with an RS485 interface. The actual interface to a computer could be an off the shelf commercial RS485 to USB converter or RS485 to RS232 converter or you could build something using a data acquistion system.

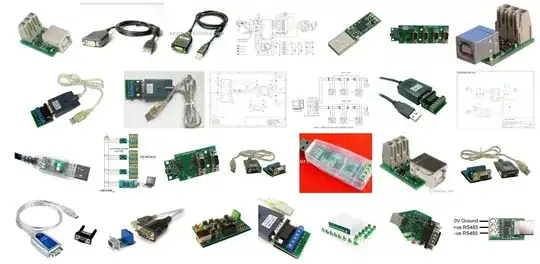

Many examples of RS485 to USB interfaces here:

enter image description here

DIY RS485 - USB interface from here - with PCB layout. The circuit is copied from the FTDI data sheet but he has added much comment and construction detail.

enter image description here

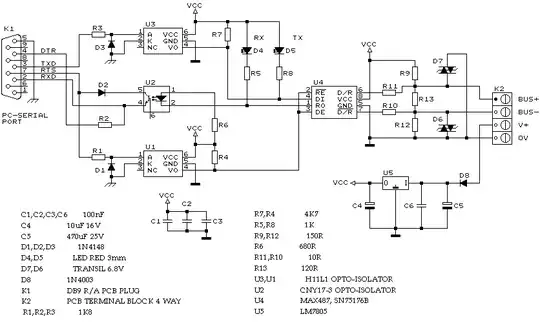

DIY RS232 / RS485 interface

enter image description here

Commercially available RS485 analyser
and here
and here , same as this
