I want to draw a state diagram of a Mealy synchronous state machine having a single input x, and a single output y, such that y is asserted if the total number of 1’s received is a multiple of 3.

But the problem is how to get a multiple of 3 only with one input and one output ??

Help appreciated

Rudy Al-3rowi
  • 1
  • 1
  • Does n`t this mean "If the input sequence is 1 then 1 then 1 assert Y" ? – Elbehery Dec 06 '16 at 11:41
  • Do you think the problem is to determine if a binary number is divisible by three or is it to determine if the number of 1s in a string adds up to 3, 6, 9, etc.? As an example 7 has three 1s in it but is not divisible by 3. Which is it? – owg60 Dec 06 '16 at 11:42
  • @owg60 not divisible it's multiple ( I don't the difference but it's not correct if it's divisible) the problem is how to draw it as for your Question the number of 1's is the matter for example 1 then 1 then 1 then y would be asserted cause it's multiple of 3 – Rudy Al-3rowi Dec 06 '16 at 11:52
  • Draw four state bubbles. Label the first one init, the second one, the third two, and the last three. From init transition to one if x is 1 otherwise stay in init. Do the same for one to two. Do the same from two to three but output is 1 on the transition. From three go back to one for x=1. Otherwise stay in three. If you post a picture, i'll let you know if it is right. – owg60 Dec 06 '16 at 12:02
  • @owg60 here you go ( https://drive.google.com/file/d/0B0dJBo-zapNqNmt6YUp1a1pGMWc/view?usp=sharing ) – Rudy Al-3rowi Dec 06 '16 at 12:31
  • @owg60 but when it goes from 2 to 3 how it return to 1 ?? – Rudy Al-3rowi Dec 06 '16 at 13:49
  • Did you answer your own question about going from 2 to 3 and returning a 1? – owg60 Dec 06 '16 at 15:17

1 Answers1

2

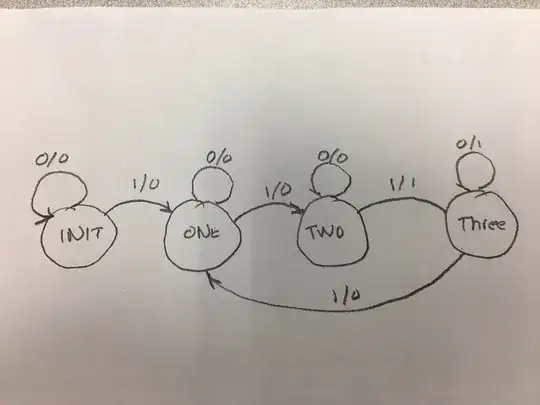

Your attempt is close. Here is one way to do it;

Mealy
