I know its probably been answered before, but I'm not really sure what to google to find the answer.
Asked
Active
Viewed 1,544 times
3
-
It's a mechanical outline drawing of an IC. – John D Jul 29 '16 at 17:04
-
5Probably OP wants to ask about the symbol marked in red rectangle. – Whiskeyjack Jul 29 '16 at 17:05
-
I'm not sure what you mean. That looks like numerical data to me.... I'm talking about the stuff in the red box fyi – James Oldiges Jul 29 '16 at 17:05
-
1Sorry, I misunderstood the question. – John D Jul 29 '16 at 17:08
-
Could be this one: http://www.gdandtbasics.com/maximum-material-condition/ – Mario Jul 29 '16 at 17:08
2 Answers
11
It indicates position tolerance in inches and (mm).
More info on this pdf.

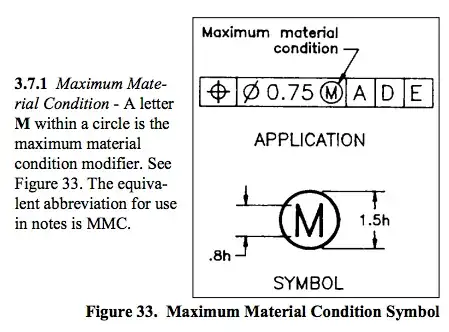

As comments in the question and this answer point out, the "M" in a circle stand for "Maximum Material Condition", as in largest pin width or smallest hole.
Wesley Lee
- 7,914
- 6
- 37
- 55
-
1
-
2The (M) is described a few pages later - it's the "maximum material condition". – Jul 29 '16 at 17:10
-
-
0
Which is a Drawing layout for the Machining, with the GD&T positioning tolerance The position tolerance M symbol represents Maximum material condition If there is L symbol That represents Least Material Condition.
Sundar
- 1
