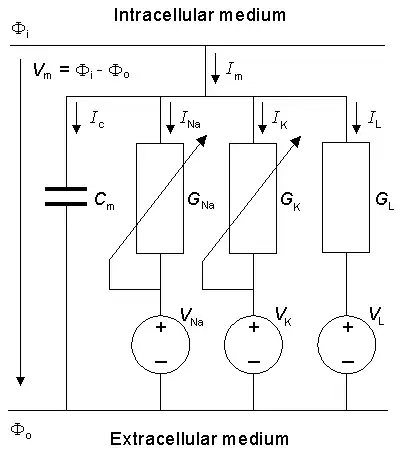

What kind of circuit elements are \$G_\mathrm{Na}\$ and \$G_\mathrm{K}\$ in this circuit diagram? Circuit Diagram
I understand that \$G_\mathrm{L}\$ is a conductance, but what about the arrows?

Dean
  • 8,448
  • 27
  • 72
  • 120
Alexander
  • 13
  • 1
  • 3

1 Answers1

2

They are variable conductances, think of them as potentiometers with the slider connected to one end. The currents Ina, Ik and Il depend on the values of the conductances and the voltages.

Leon Heller
  • 38,983
  • 2
  • 62
  • 96
  • Aha. Does it mean anything that the arrow goes into the actual wire symbol? I've only seen variable resistances with a disconnected arrow across before. – Alexander Dec 26 '11 at 20:34
  • It doesn't make any difference, there are several symbols for pots. That is a common way of depicting a variable resistance. – Leon Heller Dec 26 '11 at 20:37
