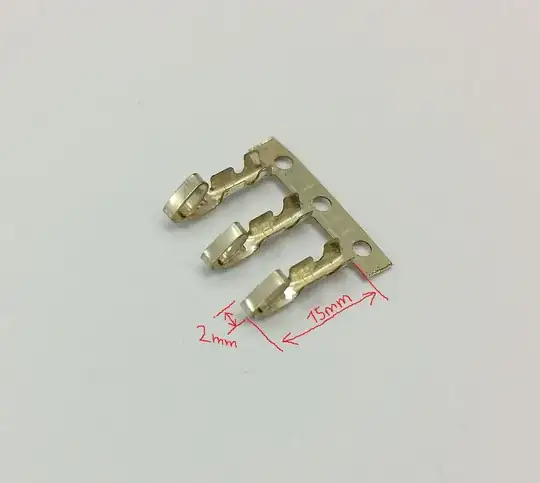

I found this type of pin in some 3 pin female connector. I want to buy it but I don't know what is name of this pin :) Any idea?
(I put dimensions approximatively)

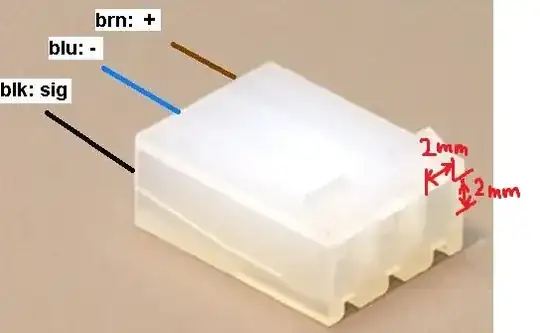

Here are dimensions of plastic connector:
Asked
Active
Viewed 97 times
0
-
What is the connector it belongs to? – rfkortekaas Jan 01 '16 at 18:28
-
http://archive.benchmarkreviews.com/images/reviews/power/Antec%20TP3-650/3pinfansensor.jpg ... – amikostb Jan 01 '16 at 18:29
-
Please post: a picture of an assembler connector, distance between the pins in the connector (pitch). – Nick Alexeev Jan 01 '16 at 18:49
-
@Nick Alexeev, I edited post, please refresh – amikostb Jan 01 '16 at 19:23
-
The picture of the 'plastic connector' does not match that of the connector shown in the link in your previous comment. They are two entirely separate examples. – CharlieHanson Jan 02 '16 at 00:36
1 Answers
2
It's most likely part of Molex's KK Series.
There are many alternatives made by other brands, and cheap generics, but that connector has perhaps been 'made famous' by its use as the default fan header in the ATX specification.
CharlieHanson
- 1,624
- 10
- 14
-
?? ATX fans dont have 2mm square pins! Oh that's the funnel that guides the pin! – Jasen Слава Україні Jan 01 '16 at 23:30
