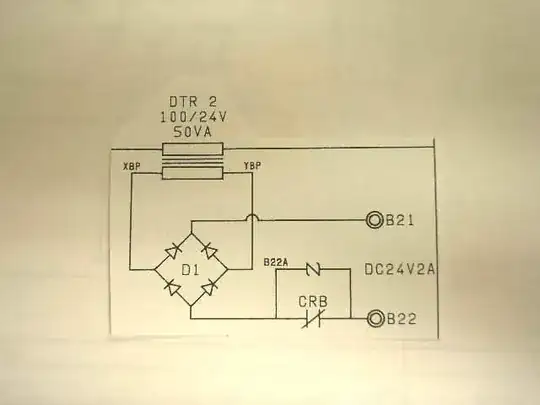

Does anyone know what the "Z" lying down symbol is that is in parallel with the normally closed relay contact CRB? I have searched several electrical symbol sites but no luck. The circuit is controlling 24 Vdc power for a motor brake. There is a back EMF arc when this contact opens so the symbol could represent a snubber which in this case may have failed. It will be this weekend before I can physically go in and look for this device. One other bit of info, this machine was built in Japan about 30 years ago.
Asked
Active
Viewed 648 times
2
David E.
- 61
- 6
1 Answers
4
I think that is a metal oxide varistor (MOV) or another TVS (Transient Voltage Supressor). Look at this symbol table.
The MOV symbol is near the middle of the table, with an image.
Martin Petrei
- 3,034
- 13
- 20
-
From that list, it looks more like their VDR symbol – PlasmaHH Nov 12 '15 at 15:45
-
@PlasmaHH Yes. Sorry, is a Metal Oxide Varistor! – Martin Petrei Nov 12 '15 at 15:46
-
@DavidE. If this is the correct answer, please mark it for future references. – Martin Petrei Nov 12 '15 at 16:02
-
@Martin Petrei. I do not know how to do that. Is that an action that I can perform in this forum? I will try to search that. – David E. Nov 12 '15 at 16:32
