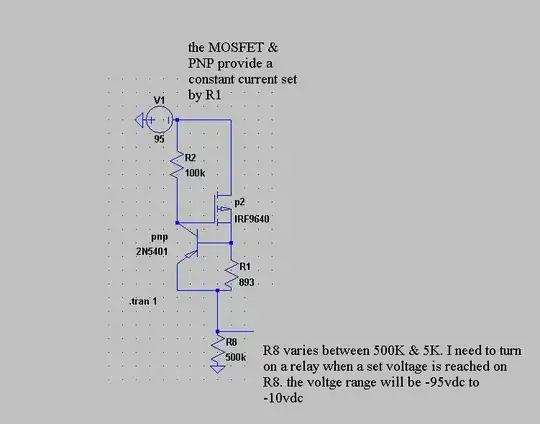

I have a circuit that has constant current but the load drops in resistance over time. I need to be able to shut off the circuit once a voltage level drop is reached. The voltage starts at -95vdc and reaches -10vdc when I would like the circuit to shut off. Any ideas would be great appreciated.
Asked
Active
Viewed 58 times
1
Greg d'Eon
- 3,827
- 4
- 24
- 50
pascal88
- 11
- 2
-
A comparator of some sort is needed. A simple solution is to use a TL431 shunt regulator which detects the voltage across R8 and remains "on"as long as |V_R8| > 10V . When it turns off there are a range of things it could do. Easiest is to have it operating a PNP with grounded emitter which then intereacts with the two existing transistors. – Russell McMahon Mar 21 '15 at 13:50
-
Thank you Russell. I ended up using an op-amp and a reference resistor divider. Works great! The TL431 seems simple so I will give that a try as well. Cheers – pascal88 Mar 22 '15 at 19:16
