When I look at many wiring diagrams, like this one:

enter image description here (source),

I see wires which need to be connected to multiple points. This suggests that the wire will require multiple three-way splices in order to connect to all the right places. How is this done? I found 3-way heatshrink adapters (like this one: http://www.genuinedealz.com/3-way-wire-splice-butt-connector-w-adhesive-heat-shrink-12-10-awg), but that doesn't seem like an elegant solution. What is the correct approach here?

Nick Alexeev
  • 38,181
  • 17
  • 100
  • 237
gcv
  • 191
  • 1
  • 1
  • 7

2 Answers2

5

You can use a few of these: -

enter image description here

See this website for detail.

Or one of these: -

enter image description here

See this website for detail.

Or one of these: -

enter image description here

See this website for detail.

Andy aka
  • 456,226
  • 28
  • 367
  • 807
4

The correct approach is to plan the wiring so that no more than two wires need to be connected to any terminal.

That's almost always possible and when it isn't - in the case of a star ground for instance - a proper terminal board with solder turret terminals, not wire splices, should be used to connect all the wires to the same point.

Here are a couple of examples:

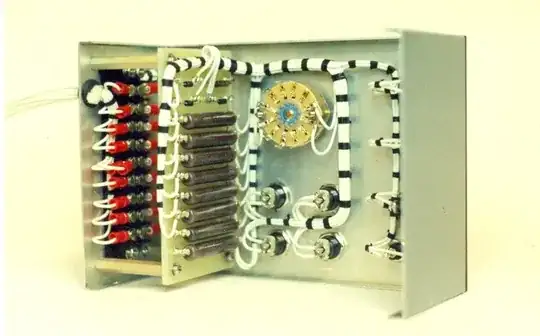

enter image description here

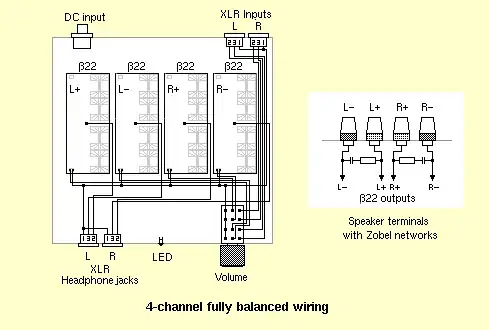

enter image description here
