On the Murata OKR-T/10, the data sheet specifies a 49kohm pulldown resistor but I've seen people using a 1k. Is there a more correct value or does anything 1k or above work just as well?

Nick Alexeev
  • 38,181
  • 17
  • 100
  • 237
Bradart
  • 45
  • 1
  • 6

3 Answers3

3

I would say that a 49kR is inside the chip and if you want to enable it you need to explicitly drive On/Off High (either by a transistor or a logic signal).

If you use a 1k resistor (pull-up) it will be always-on.

Don't forget input and output caps.

Tom L.
  • 8,059
  • 1
  • 22
  • 36
  • Perfect. Thank you. My understanding of pull up resistors was totally wrong. Now I think I get it. – Bradart Mar 11 '14 at 18:40
3

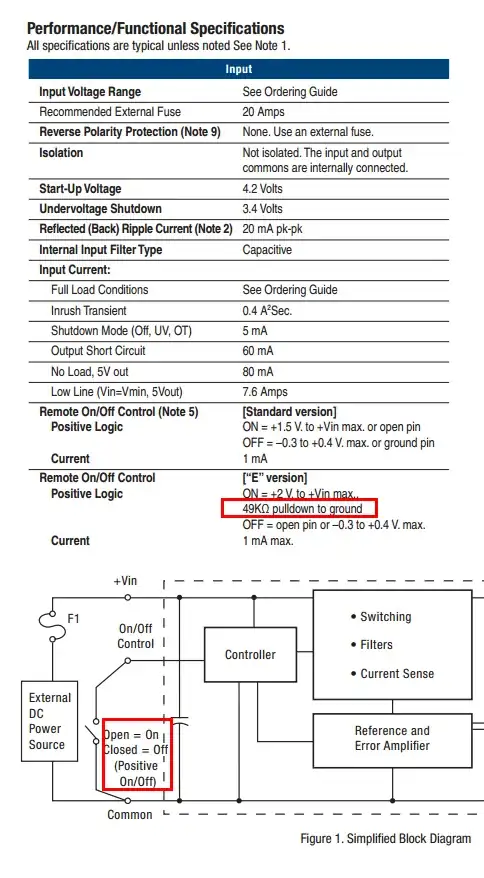

Here's what the data sheet says: -

enter image description here

The 49kohm is the internal resistance of the circuit, not an external resistor that has to be supplied - note the circuit diagram is suggesting a switch open or closed because that's the simple way to show it but resistors will do. Just don't go too large.

Also note the error in the specification - the picture says "open = on" and "closed = off" whereas the data in the table is implying the opposite - it says "OFF = open pin" but that is probably a typo.

Andy aka
  • 456,226
  • 28
  • 367
  • 807
  • Awesome. Thank you. I wasn't fully understanding pull up resistors but I think in getting it now. – Bradart Mar 11 '14 at 18:41
  • 2
    @andyaka: Note that the data sheet says "Standard Version: open= ON", but "E" version is open = OFF!! Only the "E" version has the 49K pull-down. (as I read it) – Peter Bennett Mar 11 '14 at 18:52
  • @PeterBennett you are absolutely right - hung by my own pictures. How painful. – Andy aka Mar 11 '14 at 20:14
0

FWIW I've never seen an 'E' version for sale, PN OKR-T/3-W12E-C, only the Standard version is available, PN OKR-T/3-W12-C.

I mention this because the answers seem based on the wrong version.
