Is there any Ubuntu 12.04-compatible, open-source 3D modeling software capable of creating a 2D cross-section?

Question

I've heard that Blender's boolean algorithm might do the trick, but was wondering if a CAD software had this functionality. Would want an end result similar to a stratigraphic cross-section.

ubfan1 · Answer 1 · 2013-08-29T19:45:53.040

0

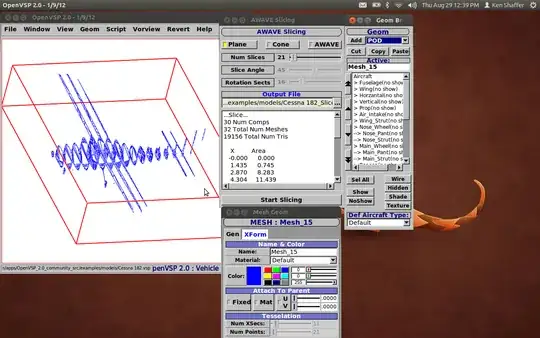

Take a look at OpenVSP (Open Vehicle Sketch Pad). You can slice up your solid and get cross sections. Image is of a Cessna 182 with 21 slices, along with some control panels. enter image description here

edited Aug 29 '13 at 19:45

answered Aug 29 '13 at 16:43

ubfan1

19,049

score 0 · Answer 2 · answered Aug 29 '13 at 17:06

Try FreeCAD

FreeCAD is a parametric 3D modeler. Parametric modeling allows you to easily modify your design by going back into your model history and changing its parameters. FreeCAD is open source (LGPL license) and completely modular, allowing for very advanced extension and customization.

enter image description here

For more information, and to download FreeCAD, visit their website.

^{Source:FreeCAD}

score 0 · Answer 3 · answered Aug 29 '13 at 19:37

0

alongside softwares in the site that Mitch suggests(http://opensourceecology.org/wiki/CAD_tools), I suggest MEDUSA4. it is not opensource but have free personal version.

answered Aug 29 '13 at 19:37

mohammadh montazeri

360
2
10
