Advanced Classical Mechanics/Continuum Mechanics

Let's write out the action

${\displaystyle S=\int dxdt{\mathcal {L}}\left(\phi ,{\frac {\partial \phi }{\partial x}},{\frac {\partial \phi }{\partial t}}\right).}$

We would like to find the function ${\displaystyle \phi (x,t)}$ that minimizes the action, so we let ${\displaystyle \phi =\phi _{0}+\eta }$ and calculate ${\displaystyle \delta S=\int dxdt\left[\left.{\frac {\partial {\mathcal {L}}}{\partial \phi }}\right|_{\phi _{0}}\eta +\left.{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial \phi }{\partial x}}\right)}}\right|_{\phi _{0}}{\frac {\partial \eta }{\partial x}}+\left.{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial \phi }{\partial t}}\right)}}\right|_{\phi _{0}}{\frac {\partial \eta }{\partial t}}\right].}$

Let integrate the last two items by parts and drop the boundary term because we assume that the value of ${\displaystyle \eta }$ vanishes on the boundary, we get

${\displaystyle \delta S=\int dxdt\eta \left[\left.{\frac {\partial {\mathcal {L}}}{\partial \phi }}\right|_{\phi _{0}}-{\frac {d}{dx}}\left.{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial \phi }{\partial x}}\right)}}\right|_{\phi _{0}}-{\frac {d}{dt}}\left.{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial \phi }{\partial t}}\right)}}\right|_{\phi _{0}}\right].}$

Because the function ${\displaystyle \eta }$ is completely arbitrary then for the value of ${\displaystyle \delta S}$ to vanish, the integrand itself must vanish and we obtain the Lagrange equation for a field in one spatial dimension:

${\displaystyle {\frac {d}{dx}}{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial \phi }{\partial x}}\right)}}+{\frac {d}{dt}}{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial \phi }{\partial t}}\right)}}-{\frac {\partial {\mathcal {L}}}{\partial \phi }}=0}$

that the actual motion must satify.

Each new dimension that the field lives in adds a new term of the form

${\displaystyle {\frac {d}{dz}}{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial \phi }{\partial z}}\right)}}}$

to the equations of motion.

Let's do an example of an electric field with a bunch of charges around. The energy density of an electric field with charges around is

${\displaystyle$ ???\quad \left({\mathcal {\phi }}\right)^{2}+\rho \phi }

We would like to minimize the integral of ${\displaystyle {\mathcal {E}}}$ over a volume so it is natural to take ${\displaystyle$ ???{\mathcal {L}}=} . We have

${\displaystyle {\mathcal {L}}={\frac {\epsilon _{0}}{2}}\left[\left({\frac {\partial \phi }{\partial x}}\right)^{2}+\left({\frac {\partial \phi }{\partial y}}\right)^{2}\right]+\rho \phi }$

and Lagrange's equations are

${\displaystyle$ ???\quad {\frac {d}{dx}}{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial \phi }{}}\right)}}+{\frac {d}{dy}}{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial }{}}\right)}}}

As a problem toward the beginning of the term, you found that the potential energy of a string could be given by

${\displaystyle V=\int {\frac {1}{2}}\lambda \left({\frac {\partial z}{\partial x}}\right)^{2}dx}$

where ${\displaystyle \lambda }$ is the string tension.

We can also write the kinetic energy of the string as an integral

${\displaystyle T=\int {\frac {1}{2}}\left({\frac {\partial z}{\partial t}}\right)^{2}dm=\int {\frac {1}{2}}\left({\frac {\partial z}{\partial t}}\right)^{2}\mu dx}$

where ${\displaystyle \mu =M/L}$, the mass per unit length of the string. We can combine these two expressions to get the Langrangian density

${\displaystyle {\mathcal {L}}={\frac {1}{2}}\left[\mu \left({\frac {\partial z}{\partial t}}\right)^{2}-\lambda \left({\frac {\partial z}{\partial x}}\right)^{2}\right].}$

Now let's apply Lagrange's equations to this Lagrangian density,

${\displaystyle {\frac {d}{dx}}{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial z}{\partial x}}\right)}}+{\frac {d}{dt}}{\frac {\partial {\mathcal {L}}}{\partial \left({\frac {\partial z}{\partial t}}\right)}}+-{\frac {\partial {\mathcal {L}}}{\partial z}}=0}$

${\displaystyle \mu {\frac {d}{dt}}{\frac {\partial z}{\partial t}}-\lambda {\frac {d}{dx}}{\frac {\partial z}{\partial x}}=0}$

${\displaystyle {\frac {\partial ^{2}z}{\partial t^{2}}}-{\frac {\lambda }{\mu }}{\frac {\partial ^{2}z}{\partial x^{2}}}=0}$

We can find a solution to this equation of the form, ${\displaystyle z(x,t)=f(x-vt)\left.\right.}$ where ${\displaystyle v=\pm {\sqrt {\lambda /\mu }}}$. Let's substitute this into the equation to get

${\displaystyle v^{2}f''-{\frac {\lambda }{\mu }}f''={\frac {\lambda }{\mu }}f''-{\frac {\lambda }{\mu }}f''=0}$

This solution is a wave travelling in the positive or negative x-direction. The function f can take any form whatsoever and it always travels at the same speed. This type of wave is called a 'simple wave'.

When a string vibrates it causes the air around it to vibrate as well; these vibrations travel through the air as waves that we can detect with the acoustic spectrometers attached to the sides of our heads. Our ears are sensitive to the pitch or frequency of the sound that the string produces so it is natural to look at the waves along a string as a sum of waves of a particular frequency, so we have ${\displaystyle z(x,t)=g(x)\cos \left(\omega t+\phi \right)\left.\right.}$ where φ is the phase of the wave.

Let's substitute this into the equation of motion to get

${\displaystyle -\omega ^{2}g(x)\cos \left(\omega t+\phi \right)-{\frac {\lambda }{\mu }}g''\left(\cos \omega t+\phi \right)=0}$ so ${\displaystyle g''=-{\frac {\omega ^{2}\mu }{\lambda }}g}$ and ${\displaystyle g=A\sin \left(\omega {\sqrt {\frac {\mu }{\lambda }}}x\right)+B\cos \left(\omega {\sqrt {\frac {\mu }{\lambda }}}x\right)}$

Now we must apply the boundary conditions of the string. Specifically, we have ${\displaystyle z(0,t)=z(L,t)=0}$ so

${\displaystyle g=A\sin \left({\frac {n\pi }{L}}x\right)}$

where n is an integer so we have a formula for the frequency of the wave in terms of the form of the oscillation along the string

${\displaystyle \omega =n{\frac {\pi }{L}}{\sqrt {\frac {\lambda }{\mu }}}}$

The general solution will allow a sum of different frequencies so

${\displaystyle z(x,t)=\sum _{n}A_{n}\sin \left({\frac {n\pi }{L}}x\right)\cos \left(n{\frac {\pi }{L}}{\sqrt {\frac {\lambda }{\mu }}}+\phi _{n}\right)}$

Let's suppose that we pluck the string so that a t=0, the string is not straight but it is not moving either, so we have ${\displaystyle \phi _{n}=0}$ in the formula above, and we get

${\displaystyle z(x,0)=\sum _{n}A_{n}\sin \left({\frac {n\pi }{L}}x\right).}$

We would like to find the coefficients ${\displaystyle A_{n}}$ that tell us what pitches the string will emit when it is released.

Let's take the integral of both sides times ${\displaystyle \sin \left({\frac {m\pi }{L}}x\right)}$ to get

${\displaystyle \int _{0}^{L}z(x,0)\sin \left({\frac {m\pi }{L}}x\right)dx=\int _{0}^{L}\sum _{n}A_{n}\sin \left({\frac {n\pi }{L}}x\right)\sin \left({\frac {m\pi }{L}}x\right)dx.}$

${\displaystyle =\int _{0}^{L}\sum _{n}{\frac {A_{n}}{2}}\left[\cos \left({\frac {(n+m)\pi }{L}}x\right)+\cos \left({\frac {(n-m)\pi }{L}}x\right)\right]dx=\int _{0}^{L}{\frac {A_{m}}{2}}dx={\frac {A_{m}L}{2}}.}$

Rearranging we have

${\displaystyle A_{m}={\frac {2}{L}}\int _{0}^{L}z(x,0)\sin \left({\frac {m\pi }{L}}x\right)dx}$

which defines the discrete Fourier transform.

As a problem toward the beginning of the term, you found that the potential energy of a string could be given by

${\displaystyle V=\int {\frac {1}{2}}\lambda \left[\left({\frac {\partial z}{\partial x}}\right)^{2}+\left({\frac {\partial z}{\partial y}}\right)^{2}\right]dxdy}$

where ${\displaystyle \lambda }$ is the surface tension.

We can also write the kinetic energy of the membrane as an integral

${\displaystyle T=\int {\frac {1}{2}}\left({\frac {\partial z}{\partial t}}\right)^{2}dm=\int {\frac {1}{2}}\left({\frac {\partial z}{\partial t}}\right)^{2}\mu dxdy}$

where ${\displaystyle \mu =M/A}$, the mass per unit area of the membrane. We can combine these two expressions to get the Langrangian density

${\displaystyle {\mathcal {L}}={\frac {1}{2}}\left[\mu \left({\frac {\partial z}{\partial t}}\right)^{2}-\lambda \left[\left({\frac {\partial z}{\partial x}}\right)^{2}+\left({\frac {\partial z}{\partial y}}\right)^{2}\right]\right]={\frac {1}{2}}\left[\mu \left({\frac {\partial z}{\partial t}}\right)^{2}-\lambda \left(\nabla z\right)^{2}\right]}$

If we apply Lagrange's equations we obtain,

${\displaystyle \mu {\frac {d}{dt}}{\frac {\partial z}{\partial t}}-\lambda {\frac {d}{dx}}{\frac {\partial z}{\partial x}}--\lambda {\frac {d}{dy}}{\frac {\partial z}{\partial y}}=0}$

${\displaystyle \mu {\frac {d}{dt}}{\frac {\partial z}{\partial t}}-\lambda \nabla ^{2}z=0}$

When analyzing a drum or something with boundary conditions, it is natural to look for solutions to these equations with the form ${\displaystyle z(x,y,t)=X(x)Y(y)g(t)}$ in Cartesian coordinates, ${\displaystyle z(r,\theta ,t)=R(r)f(\theta )g(t)}$ in cylindrical coordinates, or ${\displaystyle z(\theta ,\phi ,t)=Y(\theta ,\phi )g(t).}$ Generally you can pick the function g to vary harmonically in time and the solutions to the spatial dependence are known as harmonics. In Cartesian coordinates we get sines and cosines (the harmonic functions). In cylidrical coordinates, we get sines and cosines in the ${\displaystyle \theta }$-direction and Bessel functions in the radial direction. If your drum is the surface of a sphere, the solutions are called spherical harmonics: sines and cosines in the ${\displaystyle \phi -}$direction and polynomials of ${\displaystyle \cos \theta }$ in the other direction.

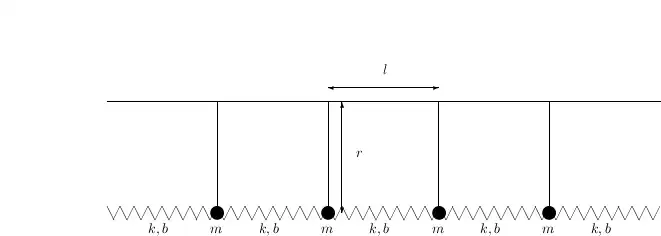

As a final example we will study a slinky hanging from a horizontal surface and the waves that can propagate along it. Let's first draw a picture to show what we are talking about

Let's use the variable ${\displaystyle \phi _{i}}$ to denote the angle that each pendulum makes with the vertical. Also let's restrict ourselves to the small-angle approximation. We can write the kinetic energy of each mass as

${\displaystyle T_{i}={\frac {1}{2}}mr^{2}{{\dot {\phi }}_{i}}^{2}}$

There are two sources of potential energy: gravity and the springs. The expression for gravity is straightforward we have

${\displaystyle V_{{\rm {gravity}},i}=-mgr\left(1-\cos \phi _{i}\right)\approx {\frac {1}{2}}mgr\phi _{i}^{2}.}$

The potential energy of the springs is a bit more complicated. First, we have to come up with a convention so that we don't double count the springs. Let's identify a spring with the mass to its left so we have

${\displaystyle V_{{\rm {spring}},i}={\frac {1}{2}}k\left\{r\left[\left({\frac {b}{r}}+\sin \phi _{i+1}-\sin \phi _{i}\right)^{2}+\left(\cos \phi _{i+1}-\cos \phi _{i}\right)^{2}\right]^{1/2}-l\right\}^{2}}$

Now let's take the small-angle approximation,

${\displaystyle V_{{\rm {spring}},i}\approx {\frac {1}{2}}k\left(b+r\phi _{i+1}-r\phi _{i}-l\right)^{2}={\frac {1}{2}}k(b-l)^{2}+kr(b-l)\left(\phi _{i+1}-\phi _{i}\right)+{\frac {1}{2}}kr^{2}\left(\phi _{i+1}-\phi _{i}\right)^{2}.}$

We can simplify this further. The first term is a constant; let's drop it. The second term sums to zero when one combines the contribution from every spring. The final term is

${\displaystyle V_{{\rm {spring}},i}\approx {\frac {1}{2}}kr^{2}\left(\phi _{i+1}-\phi _{i}\right)^{2}={\frac {1}{2}}kr^{2}l^{2}\left({\frac {\partial \phi }{\partial x}}\right)^{2}}$

where we have replaced ${\displaystyle \phi _{i}}$ with ${\displaystyle \phi (x_{i})}$.

The Lagrange density is given by

${\displaystyle {\mathcal {L}}={\frac {T_{i}-V_{i}}{l}}={\frac {1}{2}}{\frac {m}{l}}r^{2}{\dot {\phi }}^{2}-{\frac {1}{2}}{\frac {m}{l}}gr\phi ^{2}-{\frac {1}{2}}kr^{2}l\phi '^{2}}$

Let's apply Lagrange's equations to the Lagrange density to get the following equation of motion

${\displaystyle \mu {\ddot {\phi }}-\lambda \phi ''+\mu {\frac {g}{r}}\phi =0}$

where ${\displaystyle \mu =mr^{2}/l}$ and ${\displaystyle \lambda =kr^{2}l}$. This equation of motion is very similar to that of the stretched string but there is an extra term. Let's divide both sides by ${\displaystyle \mu }$ to get

${\displaystyle {\ddot {\phi }}-{\frac {\lambda }{\mu }}\phi ''+\omega _{0}^{2}\phi =0}$

where ${\displaystyle \omega _{0}^{2}=g/r}$ is the natural frequency of the hanging masses. This is known as the Klein-Gordon equation, and it describes the evolution of massive scalar field. If we let the spring constant ${\displaystyle k}$ go to zero, then ${\displaystyle \lambda }$ goes to zero as well and we have the simple equation for a pendulum.

${\displaystyle {\ddot {\phi }}+\omega _{0}^{2}\phi =0}$

To get an appreciation for the solutions, let's substitute a harmoncally varying wave

${\displaystyle \phi =A(x)\cos \omega t}$

to get

${\displaystyle -\omega ^{2}A-{\frac {\lambda }{\mu }}A''+\omega _{0}^{2}A=0}$ and ${\displaystyle A''=-{\frac {\mu }{\lambda }}\left(\omega ^{2}-\omega _{0}^{2}\right)A}$

If the frequency of the wave ${\displaystyle \omega }$ is greater than the natural frequency of the pendulum, the wave varies sinusoidally in space as well as time (it propagates along the slinky). On the other hand, low-frequency waves are damped, so the slung slinky acts as a high-pass filter.

The form of the equation above encourages us to use solutions of the form

${\displaystyle \phi =\cos \left(kx-\omega t\right)}$

with the dispersion relation

${\displaystyle k^{2}={\frac {\mu }{\lambda }}\left(\omega ^{2}-\omega _{0}^{2}\right).}$

The slung Slinky is related to another important equation of physics. Let's take the exact expression for the gravitational potential energy

${\displaystyle V_{{\rm {gravity}},i}=-mgr\left(1-\cos \phi _{i}\right)}$

The new Lagrange density is given by

${\displaystyle {\mathcal {L}}={\frac {T_{i}-V_{i}}{l}}={\frac {1}{2}}{\frac {m}{l}}r^{2}{\dot {\phi }}^{2}-{\frac {m}{l}}gr\left(1-\cos \phi \right)-{\frac {1}{2}}kr^{2}l\phi '^{2}}$

and the equation of motion is

${\displaystyle \mu {\ddot {\phi }}-\lambda \phi ''+\mu {\frac {g}{r}}\sin \phi =0.}$

This is known as the sine-Gordon equation (those physicists are really good punsters). This equation is no longer linear in the variable ${\displaystyle \phi }$ so it is much more difficult to solve than the Klein-Gordon equation. Specifically, we expect that the velocity of the wave will depend not only on the frequency but also the amplitude.

We can define our scale of time (${\displaystyle {\sqrt {r/g}}}$) and distance (${\displaystyle {\sqrt {\mu r/(g\lambda )}}}$) so that the equation takes the simpler form

${\displaystyle {\ddot {\phi }}-\phi ''+\sin \phi =0.}$

Let's look for solutions that have a fixed pattern travelling at a fixed velocity. This was not possible (except for a monochromatic wave) for the Klein-Gordon equation because of the dispersion. Here we have dispersion and non-linearity. Let's use

${\displaystyle \phi =A(x-vt)}$

to get

${\displaystyle v^{2}A''-A''+\sin A=0}$

so

${\displaystyle A''={\frac {\sin A}{1-v^{2}}}}$

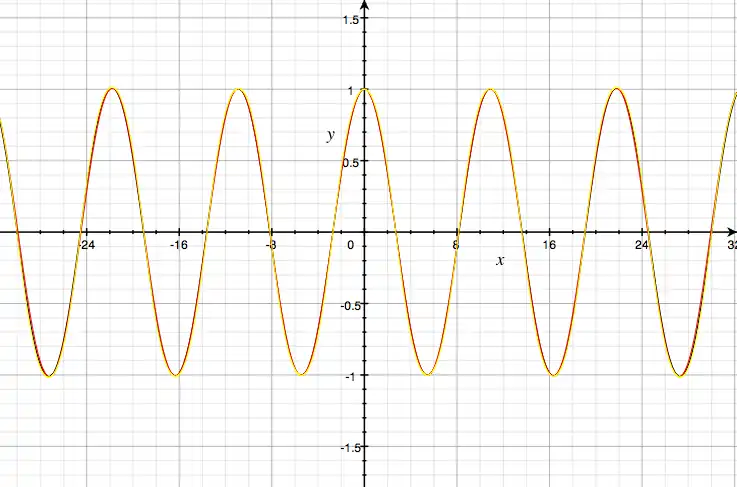

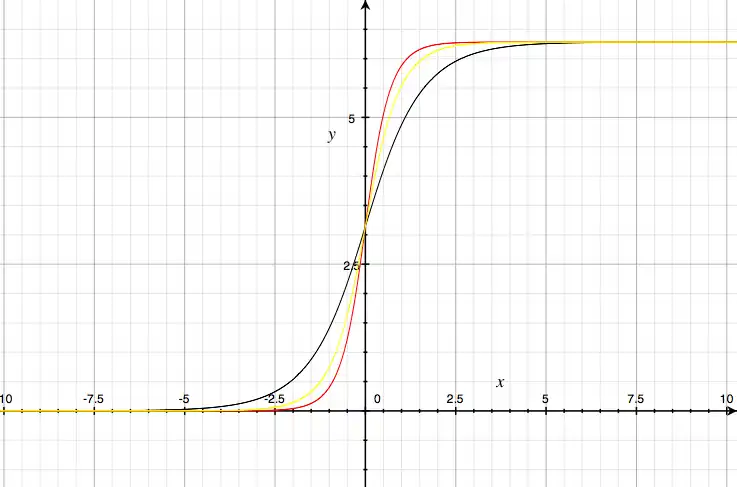

Here the value of velocity depends on the amplitude of the wave, ${\displaystyle v=2}$ for an amplitude of 0.01, ${\displaystyle v=1.91}$ for an amplitude of 1 and 1.64 for an amplitude of 2.
