Introduction
Guides you in taking apart the Slimlighter Super-LED for maintenance or just pure curiousity :)
Tools
-


-

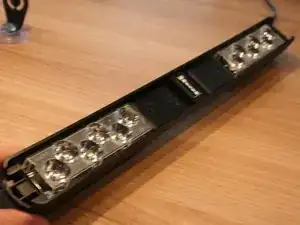

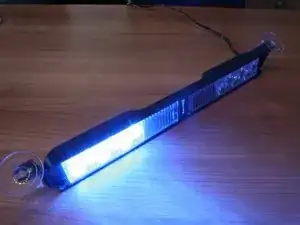

This is Whelen's second generation Slimlighter. Whilst the first generation had multiple 5mm LED's, this generation Slimlighter has 'only' 12 TIR6 style LED's.
 -

Enough chatter, let's take it apart :)

 -

 -


-

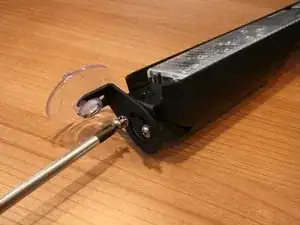

Optionally one can first take of the suctioncup brackets. They are held in place by two Philips screws.
 -

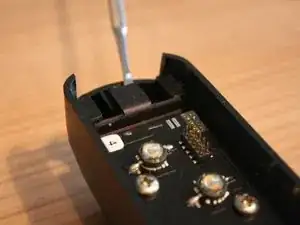

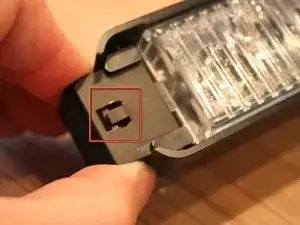

Next you can take off the retaining brackets. They are held back by a little notch that has to be lifted with a spudger. Repeat this step for the other side.
 -

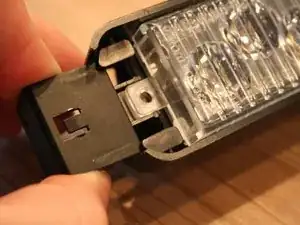

Once the notch is lifted pull the bracket away from the light as shown.

 -

 -


-

Once the brackets are released the light can easily be dissasembled. Begin by lifting the diffuser lens up as shown.
 -

One can also have clear lenses here, the procedure is the same.
 -

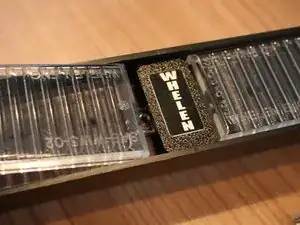

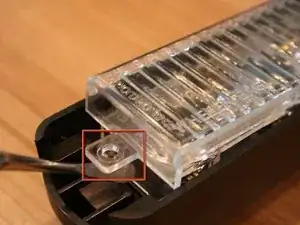

Note that the lens has a similar notch on the other side, underneath the Whelen logo. Carefully pull the lens out from underneath, don't force anything or it will break.

 -

 -


-

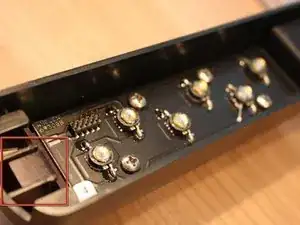

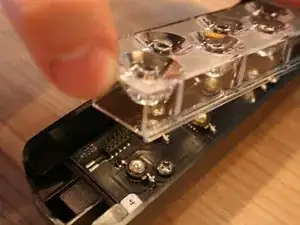

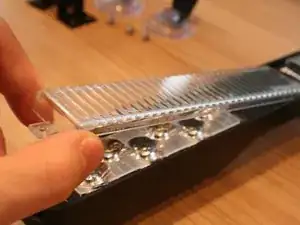

With the diffuser lenses removed the optics are exposed. They are not secured by anything so carefulle take them out as shown
 -

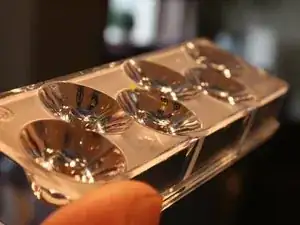

Nifty little optics here, kudo's to Whelen.
 -

Try activating the light now, see the differences with and without these optics

 -

 -


-

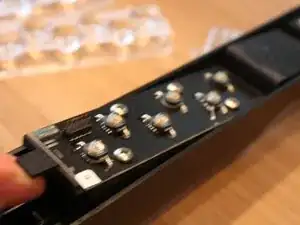

Now you can CAREFULLY take out the LED assembly. It's attached to a metal heat dissapating bracket. CAREFUL with the wiring. Note that the bracket is retained by the plastic housing. It might need some help before it gives way.

 -

 -


-

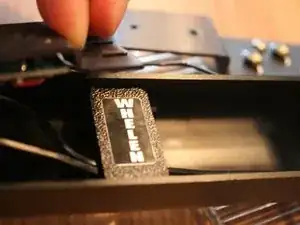

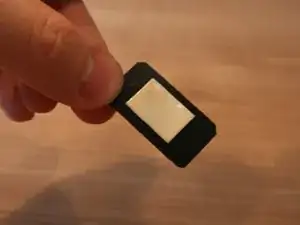

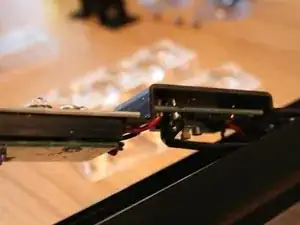

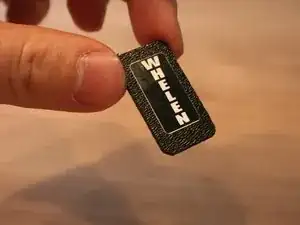

The wires are held back /retained by a stickon Whelen logo. The logo can easily be removed, just tear it off carefully.

 -

 -


-

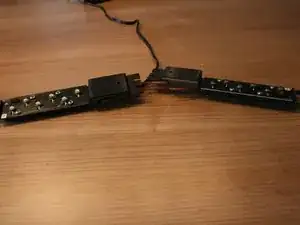

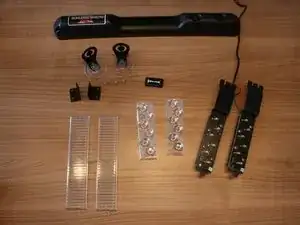

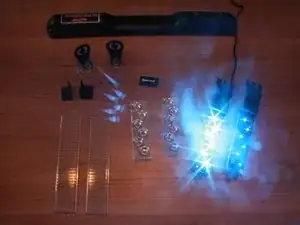

Once the Whelen logo tab is removed the light comes apart completley.
 -

Take out the two metal brackets holding the light.
 -

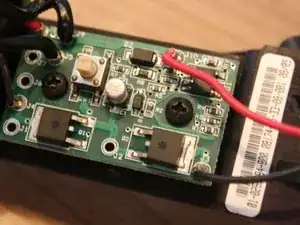

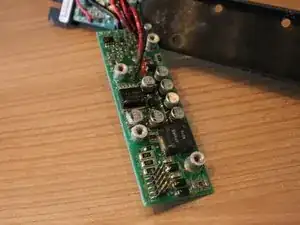

Note that one of the brackets holds (part of) the flasher assembly.

 -

 -


-

If desired, take out the six Philips screws to remove the LED circuit board from the bracket.
 -

Note that the rear circuit board is held back by the same screws.
 -

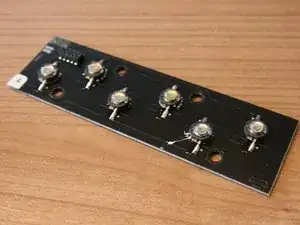

The LED board can easily be replaced by any other TIR6 board, any color (as far as I could check!)
 -

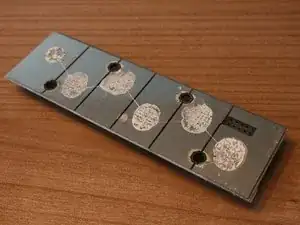

Note that there is cooling paste between the LED board and the bracket. Make sure you replace it.

 -
