VIA GO Teardown

Written By: Artur Huhtaniemi
Published: 02/02/25
  • Comments: 0

VIA GO Teardown

Published: 02/02/25

Teardown

Introduction

Explore internals of the device: layout, components and upgradability.

GIGABYTE VIA-GO motherboard, model MZBSWOP-W1

Intel Celeron N3010 (cpuid 406C4)

LPDDR3 1.35V SODIMM

integrated eMMC (SD) Kingston M52532 1AED76C6 32Gb

  1. I5T2AGJnh5EHXwXS
    I5T2AGJnh5EHXwXS
    STIgBxUFNn5SJ2V1
    UhtB1JcsqKVevknD

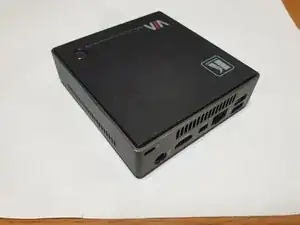

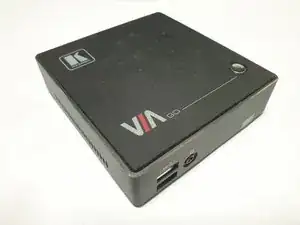

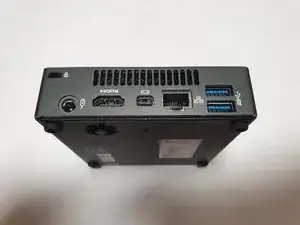

    • USB and audio ports at front and rest of I/O are at the back. power button is on top.

  2. BiJOMtVmZvBnB2Rm

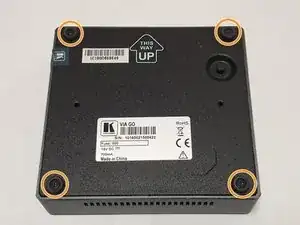

    • Remove four (phillips) screws on the bottom of the device, these are located inside of rubber feet.

  3. 1tEmHhoXTNrdqDyL
    1tEmHhoXTNrdqDyL
    gE1qRBC2aJkqwrEW
    JgpwAUIq56xJDlTC

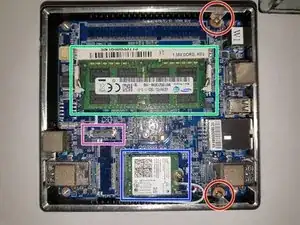

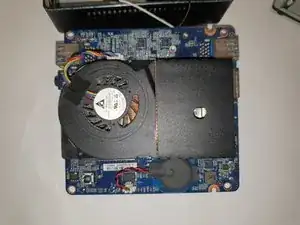

    • remove screws that hold motherboard in the case.

    • LPDDR3 slot (there is no internal memory).

    • M.2 slot with Intel 3160NGW (Dual-band AC-WiFi + BT)

    • 20-pin connector for external SATA hard drive.

  4. DJErfDlRGZQrWClc
    DJErfDlRGZQrWClc
    UsOiKXJ1WmZOLuC5
    3J1TDyN6GyHRI2Z2

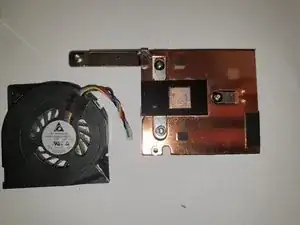

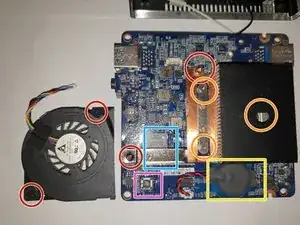

    • screws to remove fan assembly

    • screws to remove heatsink

    • RTC battery

    • eMMC (SD) chip

    • power button

  5. bcBAcYA4FdfMSfIA
    bcBAcYA4FdfMSfIA
    kQ2iHrWERBFEuUhS

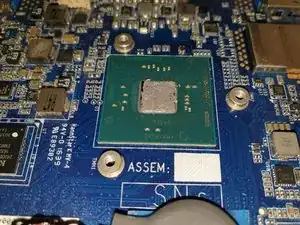

    • closeup of Intel N3010 SoC and eMMC chip.

  6. IVLHKPqvdVFgbKes
    IVLHKPqvdVFgbKes
    iedJfPfiesicCDP6
    snhTTboPL4AnxBXo

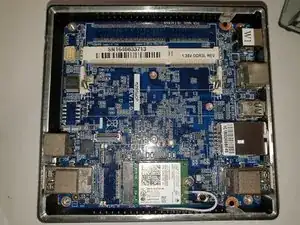

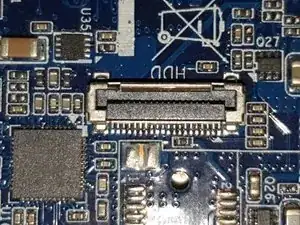

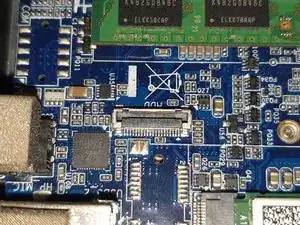

    • component overview. also closeup of 20-pin external sata connector.
